SEAT (MODEL G/H/J)
TS50XK 1984 (E) (E02 E16 E18 E21)

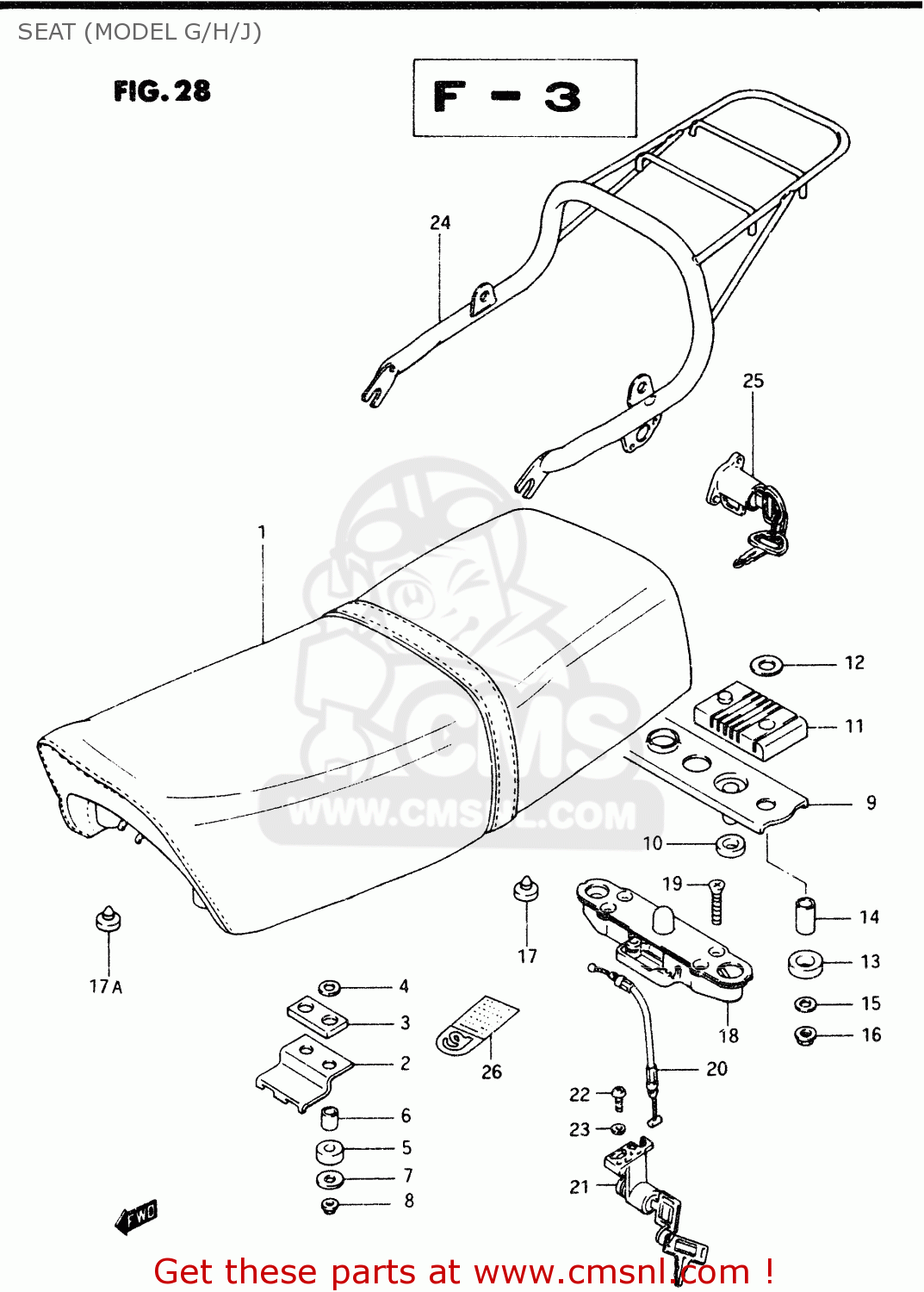

Seat (model g/h/j) diagram TS50XK 1984 (E) (E02 E16 E18 E21)
SEAT (MODEL G/H/J) TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
451001374154G
ref: 1-1
MODEL G
SEAT SET (BLUE)
€ 171.50
1-2
45100137714UZ
ref: 1-2
MODEL H
SEAT SET (BLUE)
€ 225.00
1-3
451001376154G
ref: 1-3
MODEL G E16,E18 ->45
SEAT SET (BLUE)
€ 0.00
1-4
45100136704UZ
ref: 1-4
MODEL H E16
SEAT SET (BLUE)
€ 0.00
1-5
45100137904UZ
ref: 1-5
MODEL H E18
SEAT SET (BLUE)
€ 0.00
1-6
4510034B014UZ
ref: 1-6
MODEL J
SEAT SET (BLUE)
€ 218.00
1-7
4510034B204UZ
ref: 1-7
MODEL J E16
SEAT SET (BLUE)
€ 218.00
2
4511913600
ref: 2
PLATE,SEAT HOOK FR
€ 3.00
3
4512513600
ref: 3
CUSHION,SEAT
€ 3.00
4
0832201063
ref: 4
WASHER
€ 2.00
5
0932426470
ref: 5
CUSHION
€ 0.00
6
0918006035
ref: 6
SPACER (6.1X8X12)
€ 2.50
7
0916006006
ref: 7
WASHER
€ 2.00
8
0831626063
ref: 8
NUT
€ 2.00
9
4521013700
ref: 9
PLATE,SEAT LOCK STRIKER
€ 12.50
10
4521313600
ref: 10
CUSHION
€ 1.50
11
4512613600
ref: 11
CUSHION, UPPER
€ 2.50
12
0916006006
ref: 12
WASHER
€ 2.00
13
4514723450
ref: 13
CUSHION,SEAT FR
€ 1.50
14
4521923450
ref: 14
SPACER,SEAT SUPPORT
€ 2.50
15
0821206201
ref: 15
WASHER
€ 1.50
16
0831626063
ref: 16
NUT
€ 2.00
17
0932110011
ref: 17
CUSHION
€ 3.00
17A
0932110012
ref: 17A
CUSHION
€ 3.00
18
4522013601
ref: 18
LOCK ASSY,SEAT STRIKER
€ 47.00
19
0211206306
ref: 19
SCREW,6X30
€ 2.50
20
4528013600
ref: 20
CABLE,SEAT LOCK
€ 8.00
21
9570013831
ref: 21
<-95700-13600-KEY
LOCK SET,SEAT
€ 79.50
22
0211205128
ref: 22
SCREW
€ 2.50
23
0832121057
ref: 23
LOCK WASHER
€ 2.00
24-1
4631013711
ref: 24-1
CARRIER
€ 55.50
24-2
4631013610
ref: 24-2
E16,E18
CARRIER
€ 0.00
24-3
4631013731
ref: 24-3
E21,E25
CARRIER
€ 37.00
24-4
4631013760
ref: 24-4
E22
CARRIER, SPORTS
€ 0.00
25
9570038840
ref: 25
LOCK SET,HELMET
€ 44.50
26
1196782000
ref: 26
E2
LABEL,ASBESTOS WARNING
€ 2.00
