FRAME COVER (MODEL M/R)
TS50XK 1984 (E) (E02 E16 E18 E21)

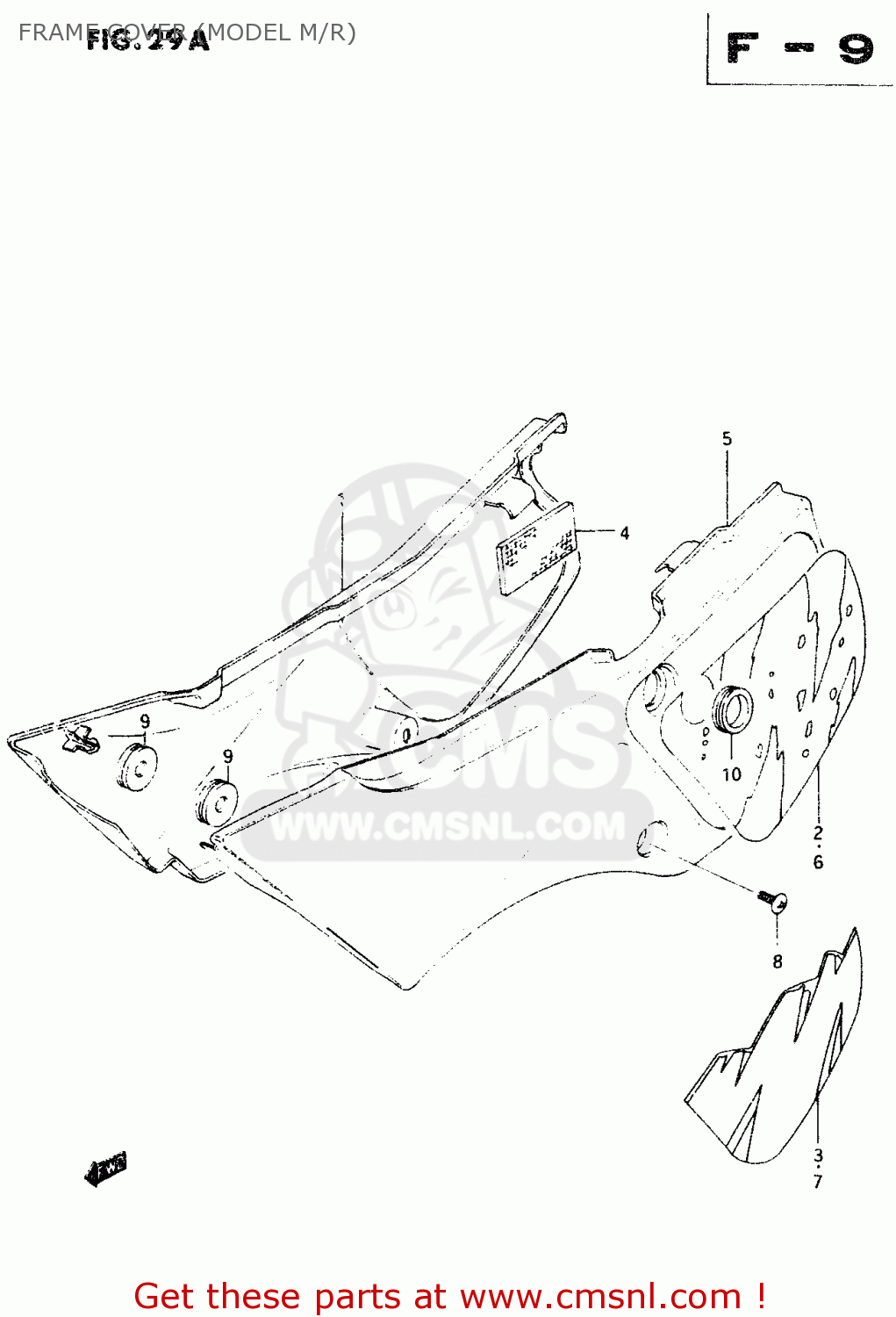

Frame cover (model m/r) diagram TS50XK 1984 (E) (E02 E16 E18 E21)
FRAME COVER (MODEL M/R) TS50XK 1984 (E) (E02 E16 E18 E21)
×
prices are in EUR
ref
part #
description
quantity
1-1
471111370014L
ref: 1-1
MODEL M
COVER,FRAME,R(WHITE)
€ 43.00
1-2
471111370021C
ref: 1-2
MODEL M
COVER,FRAME RH
€ 39.50
1-3
471111370025Y
ref: 1-3
MODEL M
COVER,FRAME,R(YELLOW)
€ 43.00
1-4
47111137000NF
ref: 1-4
MODEL R
COVER,FRAME,R(BLUE)
€ 45.50
1-5
471111370021C
ref: 1-5
MODEL R
COVER,FRAME RH
€ 39.50
2-1
68135136001DY
ref: 2-1
MODEL M FOR 14L
TAPE, FRAME COVER RH
€ 45.50
2-2
68135136001GJ
ref: 2-2
MODEL M FOR 21C
TAPE,FRAME COVER,R
€ 56.00
2-3
68135136001DV
ref: 2-3
MODEL M FOR 25Y
TAPE, FRAME COVER RH
€ 45.50
3-1
6813513710B7L
ref: 3-1
MODEL R FOR 019
TAPE,FRAME COVER,R
€ 17.50
3-2
6813513710B7M
ref: 3-2
MODEL R FOR 0NF
TAPE,FRAME COVER,R
€ 19.50
4-1
4712220410
ref: 4-1
HEAT SHIELD,FRAME COVER
€ 12.50
4-2
4712213700
ref: 4-2
SHIELD, HEAT RH
€ 26.00
5-1
472111370014L
ref: 5-1
MODEL M
COVER,FRAME,L(WHITE)
€ 42.00
5-2
472111370021C
ref: 5-2
MODEL M
COVER,FRAME LH
€ 39.50
5-3
472111370025Y
ref: 5-3
MODEL M
COVER,FRAME,L(YELLOW)
€ 42.00
5-4
47211137000NF
ref: 5-4
MODEL R
COVER,FRAME,L(BLUE)
€ 45.50
5-5
472111370021C
ref: 5-5
MODEL R
COVER,FRAME LH
€ 39.50
6-1
68145136001DY
ref: 6-1
MODEL M FOR 14L
TAPE, FRAME COVER LH
€ 44.00
6-2
68145136001GJ
ref: 6-2
MODEL M FOR 21C
TAPE, FRAME COVER LH
€ 51.00
6-3
68145136001DV
ref: 6-3
MODEL M FOR 25Y
TAPE, FRAME COVER LH
€ 44.00
7-1
6814513710B7L
ref: 7-1
MODEL R FOR 019
TAPE,FRAME COVER
€ 17.50
7-2
6814513710B7M
ref: 7-2
MODEL R FOR 0NF
TAPE, FRAME COVER LH
€ 16.50
8
0913606002
ref: 8
SCREW(6X12)
€ 2.50
9
0932008018
ref: 9
CUSHION
€ 4.00
10
4552204700
ref: 10
GROMMET,SEAT LOCK HOLE
€ 4.00
