BACKREST

VL800 BOULEVARD C50 2006 (K6) USA (E03)

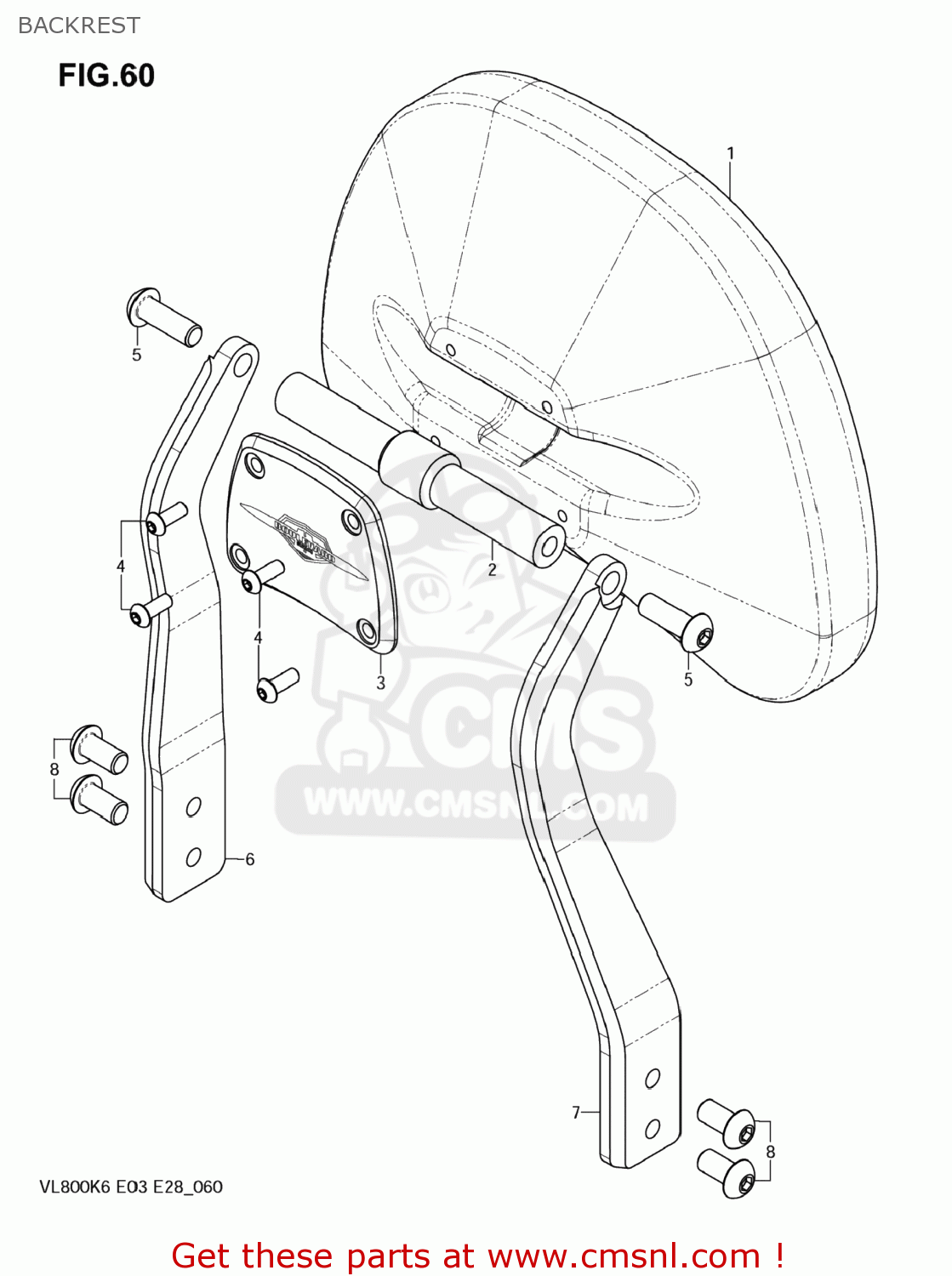

Backrest diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

BACKREST VL800 BOULEVARD C50 2006 (K6) USA (E03)
BACKREST VL800 BOULEVARD C50 2006 (K6) USA (E03)
BACKREST VL800 BOULEVARD C50 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity

990A075039TRG
ref:
BACKREST CHRM S
990A075039TRG
€ 244.00

990A077059TRG
ref:
BACKREST ASSY K9
€ 0.00
1
990A075039001
ref: 1
PAD ASSY
€ 0.00
1A-1
990A075039008
ref: 1A-1
.PAD COVER
€ 0.00
1A-2
990A075059001
ref: 1A-2
BLVD T BREST CV
€ 21.00
2
990A075039002
ref: 2
CROSSBAR
€ 0.00
3
990A075039003
ref: 3
BACK PLATE
€ 0.00
4
990A075039004
ref: 4
SCREW, M6X1.0X20
990A075039004
€ 1.00
5
990A075039005
ref: 5
SCREW, M10X1.5X25
€ 0.00
6
990A075039006
ref: 6
UPRIGHT, LH
€ 0.00
7
990A075039007
ref: 7
UPRIGHT, RH
€ 0.00
8
990A075012001
ref: 8
SCREW, M10X1.5X20
990A075012001
€ 1.50
9
990A075010001
ref: 9
BACKREST MOUNT PLATE, LH
€ 0.00
10
990A075010002
ref: 10
BACKREST MOUNT PLATE, RH
€ 0.00
10A-1
990A075072001
ref: 10A-1
C50T BKRST PLT
€ 82.50
10A-2
990A075072002
ref: 10A-2
C50T BKRST PLT
€ 82.50
11
990A075010003
ref: 11
SPACER, 19ODX8.5IDX6.5T
€ 0.00
11B
990A075071003
ref: 11B
C50T BKRST BOLT
€ 16.50
11A-1
990A075072003
ref: 11A-1
C50T 2X6.5MM SP
€ 9.50
11A-1
990A075072004
ref: 11A-1
C50T 2X10.5MM S
€ 9.50
12
990A075009001
ref: 12
SADDLEBAG SUPPORT, LH
€ 0.00
13
990A075009002
ref: 13
SADDLEBAG SUPPORT, RH
€ 0.00
13A-1
990A075071001
ref: 13A-1
C50T SDLBAG SPT
€ 52.00
13B-1
990A075071004
ref: 13B-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 13.00
13A-2
990A075071002
ref: 13A-2
C50T SDLBAG SPT
€ 52.00
13B-2
990A075071005
ref: 13B-2
C50T 2X19MM SPA
€ 13.00
14
990A077019001
ref: 14
SADDLEBAG ASSY, LH
€ 0.00
14A
990A077043001
ref: 14A
C50T SDLBAG K9&
€ 274.00
15
990A077019002
ref: 15
SADDLEBAG ASSY, RH
€ 0.00
15A
990A077043002
ref: 15A
C50T SDLBAG K9&
€ 274.00
16
990A077019003
ref: 16
BOLT, M8X1.25X85
€ 0.00
17
990A077020004
ref: 17
TOPHAT WASHER, SADDLEBAG
€ 0.00
18
990A077019HDW
ref: 18
C50T SADDLEBAG
€ 21.00
19
990A079006
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
20
990A077020
ref: 20
BLVD SADDLBAG E
€ 15.00
