FRONT MASTER CYLINDER (MODEL K6)

VL800 BOULEVARD C50 2006 (K6) USA (E03)

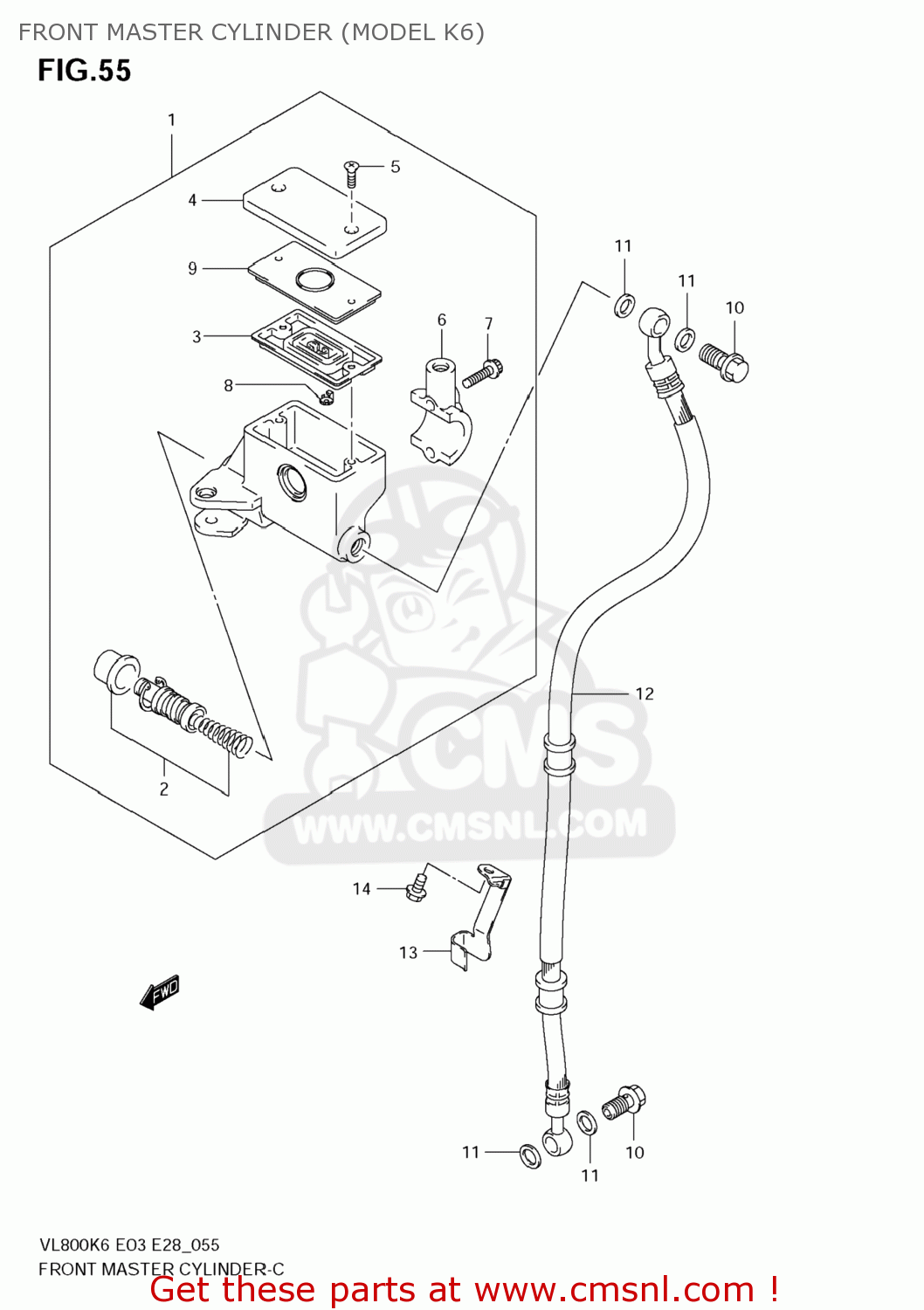

Front master cylinder (model k6) diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960010F50
ref: 1

CYLINDER ASSY,FR MASTER

€ 238.00

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

5966749460
ref: 3

5966749460

5966910F00
ref: 4

CAP

€ 59.50

0212204127
ref: 5

SCREW

€ 2.00

5967138AA0
ref: 6

HOLDER

€ 51.50

0713006207
ref: 7

BOLT

€ 3.50

5966448B00
ref: 8

PROTECTOR

€ 8.00

5966841C00
ref: 9

PLATE,DIAPHRAGM

€ 8.00

0936010062
ref: 10

BOLT UNION

€ 5.00

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

5948041F01
ref: 12

HOSE,FR BRAKE

€ 107.50

5926641F00
ref: 13

CLAMP,FR BRAKE HOSE UPR

€ 9.50

015500612B
ref: 14

BOLT

€ 2.50
