ELECTRICAL (MODEL K9 E33)

VL800 BOULEVARD C50 2006 (K6) USA (E03)

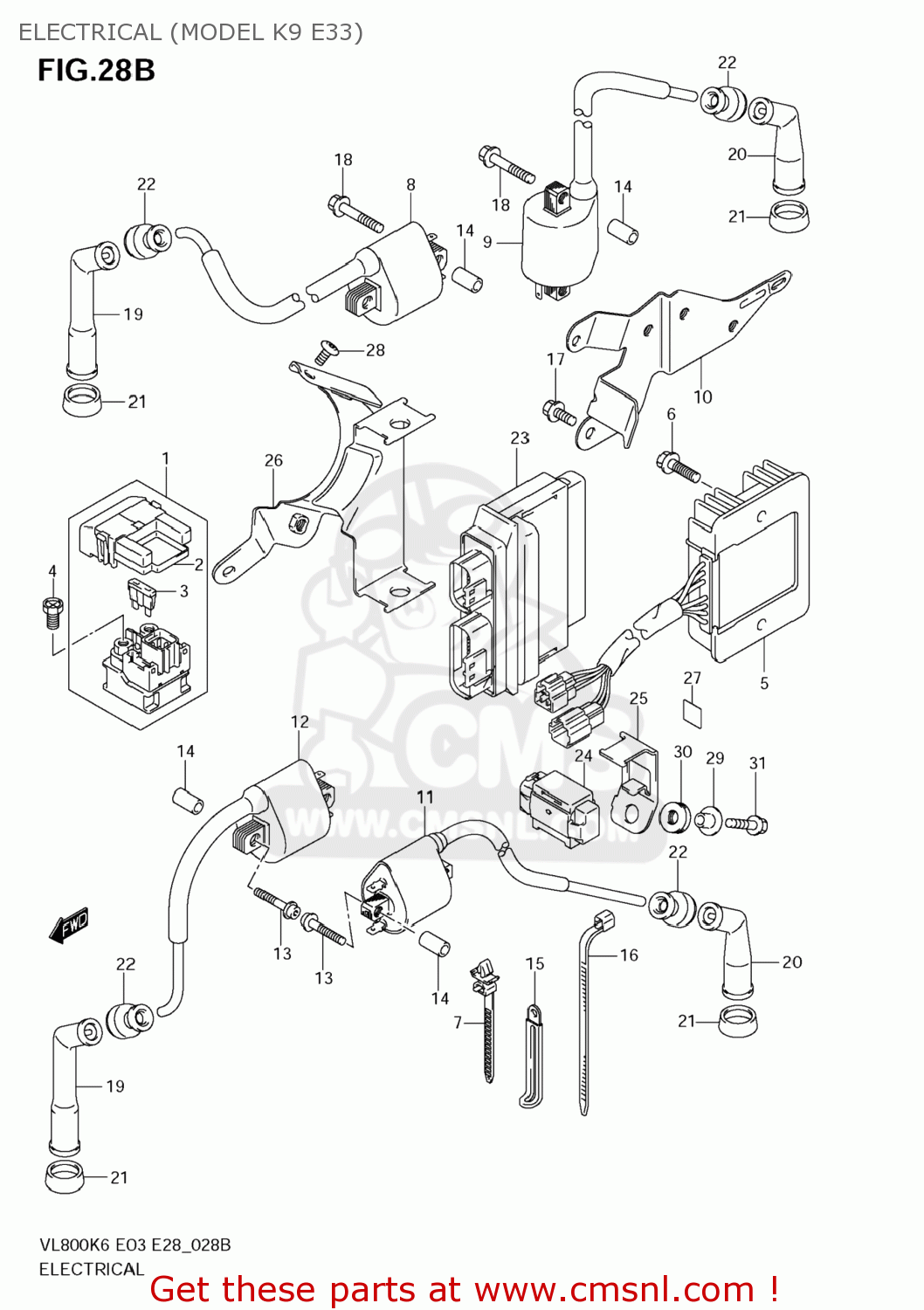

Electrical (model k9 e33) diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

ELECTRICAL (MODEL K9 E33) VL800 BOULEVARD C50 2006 (K6) USA (E03)

ELECTRICAL (MODEL K9 E33) VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180021E20
ref: 1

RELAY ASSY,STARTING MOTOR

€ 69.00

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280041F11
ref: 5

RECTIFIER ASSY

€ 268.50

6

021620620B
ref: 6

SCREW

€ 2.00

7

0940711402
ref: 7

CLAMP(L:90)

€ 2.50

8

3341039G00
ref: 8

COIL ASSY,IGNITION RR

€ 73.00

9

3341039G10
ref: 9

COIL ASSY,IGNITION RR

€ 73.00

10

3341439G00
ref: 10

BRACKET,IGNITION COIL RR

€ 9.00

11

3342039G00
ref: 11

COIL ASSY,IGNITION FR

€ 72.50

12

3342041F10
ref: 12

COIL ASSY,IGNITION

€ 74.00

13

0910605033
ref: 13

BOLT(5X35)

€ 2.50

14

0918006195
ref: 14

SPACER(6.4X10X18)

€ 3.50

15

0940406433
ref: 15

CLAMP(L:80)

€ 3.00

16

0940719401
ref: 16

CLAMP(L:190)

€ 2.00

17

015470610A
ref: 17

BOLT

€ 2.00

18

015470635A
ref: 18

BOLT

€ 3.00

19

3351011410
ref: 19

CAP,SPARK PLUG

€ 24.50

20

3351038B00
ref: 20

CAP,SPARK PLUG

€ 21.50

21

3354147D00
ref: 21

SEAL,SPARK PLUG

€ 7.00

22

3354238B00
ref: 22

SEAL,HIGH TENSION CORD

€ 4.50

23

3292039GC0
ref: 23

CONTROL UNIT,FI

€ 868.00

24

3396006G10
ref: 24

SENSOR ASSY,FUEL CUT

€ 75.00

25

3396141F00
ref: 25

BRACKET,FUEL CUT SENSOR

€ 4.00

26

4488043H00
ref: 26

BRACKET,FI CONTROL UNIT

€ 18.00

27

9442913E00
ref: 27

CUSHION,CABLE GUIDE

€ 2.00

28

0913906108
ref: 28

SCREW(6X12)

€ 3.00

29

0918006325
ref: 29

SPACER(6.2X8.4X6.9)

€ 3.00

30

0932006017
ref: 30

CUSHION

€ 3.00

31

015470616A
ref: 31

BOLT

€ 2.00
