OIL PUMP
VL800 BOULEVARD C50 2006 (K6) USA (E03)

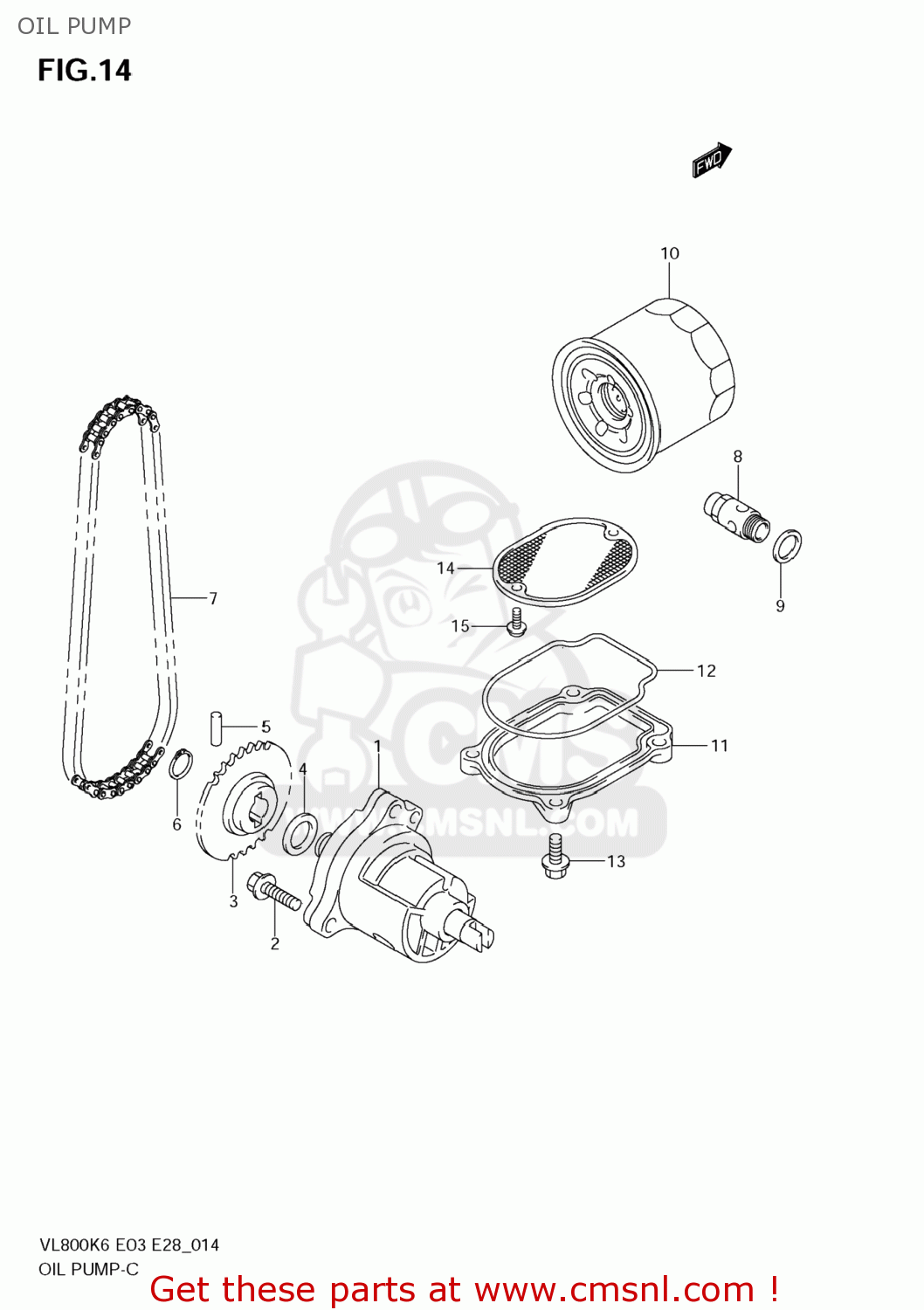

Oil pump diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)
OIL PUMP VL800 BOULEVARD C50 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640038A01
ref: 1
PUMP ASSY,ENGINE OIL
€ 148.00
2
015470625A
ref: 2
BOLT
€ 2.50
3
1633138A10
ref: 3
SPROCKET,OIL PUMP DRIVEN
€ 29.00
4
0918112158
ref: 4
SHIM(12X20X0.5)
€ 2.00
5
0926105006
ref: 5
PIN(5X18)
€ 1.50
6
0833131126
ref: 6
08331-3112A
CIRCLIP,12 MM
€ 2.00
7
1631038A00
ref: 7
CHAIN,OIL PUMP DRIVE
€ 19.50
8
1644017C20
ref: 8
VALVE ASSY,OIL RELIEF
€ 39.00
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
€ 2.00
10-1
1651003G00X07
ref: 10-1
16510-07J00
FILTER ASSY,EN
€ 12.50
10-2
1651022H00
ref: 10-2
FILTER ASSY,EN
€ 33.50
11
1652338A00
ref: 11
CAP,OIL STRAINER
€ 19.50
12
1652838A00
ref: 12
O RING,OIL STRAINER CAP
€ 8.00
13
015500620B
ref: 13
BOLT
€ 2.50
14-1
1652038A00
ref: 14-1
STRAINER,ENGINE OIL
€ 7.50
14-2
1652038A10
ref: 14-2
STRAINER,ENGINE OIL
€ 5.50
15
021127512B
ref: 15
SCREW
€ 2.00
