REAR SWINGING ARM

VL800 BOULEVARD C50 2006 (K6) USA (E03)

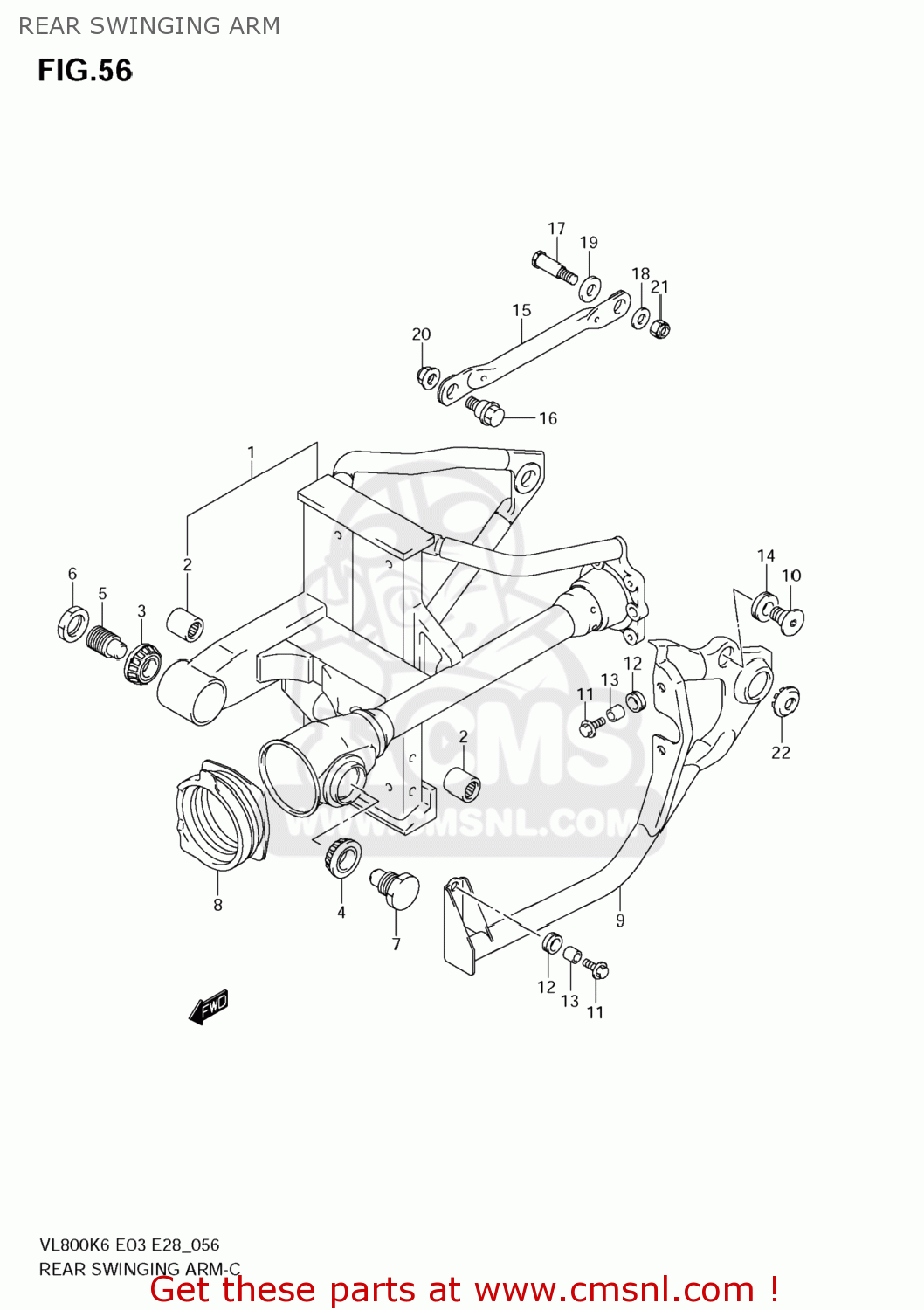

Rear swinging arm diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

REAR SWINGING ARM VL800 BOULEVARD C50 2006 (K6) USA (E03)

REAR SWINGING ARM VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6110141872019
ref: 1
61101-41890-019

SWINGINGARM SET,RR

€ 919.00

2

0926317037
ref: 2

BEARING(17X24X25)

€ 19.00

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

5

6121324A00
ref: 5

BOLT,RR SWGARM PIVOT

€ 17.00

6

0914024007
ref: 6

NUT

€ 4.50

7

6121310F00
ref: 7

BOLT,SWINGINGARM PIVOT,L

€ 16.00

8

6137241F00
ref: 8

BOOT,PROPELLER SHAFT

€ 11.00

9

6112041F10019
ref: 9

COVER,RR SWINGINGARM,L(BLACK)

€ 160.50

10

6112741F10
ref: 10

BOLT,RR SWGARM

€ 10.50

11

0911606152
ref: 11

BOLT(6X20)

€ 2.00

12

0932010056
ref: 12

CUSHION

€ 2.00

13

0918006286
ref: 13

SPACER(6.5X10X9.4)

€ 2.50

14

0932022003
ref: 14

CUSHION

€ 3.00

15

6431041F00
ref: 15

TORQUE LINK,RR

€ 15.50

16

0911110062
ref: 16

BOLT(10X22)

€ 5.00

17

0911110057
ref: 17

BOLT(10X41)

€ 4.00

18

0916010142
ref: 18

WASHER(10X20X2.3)

€ 2.00

19

0932012501
ref: 19

CUSHION

€ 5.50

20

083193110B
ref: 20

NUT

€ 3.00

21-1

0915910027
ref: 21-1

NUT

€ 3.00

21-2

083192110A
ref: 21-2

NUT

€ 2.00

22

4189942F10
ref: 22

CAP,FRAME PIVOT

€ 8.50
