FRAME COVER (MODEL K9)

VL800 BOULEVARD C50 2006 (K6) USA (E03)

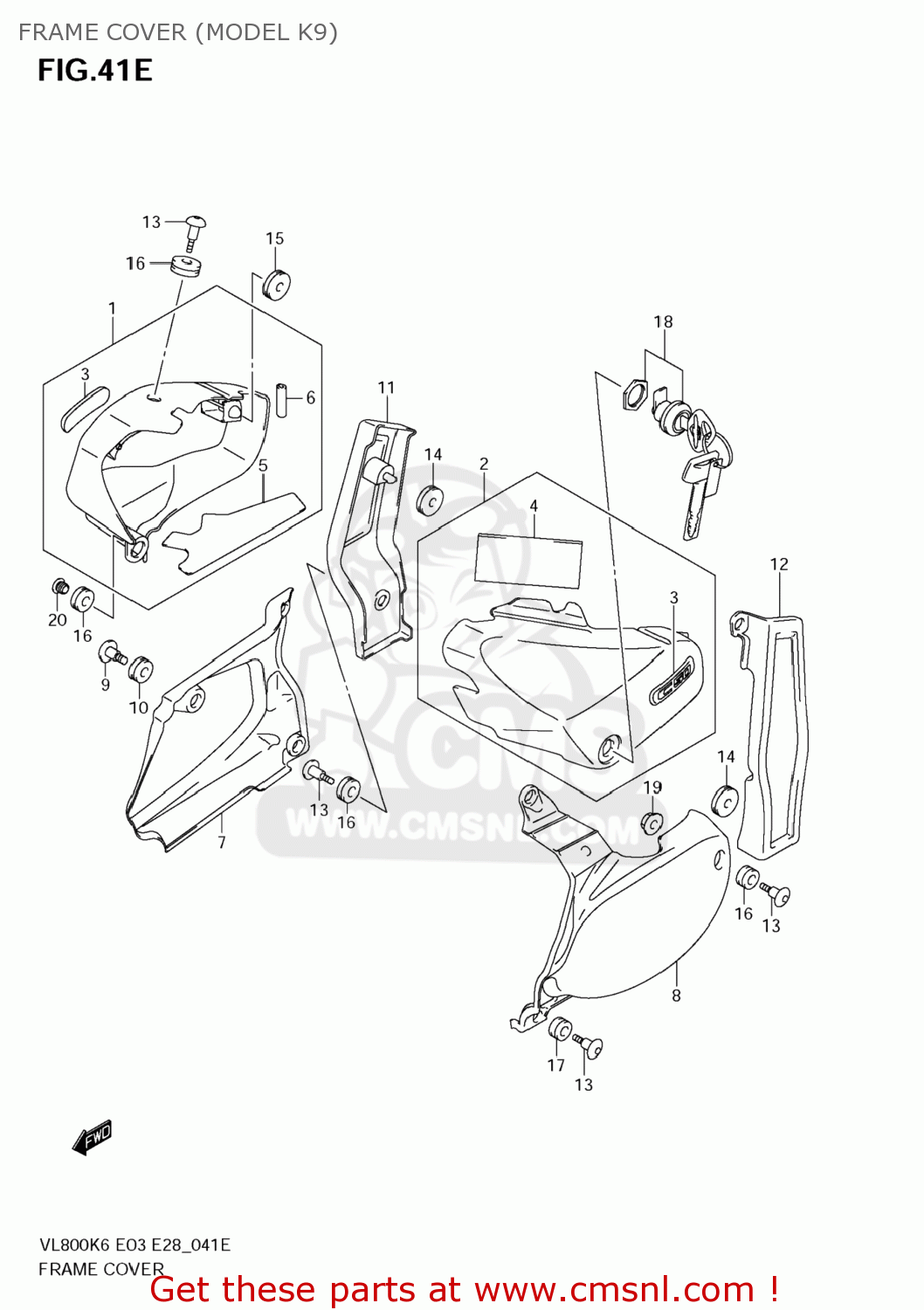

Frame cover (model k9) diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

FRAME COVER (MODEL K9) VL800 BOULEVARD C50 2006 (K6) USA (E03)

FRAME COVER (MODEL K9) VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711041FT0YAY
ref: 1-1

COVER COMP,SIDE

€ 157.00

1-10

4711041FM0YRE
ref: 1-10

COVER,SIDE,R(GREEN)

€ 157.00

1-11

4711041FP0YAY
ref: 1-11

COVER COMP,SIDE

€ 164.50

1-12

4711041FP0YRC
ref: 1-12

COVER COMP,SIDE

€ 164.50

1-2

4711041FT0YMK
ref: 1-2

COVER COMP,SIDE

€ 164.50

1-3

4711041FT0YLF
ref: 1-3

COVER COMP,SIDE

€ 157.00

1-4

4711041FT0YRE
ref: 1-4

COVER,SIDE,R(GR

€ 164.50

1-5

4711041FN0YAY
ref: 1-5

COVER,SIDE,R(BLACK)

€ 157.00

1-6

4711041FN0YRC
ref: 1-6

COVER,SIDE,R(BLUE)

€ 157.00

1-7

4711041FM0YAY
ref: 1-7

COVER,SIDE,R(BLACK)

€ 157.00

1-8

4711041FM0YMK
ref: 1-8

COVER,SIDE,R(RED)

€ 157.00

1-9

4711041FM0YLF
ref: 1-9

COVER,SIDE,R(GRAY)

€ 157.00

2-1

4721041FL0YAY
ref: 2-1

COVER,SIDE,L(BLACK)

€ 157.00

2-2

4721041FL0YMK
ref: 2-2

COVER,SIDE,L(RED)

€ 157.00

2-3

4721041FL0YLF
ref: 2-3

COVER,SIDE,L(GRAY)

€ 157.00

2-4

4721041FL0YRE
ref: 2-4

COVER,SIDE,L(GREEN)

€ 157.00

2-5

4721041FM0YAY
ref: 2-5

COVER,SIDE,L(BLACK)

€ 157.00

2-6

4721041FM0YRC
ref: 2-6

COVER,SIDE,L(BLUE)

€ 157.00

3-1

6813141F40
ref: 3-1

EMBLEM,C50

€ 32.00

3-2

6813141F50
ref: 3-2

EMBLEM,C50T

€ 0.00

4

4721741F00
ref: 4

CUSHION,LUGGAGE BOX

€ 5.00

5

4716641F00
ref: 5

SHIELD,FRAME COVER

€ 7.50

6

9463135F00
ref: 6

MOLDING

€ 3.00

7

4713041F00
ref: 7

COVER,SIDE LWR,R

€ 115.00

8

4723141F00
ref: 8

COVER,SIDE LWR,L

€ 184.00

9

4713343H00
ref: 9

SCREW,SIDE COVER LWR,R

€ 4.50

10

0932008021
ref: 10

CUSHION

€ 4.00

11

4714141F01019
ref: 11

COVER,SIDE RR,R

€ 55.50

12

4724141F00019
ref: 12

COVER,SIDE RR,L

€ 55.50

13

0913906126
ref: 13

SCREW(6X20)

€ 4.00

14

0932008018
ref: 14

CUSHION

€ 4.00

15

0932008028
ref: 15

CUSHION

€ 2.50

16

0932009501
ref: 16

CUSHION

€ 2.00

17

0932009045
ref: 17

CUSHION

€ 4.00

18

9570007860
ref: 18

LOCK SET,COVER

€ 76.00

19

083161006B
ref: 19

NUT

€ 2.50

20

0925009001
ref: 20

CAP(OD:14)

€ 1.00
