TRANSMISSION
VL800 BOULEVARD C50 2006 (K6) USA (E03)

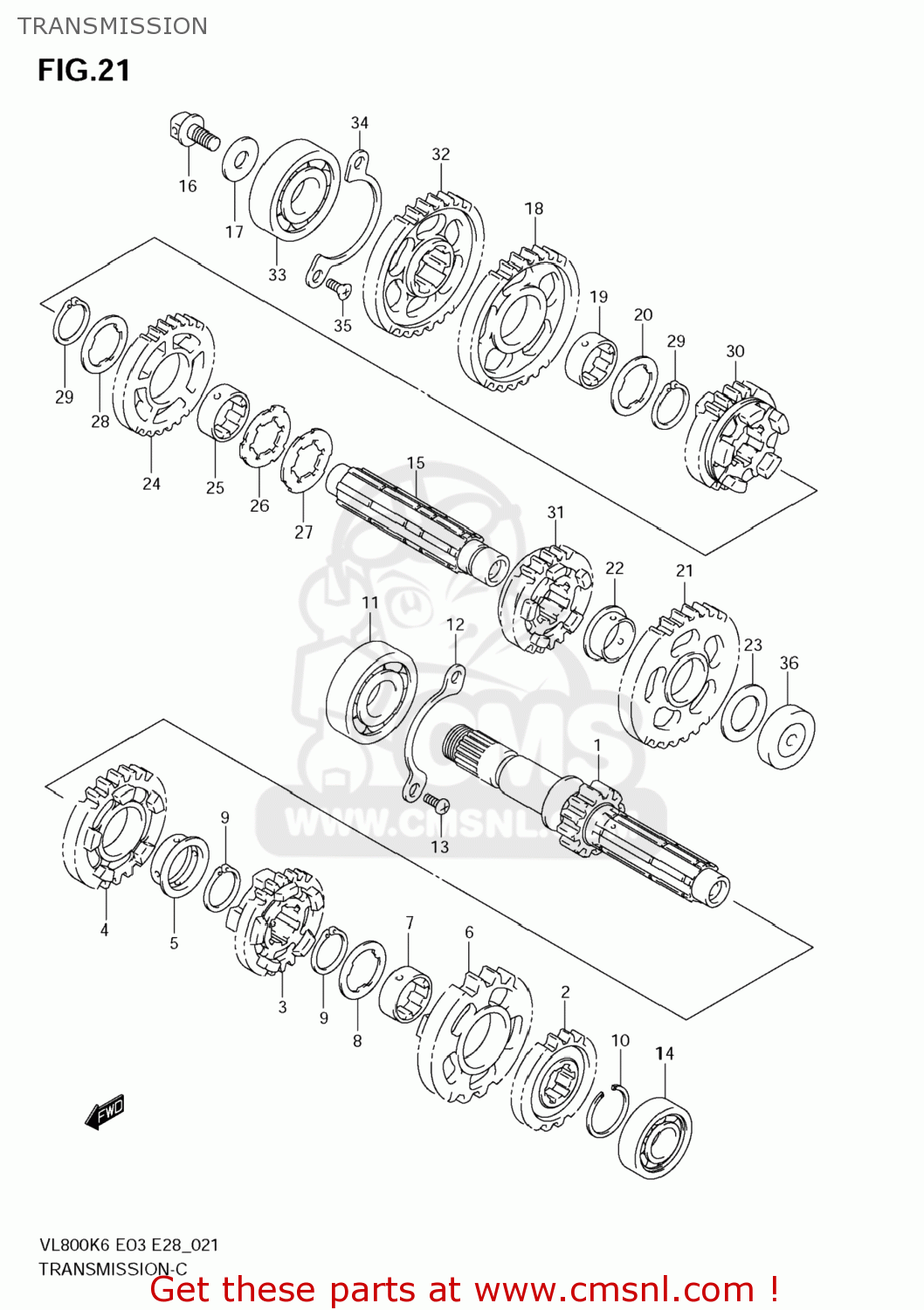

Transmission diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)
TRANSMISSION VL800 BOULEVARD C50 2006 (K6) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412041F00
ref: 1
SHAFT,COUNTER
€ 192.00
2
2422138A01
ref: 2
GEAR,2ND DRIVE(NT:19)
€ 91.50
3
2423141F00
ref: 3
GEAR,3RD DRIVE(NT:22)
€ 104.50
4
2424141F00
ref: 4
GEAR,4TH DRIVE(NT:25)
€ 117.00
5
2432219F00
ref: 5
BUSH
€ 12.50
6
2425141F00
ref: 6
GEAR,5TH DRIVE(NT:27)
€ 104.50
7
2425238A10
ref: 7
BUSH,6TH DRIVE GEAR
€ 10.50
8
0916725016
ref: 8
WASHER,LOCK
€ 3.00
9
0938025003
ref: 9
RING,SNAP
€ 3.00
10
0938025014
ref: 10
CIRCLIP
€ 4.00
11
0926225080
ref: 11
BEARING(25X62X17)
€ 21.50
12
2474138A00
ref: 12
RETAINER,CNTR SHAFT BEARING
€ 4.00
13
0912506110
ref: 13
BOLT(6X12)
€ 2.50
14
0926220139
ref: 14
BEARING(20X47X14)
€ 27.50
15
2413138A03
ref: 15
SHAFT,DRIVE
€ 106.50
16
2413538A02
ref: 16
NOZZLE,DRIVE SHAFT
€ 5.00
17
0821110305
ref: 17
WASHER
€ 3.00
18
2431141F00
ref: 18
GEAR,1ST DRIVEN(NT:32)
€ 107.50
19
2433207A00
ref: 19
BUSH
€ 9.50
20
0916728001
ref: 20
WASHER,LOCK
€ 3.00
21
2432141F00
ref: 21
GEAR,2ND DRIVEN(NT:31)
€ 95.50
22
0930122002
ref: 22
BUSH
€ 7.50
23
0918120251
ref: 23
SHIM(20X34X1)
€ 3.00
24
2433141F00
ref: 24
GEAR,3RD DRIVEN(NT:27)
€ 91.50
25
2433207A00
ref: 25
BUSH
€ 9.50
26
0916928001
ref: 26
WASHER
€ 3.00
27
0916728002
ref: 27
WASHER,LOCK
€ 3.00
28
0916728001
ref: 28
WASHER,LOCK
€ 3.00
29
083313128A
ref: 29
CIRCLIP
€ 2.50
30
2434141F00
ref: 30
GEAR,4TH DRIVEN(NT:25)
€ 117.00
31
2435141F00
ref: 31
GEAR,5TH DRIVEN(NT:22)
€ 80.00
32
2462138A00
ref: 32
GEAR,REDUCTION DRIVE(NT:30)
€ 83.50
33
0926220073
ref: 33
BEARING(20X52X15)
€ 19.00
34
2475138A00
ref: 34
RETAINER,DRIVE SHAFT BEARING
€ 4.00
35
0912606011
ref: 35
SCREW(6X12)
€ 2.00
36
0926220080
ref: 36
BEARING(20X52X15)
€ 21.50
