CYLINDER

VL800 BOULEVARD C50 2006 (K6) USA (E03)

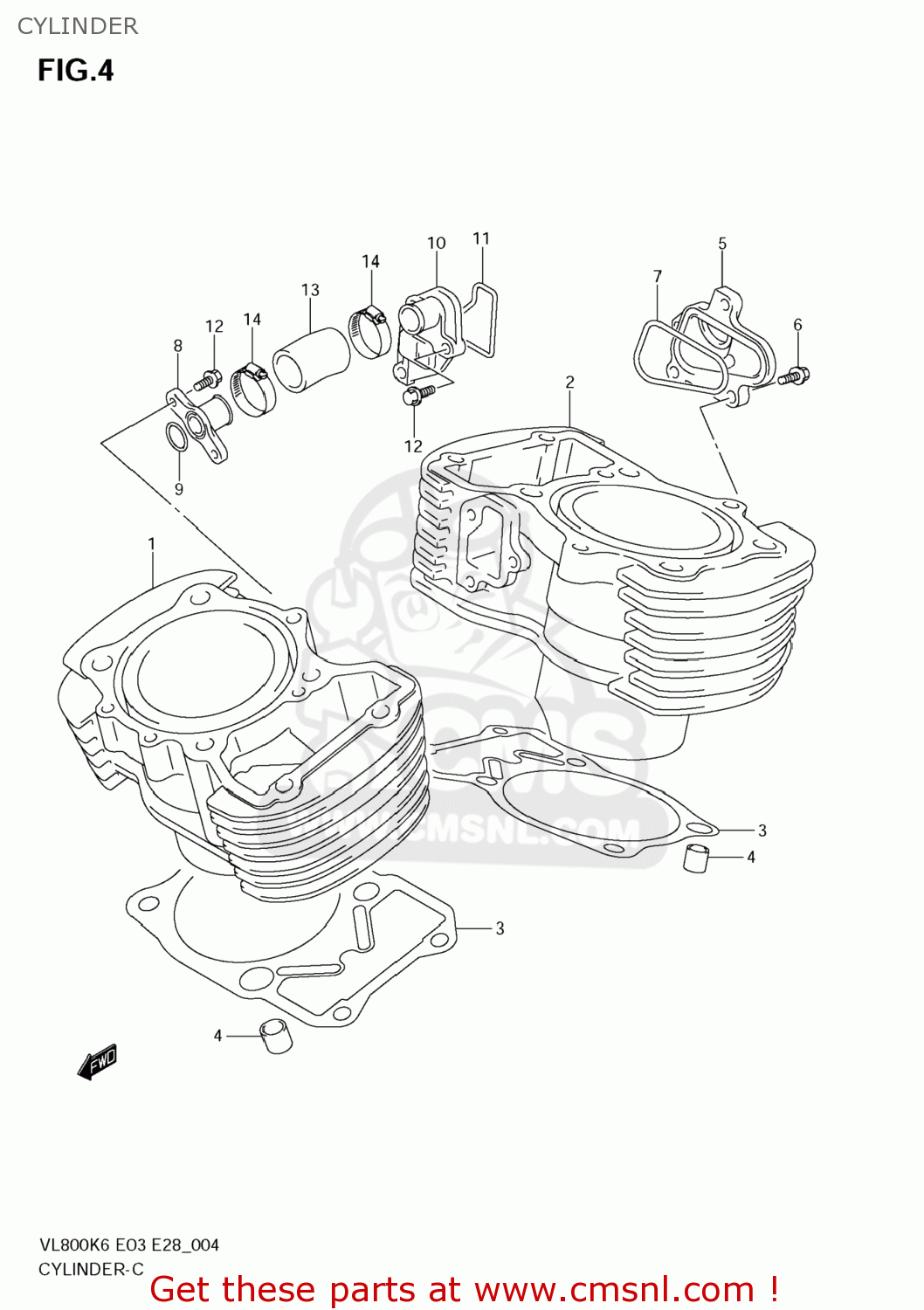

Cylinder diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1121041F000F0
ref: 1

CYLINDER,FR

€ 669.00

1122041F000F0
ref: 2

CYLINDER,RR

€ 669.00

1124141F00
ref: 3

GASKET,CYLINDER (NAS)

€ 8.50

0421113189
ref: 4

PIN

€ 2.50

1123741F00
ref: 5

CONNECTOR,CYLINDER INLET PIPE

€ 28.00

015470620B
ref: 6

BOLT

€ 2.50

1124738A00
ref: 7

O RING,INLET WATER CHAMBER

€ 3.00

1123541F00
ref: 8

UNION,CYL INLET

€ 16.00

0928016005
ref: 9

O RING(D:2.4,ID:15.8)

€ 1.50

1789241F00
ref: 10

UNION,CYL OUTLET

€ 20.00

1789941F00
ref: 11

O RING,CYL OUTLET UNION

€ 4.50

015470616B
ref: 12

BOLT

€ 2.50

1785101A00
ref: 13

HOSE,RADIATOR INLET

€ 17.50

0940228513
ref: 14

CLAMP

€ 6.50
