FRONT WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9)

VL800 BOULEVARD C50 2006 (K6) USA (E03)

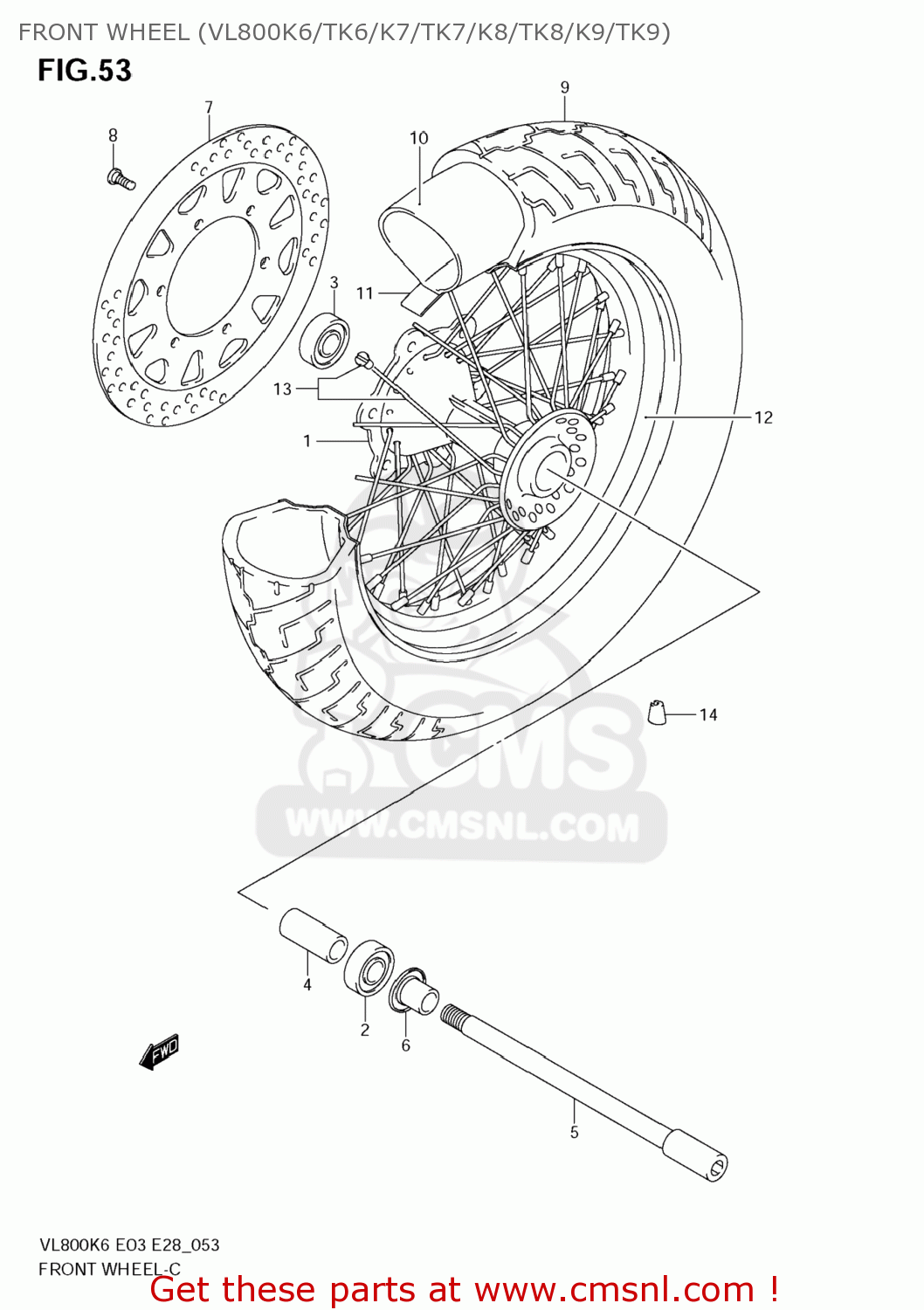

Front wheel (vl800k6/tk6/k7/tk7/k8/tk8/k9/tk9) diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

FRONT WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9) VL800 BOULEVARD C50 2006 (K6) USA (E03)

FRONT WHEEL (VL800K6/TK6/K7/TK7/K8/TK8/K9/TK9) VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411141F00
ref: 1

HUB,FR

€ 265.50

2

0813362037
ref: 2

BEARING

€ 24.50

3

0814362037
ref: 3

BEARING

€ 18.50

4

0918017080
ref: 4

SPACER(17.5X25X102)

€ 16.50

5

5471141F00
ref: 5

AXLE,FR

€ 82.00

6

5474032C00
ref: 6

SPACER,FR AXLE,R

€ 12.00

7

5921141F00
ref: 7

DISC,FR BRAKE

€ 152.00

8

5942103A20
ref: 8

BOLT,DISK

€ 4.00

9-1

5510041F00
ref: 9-1

TIRE(130/90 16 67H)

€ 121.00

9-2

5510041F10
ref: 9-2

TIRE,FRONT,130/90-16M/C 67H

€ 114.00

9-2

5510041F10
ref: 9-2

TIRE,FRONT,130/90-16M/C 67H

€ 114.00

10

5520041F00
ref: 10

TUBE ASSY,WHEEL INNER

€ 35.00

11

5526141F00
ref: 11

PROTECTOR,WHL INR TUBE

€ 4.00

12

5531141F01
ref: 12

RIM,FR WHEEL(16M/CXMT3.00)

€ 226.00

13

5532041F00
ref: 13

SPOKE SET,FR WHEEL

€ 94.00

14-1

5541126G00
ref: 14-1

BALANCER,WHEEL(15G)

€ 4.50

14-2

5541341F00
ref: 14-2

BALANCER,WHEEL(30G)

€ 8.00
