STAND - REAR BRAKE

VL800 BOULEVARD C50 2006 (K6) USA (E03)

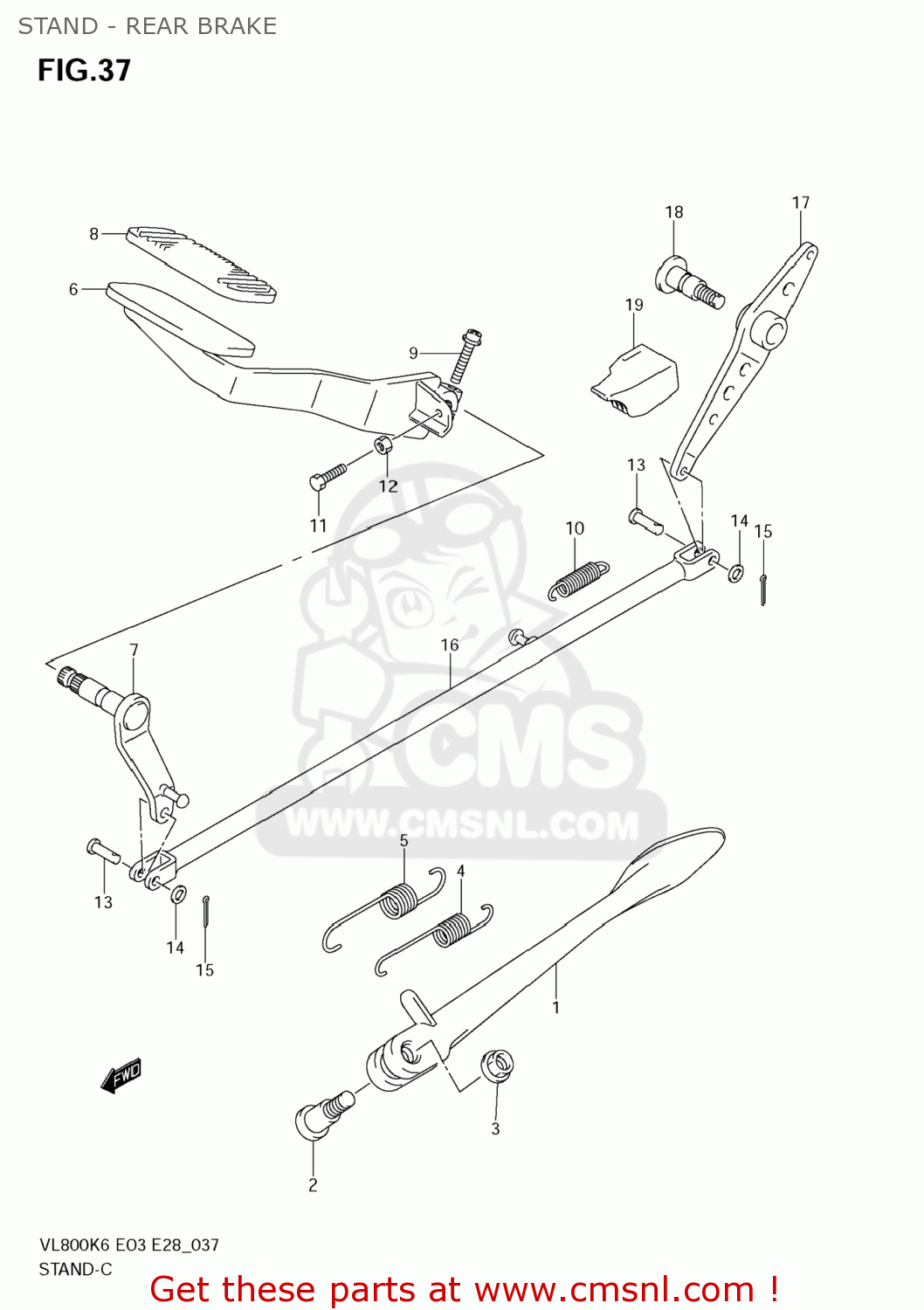

Stand - rear brake diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

STAND - REAR BRAKE VL800 BOULEVARD C50 2006 (K6) USA (E03)

STAND - REAR BRAKE VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231041F01
ref: 1

STAND,PROP

€ 126.50

2

0911110058
ref: 2

BOLT(10X37.5)

€ 6.00

3

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.50

4

0944314066
ref: 4

SPRING

€ 5.00

5

0944319012
ref: 5

SPRING

€ 5.50

6-1

4311041F10
ref: 6-1
43110-41F11

PEDAL COMP,BRA

€ 76.00

6-2

4311041F11
ref: 6-2

PEDAL,BRAKE

€ 76.00

7

4312041F00
ref: 7

ARM,BRAKE ROD

€ 40.00

8

4315110F00
ref: 8

RUBBER,BRAKE PEDAL

€ 6.50

9

071200625A
ref: 9

BOLT

€ 2.50

10

0944312051
ref: 10

SPRING

€ 5.50

11

0150006207
ref: 11

BOLT

€ 2.00

12

0831000067
ref: 12

NUT

€ 2.50

13-1

0920006037
ref: 13-1
09200-06068

PIN

€ 5.00

13-2

0920006068
ref: 13-2

PIN(6X18.2)

€ 5.00

14

083220106B
ref: 14

WASHER

€ 2.00

15

041112015A
ref: 15

PIN

€ 1.50

16

4313041F00
ref: 16

ROD,RR BRAKE FR

€ 38.50

17

4314041F00
ref: 17

LINK,RR BRAKE

€ 37.50

18

4314227C00
ref: 18

SHAFT,BRAKE PEDAL

€ 15.00

19

4315141F00
ref: 19

RUBBER,BRAKE LINK

€ 9.00
