EVAP SYSTEM (MODEL K9 E33)

VL800 BOULEVARD C50 2006 (K6) USA (E03)

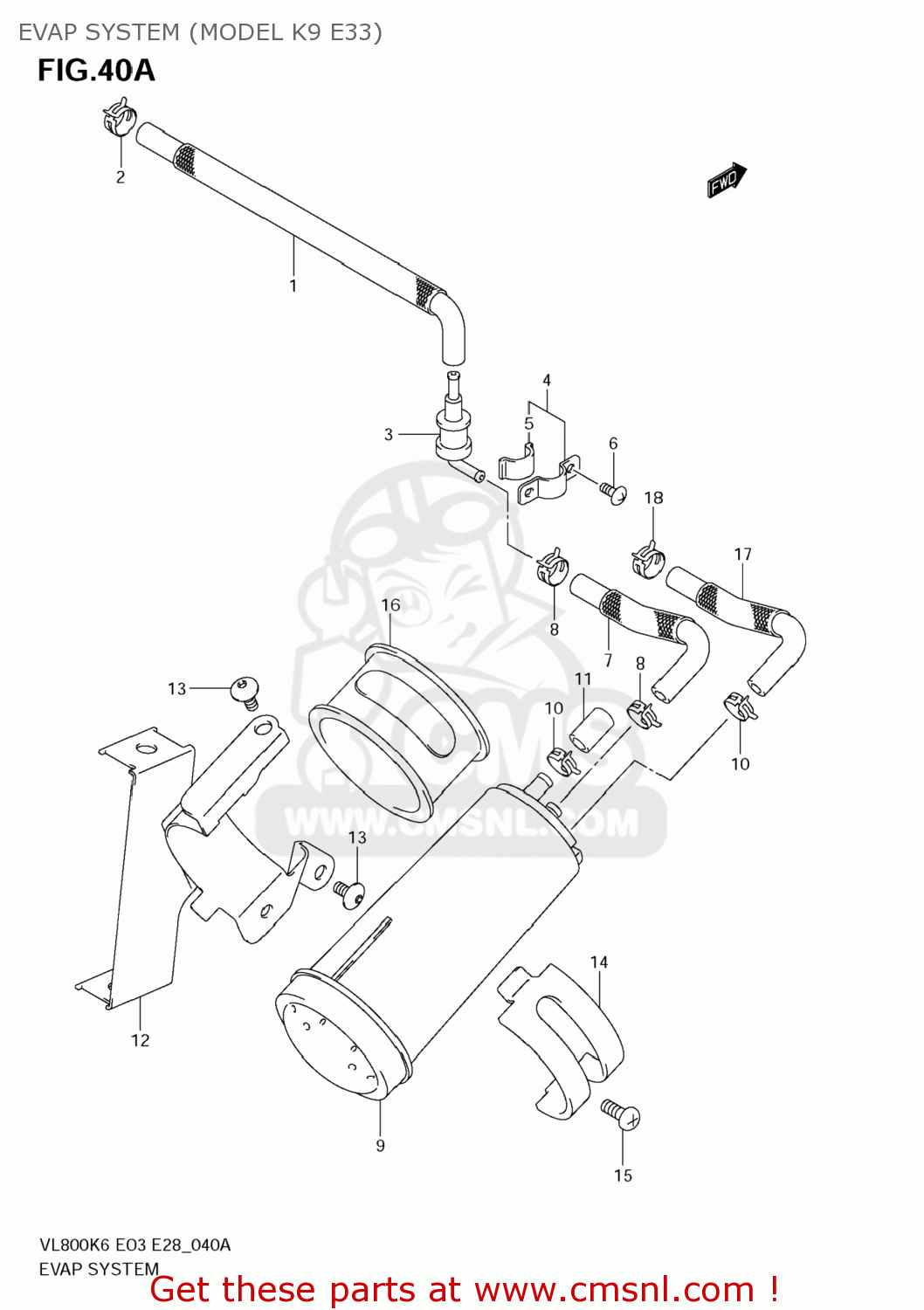

Evap system (model k9 e33) diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

EVAP SYSTEM (MODEL K9 E33) VL800 BOULEVARD C50 2006 (K6) USA (E03)

EVAP SYSTEM (MODEL K9 E33) VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4443439G01
ref: 1

HOSE,TANK & BREATHER VALVE

€ 19.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489224A00
ref: 4

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

021420408A
ref: 6

SCREW

€ 1.00

7

4443539G10
ref: 7

HOSE,BREATHER VALVE & CANISTER

€ 15.00

8

0940111413
ref: 8

CLIP

€ 2.50

9

1720017H00
ref: 9

CANISTER SET

€ 176.00

10

0940112404
ref: 10

CLIP

€ 2.50

11

0925107003
ref: 11

CAP,OD:11.5

€ 2.00

12

4488043H00
ref: 12

BRACKET,FI CONTROL UNIT

€ 18.00

13

0913906108
ref: 13

SCREW(6X12)

€ 3.00

14

4488226E00
ref: 14

HOLDER,CANISTER

€ 8.00

15

021420610A
ref: 15

SCREW

€ 2.00

16

4488326E00
ref: 16

CUSHION,CANISTER

€ 9.00

17

4443643H00
ref: 17

HOSE,CSTR PURGE

€ 18.50

18

0940111413
ref: 18

CLIP

€ 2.50
