THROTTLE BODY (MODEL K6/K7/K8)

VL800 BOULEVARD C50 2006 (K6) USA (E03)

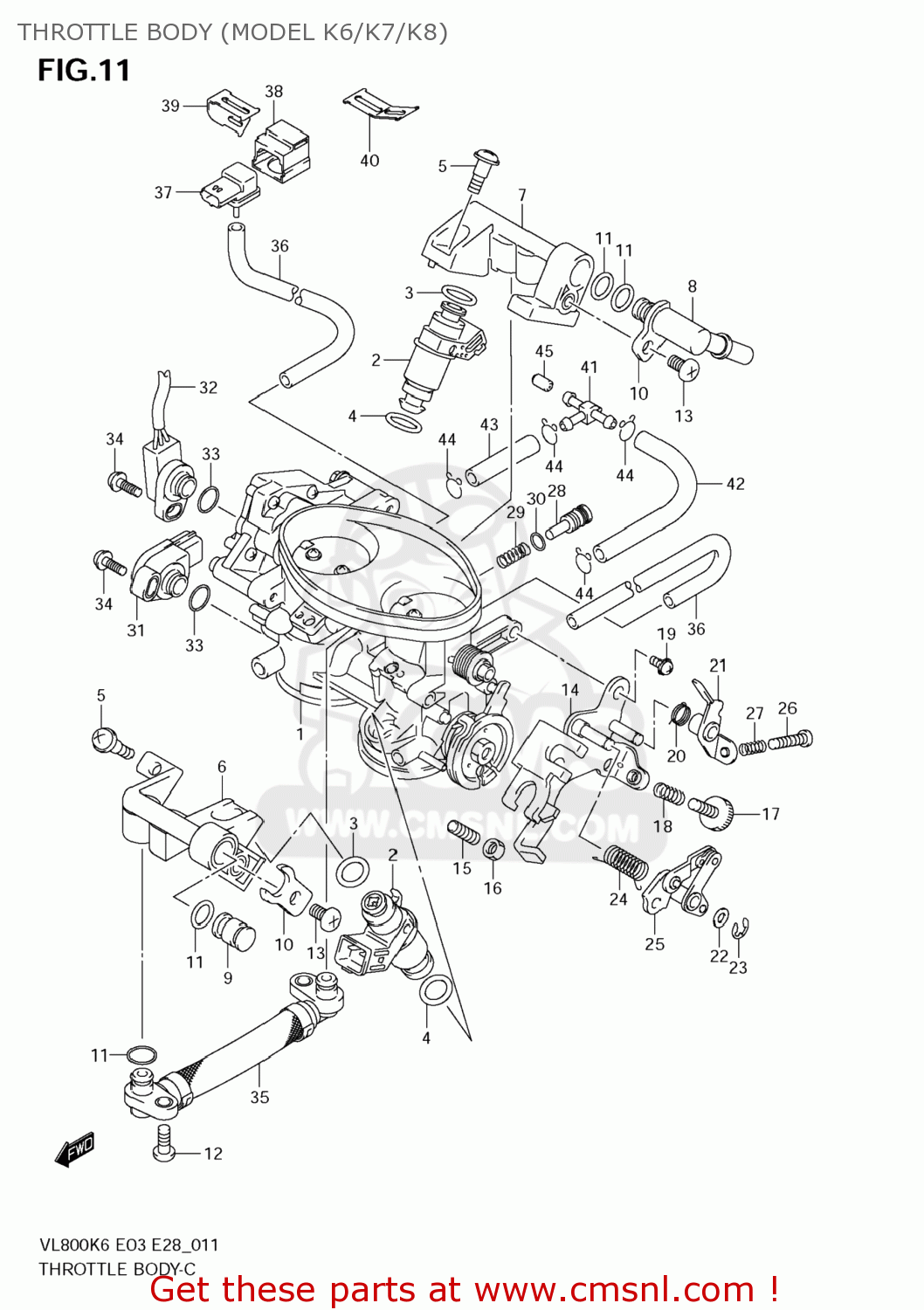

Throttle body (model k6/k7/k8) diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

THROTTLE BODY (MODEL K6/K7/K8) VL800 BOULEVARD C50 2006 (K6) USA (E03)

THROTTLE BODY (MODEL K6/K7/K8) VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1340141F00
ref: 1-1

THROTTLE BODY KIT

€ 883.00

1-2

1340141F10
ref: 1-2

THROTTLE BODY KIT

€ 0.00

2

1571014G00
ref: 2

INJECTOR ASSY

€ 311.00

3

1572110G00
ref: 3

O RING

€ 7.00

4

1572210G00
ref: 4

O RING

€ 13.00

5

1360234F50
ref: 5

SCREW,THROTTLE COVER

€ 2.50

6

1347110F00
ref: 6

PIPE,FUEL

€ 37.50

7

1347110F10
ref: 7

PIPE,FUEL

€ 38.50

8

1347341F00
ref: 8

JOINT

€ 111.50

9

1347610F00
ref: 9

PLUG

€ 19.00

10

1342810F00
ref: 10

PLATE

€ 10.50

11

1572124F00
ref: 11

O RING

€ 7.50

12

1360210F00
ref: 12

SCREW

€ 2.50

13

1360210F10
ref: 13

SCREW

€ 2.50

14

1356541F00
ref: 14

PLATE,STAY

€ 82.00

15

1326710G00
ref: 15

SCREW,STOP

€ 9.50

16

1366110G00
ref: 16

NUT

€ 3.00

17

1360510F00
ref: 17

SCREW,IDLE

€ 23.50

18

1326835F00
ref: 18

SPRING

€ 4.50

19

1360110G00
ref: 19

SCREW

€ 3.00

20

1342635F10
ref: 20

SPRING

€ 4.00

21

1341440F00
ref: 21

LEVER,LINK

€ 25.50

22

1342735F10
ref: 22

WASHER

€ 3.50

23

1342435F10
ref: 23

E CLIP

€ 3.00

24

1342640F00
ref: 24

SPRING

€ 4.00

25

1342040F20
ref: 25

LEVER SET,LINK

€ 60.00

26

1360210F20
ref: 26

SCREW

€ 3.50

27

1354324F00
ref: 27

SPRING

€ 4.50

28

1327910G00
ref: 28

SCREW,ADJUST

€ 8.50

29

1327110G00
ref: 29

SPRING

€ 3.00

30

1329510G00
ref: 30

O RING

€ 2.50

31

1358040F20
ref: 31

SENSOR ASSY,TH

€ 163.50

32

1358041F00
ref: 32

SENSOR ASSY,TH

€ 158.50

33

1357540F00
ref: 33

O RING

€ 3.50

34

1360540F00
ref: 34

SCREW

€ 3.00

35

1368010F00
ref: 35

PIPE ASSY,FUEL

€ 85.50

36

1368341FA0
ref: 36

HOSE

€ 15.00

37

1859142F00
ref: 37

SENSOR,PRESSURE

€ 367.00

38

1859542F20
ref: 38

HOLDER,SENSOR

€ 15.00

39

1859841F00
ref: 39

BRACKET,BOOST SENSOR FR

€ 3.50

40

1859941F00
ref: 40

BRACKET,BOOST SENSOR RR

€ 3.00

41

1368548B00
ref: 41

NIPPLE

€ 9.00

42

1368341FB1
ref: 42

HOSE

€ 0.00

43

1368341FC1
ref: 43

HOSE

€ 4.00

44

1369324F00
ref: 44

CLIP

€ 2.00

45

1368510F00
ref: 45

PIPE

€ 5.00
