HEADLAMP HOUSING

VL800 BOULEVARD C50 2006 (K6) USA (E03)

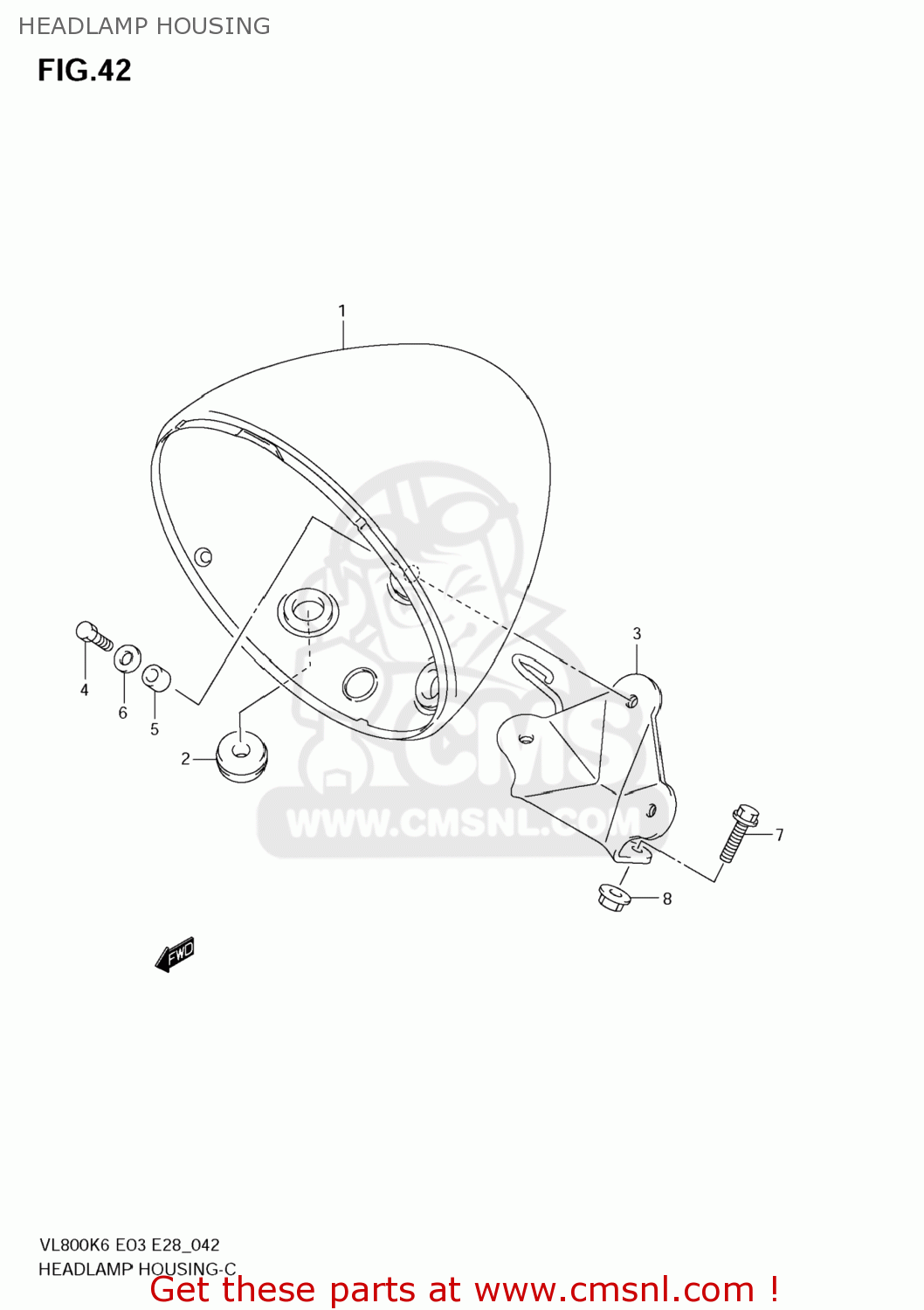

Headlamp housing diagram VL800 BOULEVARD C50 2006 (K6) USA (E03)

HEADLAMP HOUSING VL800 BOULEVARD C50 2006 (K6) USA (E03)

HEADLAMP HOUSING VL800 BOULEVARD C50 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5180010FA0
ref: 1

HOUSING ASSY,HEADLAMP

€ 225.00

2

0932009010
ref: 2

CUSHION

€ 2.50

3

5185041FA0
ref: 3

BRACKET,HEADLAMP HOUSING

€ 294.00

4

015000625B
ref: 4

BOLT

€ 2.50

5-1

0918006307
ref: 5-1

SPACER(6.5X9X10)

€ 3.00

5-2

0918006266
ref: 5-2

SPACER(6.5X9X11.5)

€ 4.00

6-1

0916006077
ref: 6-1

WASHER(6.5X20X1.2)

€ 2.00

6-2

0916006152
ref: 6-2

WASHER(6.5X20X1.2)

€ 1.50

7

015500825B
ref: 7

BOLT

€ 2.50

8

083193108B
ref: 8

NUT

€ 2.50
