BACKREST

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

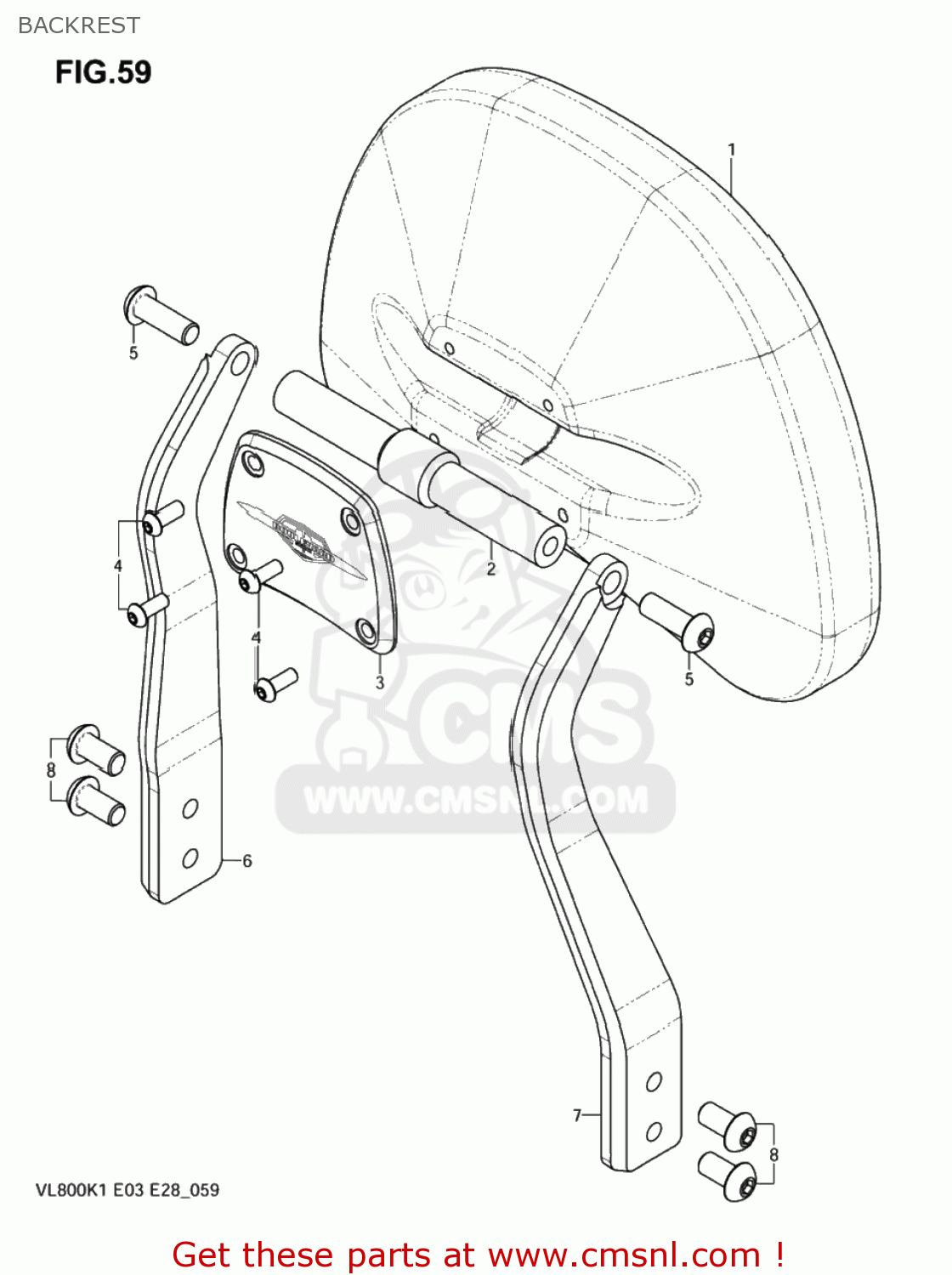

Backrest diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

BACKREST VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

BACKREST VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity



990A075039TRG
ref:

BACKREST CHRM S

€ 244.00

1

990A075039001
ref: 1

PAD ASSY

€ 0.00

1A

990A075039008
ref: 1A

.PAD COVER

€ 0.00

2

990A075039002
ref: 2

CROSSBAR

€ 0.00

3

990A075039003
ref: 3

BACK PLATE

€ 0.00

4

990A075039004
ref: 4

SCREW, M6X1.0X20

€ 1.00

5

990A075039005
ref: 5

SCREW, M10X1.5X25

€ 0.00

6

990A075039006
ref: 6

UPRIGHT, LH

€ 0.00

7

990A075039007
ref: 7

UPRIGHT, RH

€ 0.00

8

990A075012001
ref: 8

SCREW, M10X1.5X20

€ 1.50

9

990A075010001
ref: 9

BACKREST MOUNT PLATE, LH

€ 0.00

10

990A075010002
ref: 10

BACKREST MOUNT PLATE, RH

€ 0.00

11

990A075010003
ref: 11

SPACER, 19ODX8.5IDX6.5T

€ 0.00

12

990A075009001
ref: 12

SADDLEBAG SUPPORT, LH

€ 0.00

13

990A075009002
ref: 13

SADDLEBAG SUPPORT, RH

€ 0.00

14

990A077019001
ref: 14

SADDLEBAG ASSY, LH

€ 0.00

15

990A077019002
ref: 15

SADDLEBAG ASSY, RH

€ 0.00

16

990A077019003
ref: 16

BOLT, M8X1.25X85

€ 0.00

17

990A077020004
ref: 17

TOPHAT WASHER, SADDLEBAG

€ 0.00
