WIRING HARNESS (VL800K4/ZK4)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

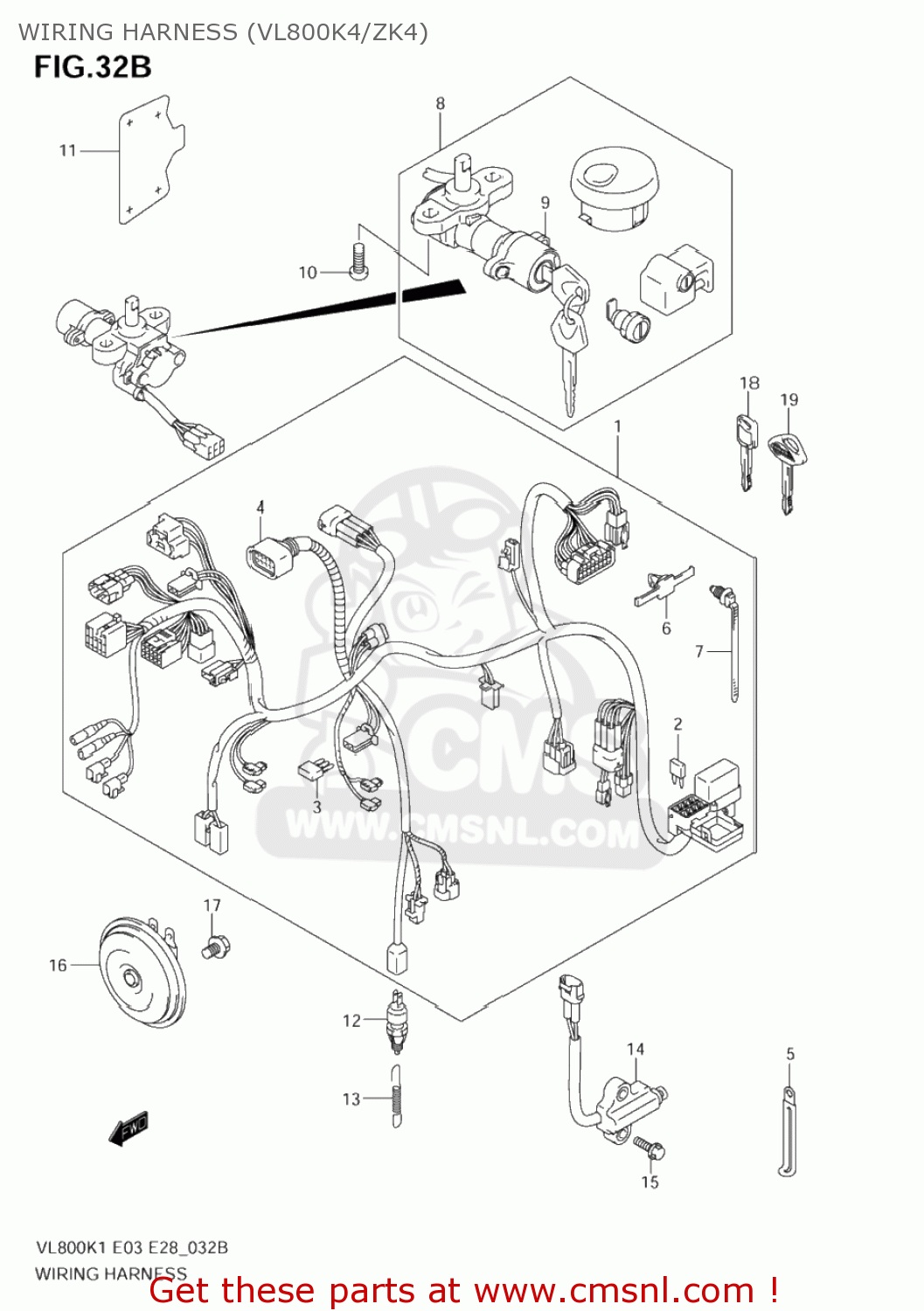

Wiring harness (vl800k4/zk4) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VL800K4/ZK4) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VL800K4/ZK4) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3661041FA0
ref: 1

HARNESS,WIRING

€ 0.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661138A00
ref: 3

DIODE(STANLEY DE8804)

€ 13.00

4

3661833E00
ref: 4

COVER,SPEEDOMETER COUPLER

€ 5.50

5

0940406433
ref: 5

CLAMP(L:80)

€ 3.00

6

0940705410
ref: 6

CLAMP

€ 4.00

7

0940717403
ref: 7

CLAMP(L:154)

€ 5.50

8-1

3700041820
ref: 8-1

LOCK SET

€ 544.50

8-2

3700041880
ref: 8-2

LOCK SET

€ 317.00

8-3

3700041830
ref: 8-3

LOCK SET

€ 0.00

8-4

3700041890
ref: 8-4

LOCK SET

€ 0.00

9-1

3710041F10
ref: 9-1

LOCK ASSY,STEERING

€ 171.00

9-2

3710041F30
ref: 9-2

LOCK ASSY,STEERING

€ 171.50

10

0913908016
ref: 10

BOLT(8X20)

€ 3.50

11

3718741F00
ref: 11

PROTECTOR,IGNITION SWITCH

€ 12.00

12

3774024A00
ref: 12

SWITCH ASSY,STOP LAMP

€ 20.50

13

0944306073
ref: 13

SPRING

€ 3.00

14

3784041F00
ref: 14

SWITCH ASSY,SIDE STAND

€ 65.00

15

0155006203
ref: 15
01550-0620A

BOLT

€ 2.50

16

3850041F00
ref: 16

HORN ASSY

€ 83.50

17

0155008123
ref: 17
01550-0812A

BOLT

€ 3.50

18

3714641F10
ref: 18

KEY,BLANK

€ 26.00

19

3714641F30
ref: 19

KEY,BLANK(VOLUSIA)

€ 57.00
