WATER PUMP

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

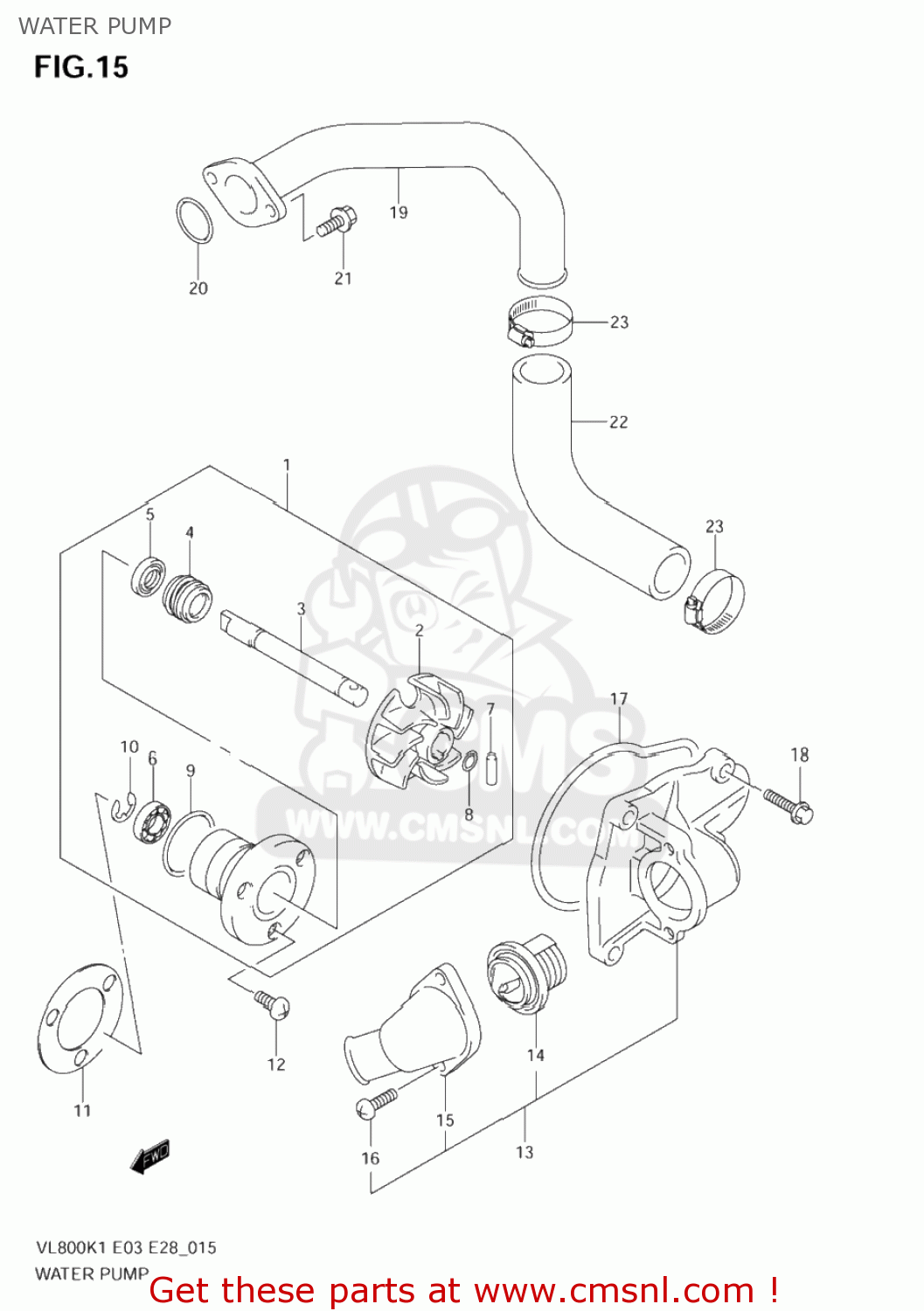

Water pump diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WATER PUMP VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WATER PUMP VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

1740038A02
ref: 1-1
17400-38A10

PUMP ASSEMBLY,WATER

€ 133.50

1-2

1740038A10
ref: 1-2

PUMP ASSY,WATER

€ 133.50

2

1749138A00
ref: 2

IMPELLER

€ 12.50

3

1751138A00
ref: 3

SHAFT

€ 30.50

4-1

1747002F00
ref: 4-1

SEAL,MECHANICAL

€ 21.50

4-2

1747002F10
ref: 4-2

SEAL,MECHANICAL

€ 21.50

5

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

6

0926210004
ref: 6

BEARING(10X22X6)

€ 20.50

7

1751638A00
ref: 7

PIN

€ 4.00

8

1751538A00
ref: 8

O RING

€ 1.50

9

1741738A00
ref: 9

O RING

€ 2.50

10

0833211086
ref: 10
08332-1108A

E RING

€ 2.00

11

1743138A10
ref: 11

GASKET,WATER PUMP (NAS)

€ 5.00

12

0211206123
ref: 12
02112-0612A

SCREW

€ 1.50

13-1

1741038A00
ref: 13-1

CASE ASSY,WATER PUMP

€ 166.50

13-2

1741041F01
ref: 13-2

CASE ASSY,WATER PUMP

€ 158.00

13-3

1741041F10
ref: 13-3

CAP ASSY,WATER PUMP

€ 96.50

14

1767033410
ref: 14

THERMOSTAT,WATER

€ 37.00

15-1

1741245C00
ref: 15-1

CONNECTOR

€ 47.00

15-2

1741241F00
ref: 15-2

CONNECTOR

€ 30.00

16

0211206163
ref: 16
02112-0616A

SCREW 6X16

€ 2.00

17

1743538A00
ref: 17

O RING,WATER PUMP CAP

€ 5.00

18

0154706203
ref: 18
01547-0620B

SCREW

€ 2.50

19

1789041F00
ref: 19

PIPE,CYLINDER INLET

€ 29.00

20

0928024007
ref: 20

O RING(D:2.3,ID:24.4)

€ 2.00

21

0154706163
ref: 21
01547-0616B

BOLT

€ 2.50

22

1785838820
ref: 22

HOSE,WATER PUMP OUTLET

€ 16.50

23

0940232511
ref: 23

CLAMP

€ 11.50
