LUGGAGE BOX

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

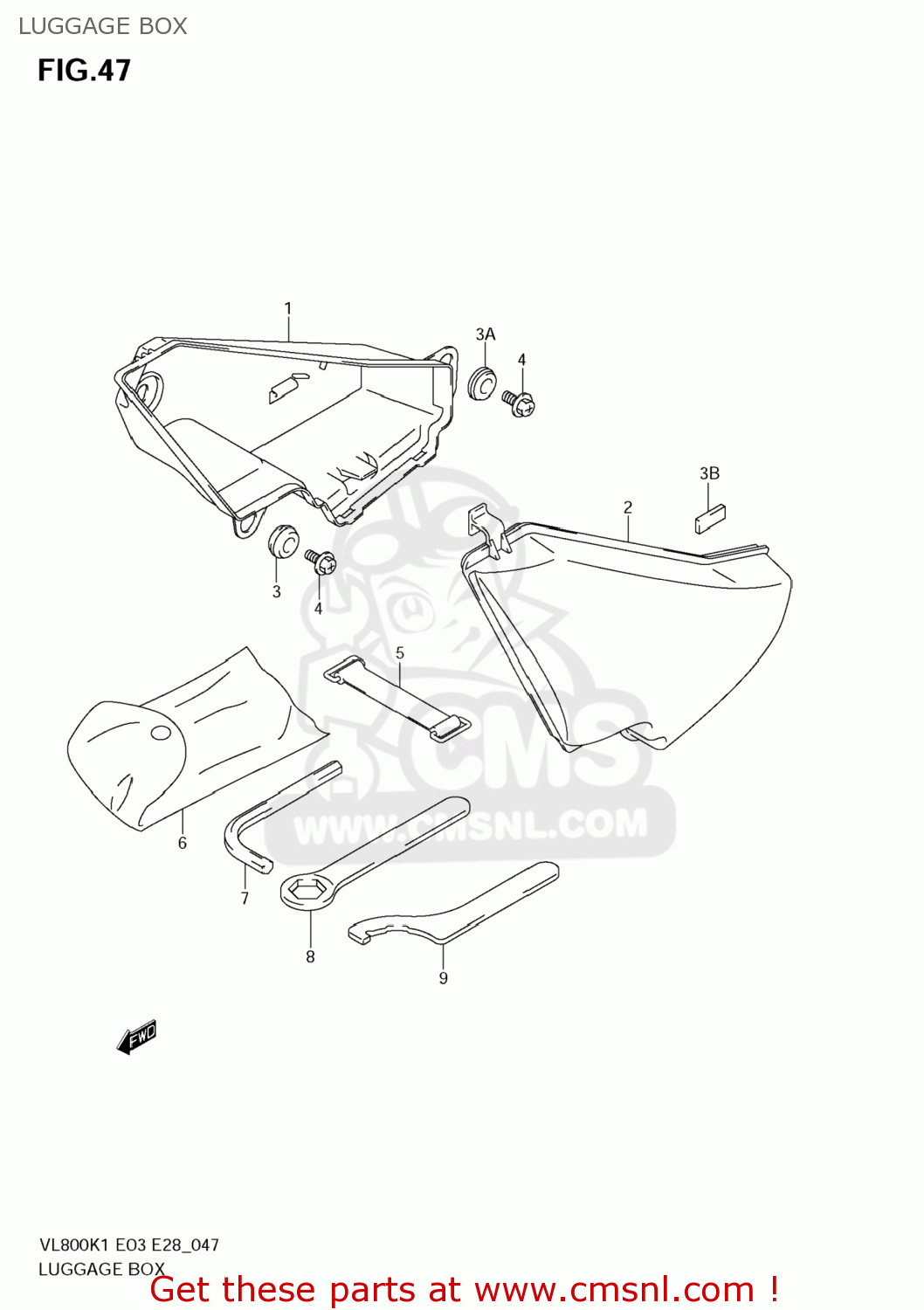

Luggage box diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

9221141F00
ref: 1

BODY,LUGGAGE BOX

€ 38.50

9221241F00
ref: 2
92212-41F01

LID,LUGGAGE BO

€ 26.00

0932009045
ref: 3

CUSHION

€ 4.00

0932008028
ref: 3A

CUSHION

€ 2.50

9221341F00
ref: 3B

CUSHION,LUGGAGE BOX NO.2

€ 5.00

6316143E00
ref: 4

BOLT

€ 3.00

5-1

0946200001A
ref: 5-1

BAND

€ 8.00

5-2

0928061002
ref: 5-2

O RING(D:3.5,ID:61)

€ 5.00

0980021012
ref: 6

TOOL ASSY

€ 40.00

7-1

0981600050
ref: 7-1

SPANNER,HEXAGON(6)

€ 5.50

7-2

0981600103
ref: 7-2

SPANNER,HEXAGON(4)

€ 3.00

7-3

0981600139
ref: 7-3

HEXAGON SPANNER,12

€ 5.00

7-4

0981600051
ref: 7-4

HEXAGON SPANNER,8

€ 5.50

0981700035
ref: 8

RING SPANNER(22)

€ 6.50

0982200003
ref: 9

CLAMP

€ 6.00
