EVAPO SYSTEM (MODEL K1/K2/K3/K4 E33)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

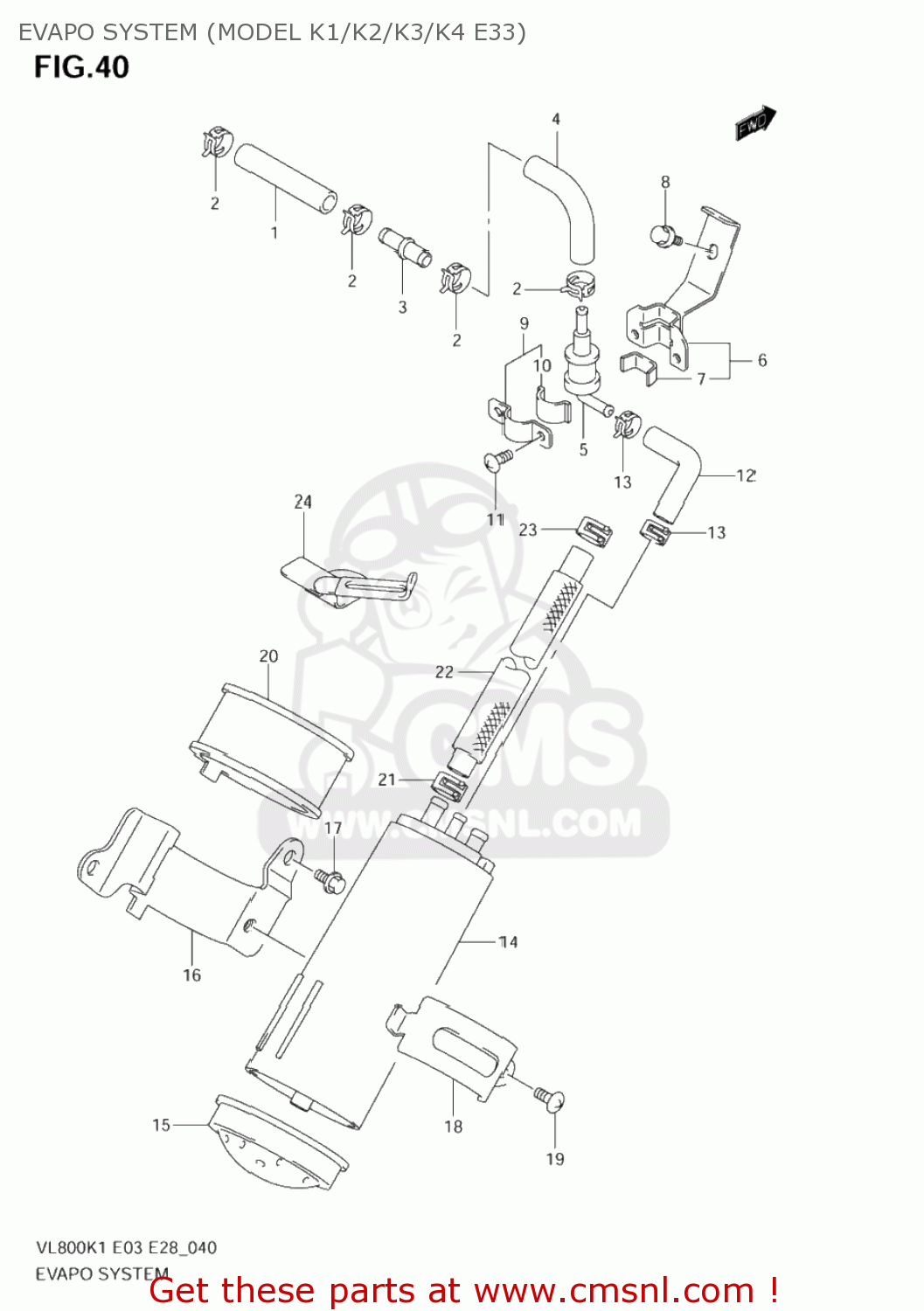

Evapo system (model k1/k2/k3/k4 e33) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

EVAPO SYSTEM (MODEL K1/K2/K3/K4 E33) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

EVAPO SYSTEM (MODEL K1/K2/K3/K4 E33) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

4443441F10
ref: 1

HOSE,TANK & BREATHER VALVE UP

€ 0.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

0936706009
ref: 3

JOINT

€ 2.50

4

4443441F00
ref: 4
44434-35F00

HOSE, TANK & VALVE LOWER

€ 0.00

5

4424017C00
ref: 5

VALVE,FUEL TANK BREATHER

€ 40.00

6

4489041F00
ref: 6

BRACKET,FUEL TANK BREATHER

€ 0.00

7

4489424A00
ref: 7

CUSHION

€ 1.50

8

0155006123
ref: 8
01550-0612A

BOLT

€ 2.50

9

4489224A00
ref: 9

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

10

4489424A00
ref: 10

CUSHION

€ 1.50

11

0214204083
ref: 11
02142-0408B

SCREW

€ 1.50

12

4443541F00
ref: 12

HOSE,BREATHER VALVE & CANISTER

€ 0.00

13

0940111413
ref: 13

CLIP

€ 2.50

14

1721010F00
ref: 14

CANISTER ASSY,CHARCOAL

€ 0.00

15

1721148E00
ref: 15

CAP,CANISTER

€ 14.50

16

4488141F00
ref: 16

BRACKET,CANISTER

€ 0.00

17

0155006123
ref: 17
01550-0612A

BOLT

€ 2.50

18

4488226E00
ref: 18

HOLDER,CANISTER

€ 8.00

19

0214206103
ref: 19
02142-0610A

SCREW 6X10

€ 2.00

20

4488326E00
ref: 20

CUSHION,CANISTER

€ 9.00

21

0940111407
ref: 21
09401-11415

CLIP

€ 2.50

22

4443841F00
ref: 22

HOSE,CANISTER & CARB

€ 0.00

23

0940111413
ref: 23

CLIP

€ 2.50

24

4448041F00
ref: 24

CLAMP,EVAPORATOR HOSE

€ 0.00
