SPEEDOMETER (VL800ZK5)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

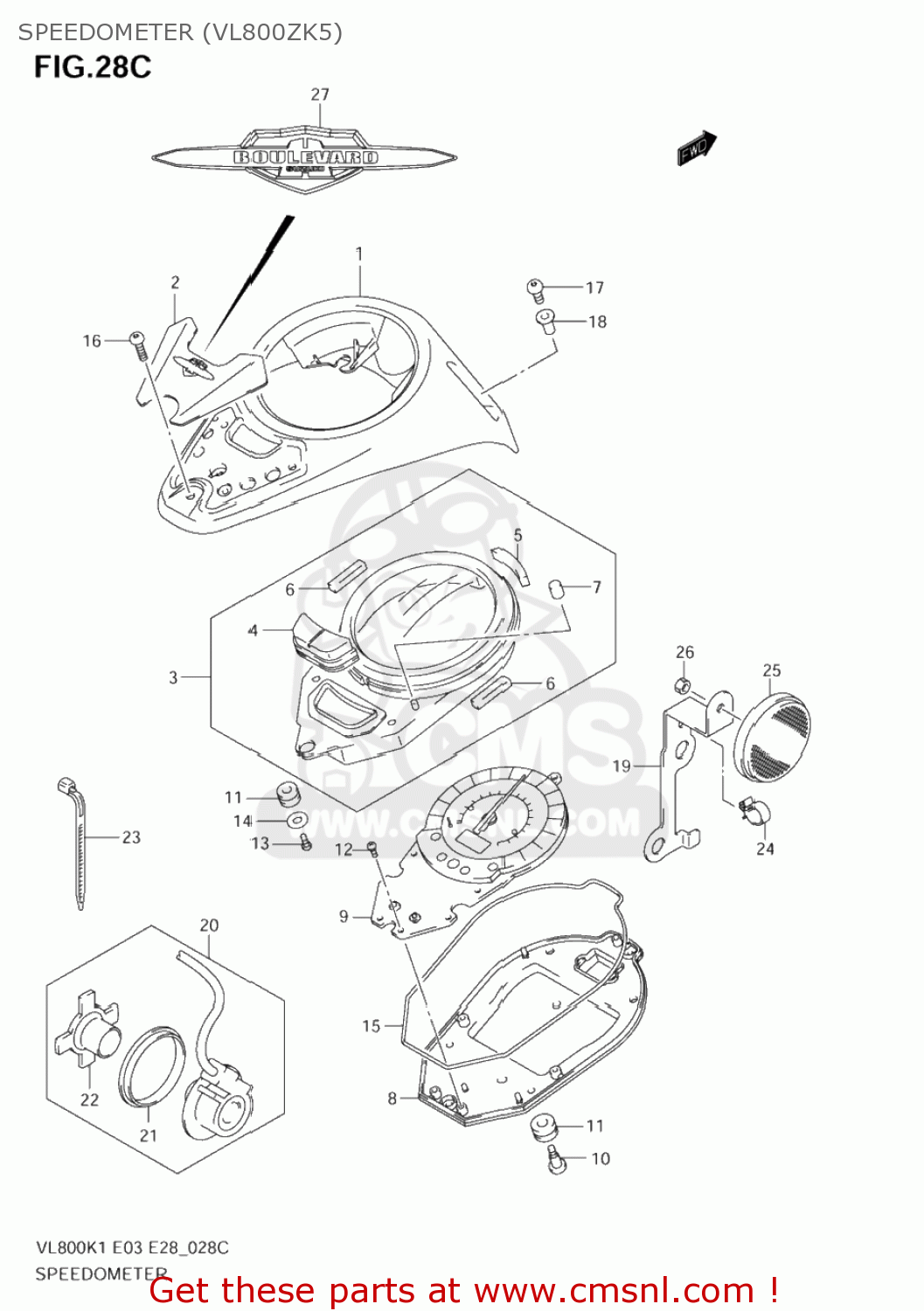

Speedometer (vl800zk5) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

SPEEDOMETER (VL800ZK5) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

SPEEDOMETER (VL800ZK5) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3415041F00
ref: 1

CASE ASSY

€ 246.00

2

3415741FG0
ref: 2

PLATE,DECORATION

€ 14.00

3

3415141F00
ref: 3

CASE,UPR

€ 184.00

4

3414141F00
ref: 4

SWITCH,SELECT

€ 17.50

5

3419641F00
ref: 5

CUSHION NO.1

€ 4.50

6

3419641F10
ref: 6

CUSHION NO.2

€ 6.00

7

3496141F00
ref: 7

CUSHION NO.4

€ 6.00

8

3415241F00
ref: 8

CASE,LWR

€ 48.50

9

3412041FD0
ref: 9
34120-41FD1

SPEEDOMETER

€ 280.50

10

3418641F00
ref: 10

BOLT

€ 8.00

11

3499643410
ref: 11

CUSHION,METER

€ 3.00

12

3418314F00
ref: 12

SCREW(3X10)

€ 3.00

13

3414916B00
ref: 13

SCREW(4X14)

€ 2.00

14

3418121D00
ref: 14

WASHER

€ 6.50

15

3415341F00
ref: 15

GASKET,METER CASE (NAS)

€ 11.00

16

0913905025
ref: 16

SCREW(5X14)

€ 2.00

17

0913905032
ref: 17

SCREW(5X18)

€ 2.50

18

0915905019
ref: 18

NUT

€ 5.50

19

3493841F30
ref: 19

GUIDE,SPEED SENSOR LEAD

€ 6.50

20

3499041F10
ref: 20

SENSOR,SPEED

€ 163.00

21

0928644001
ref: 21

SEAL,OIL(44X55X6)

€ 10.00

22

3498327G00
ref: 22

MAGNETO

€ 26.00

23

0940714407
ref: 23

CLAMP(L:145)

€ 4.00

24

0940306410
ref: 24

CLAMP

€ 2.00

25

3595014A00
ref: 25

REFLECTOR,REFLEX FR

€ 15.00

26

0831610053
ref: 26
08316-1005A

NUT

€ 2.50

27

6828141F10
ref: 27

EMBLEM,BOULEVARD

€ 33.00
