FUEL TANK (MODEL K2)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

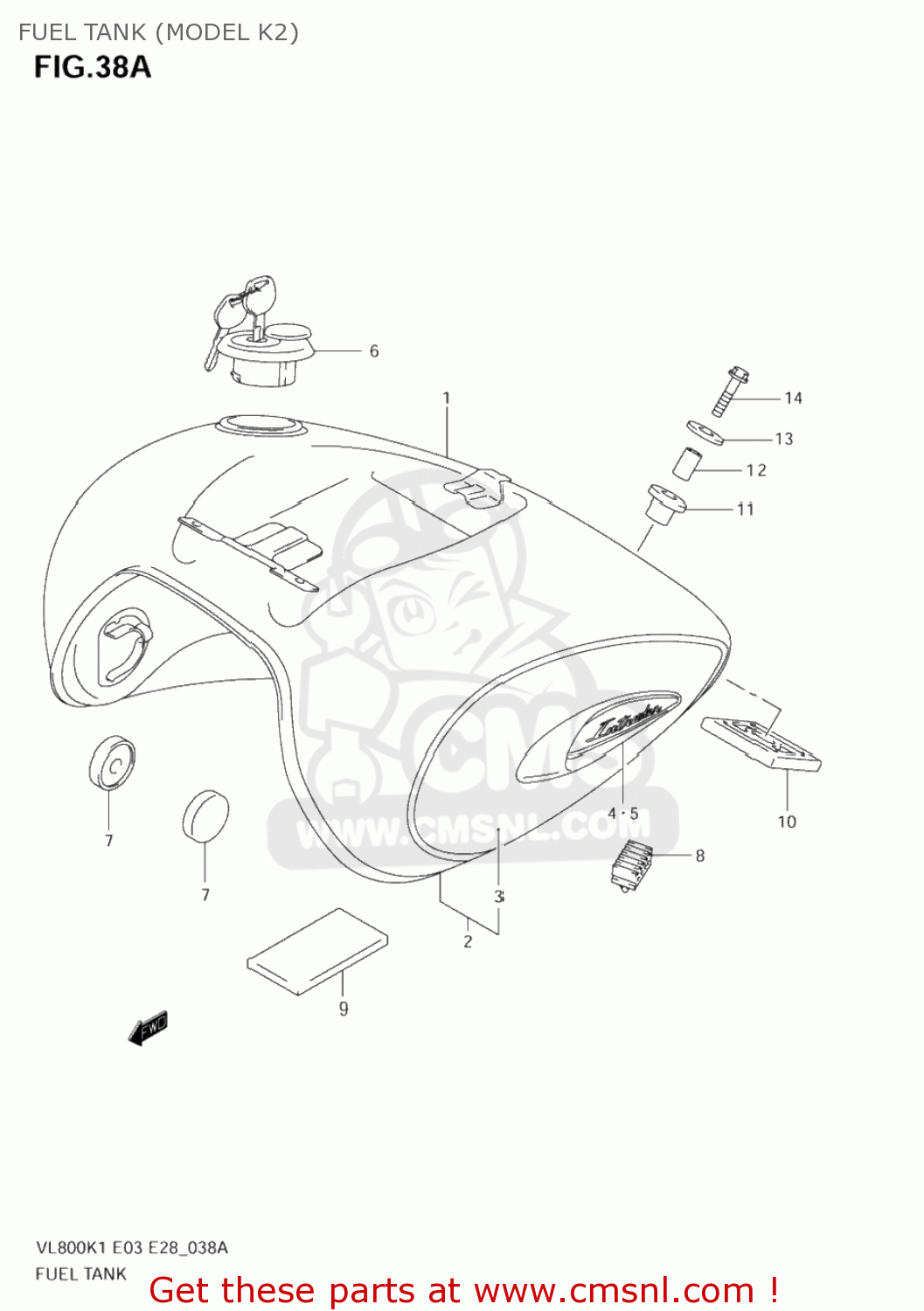

Fuel tank (model k2) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FUEL TANK (MODEL K2) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FUEL TANK (MODEL K2) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4410041F0033J
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410041F1033J
ref: 1-2

TANK ASSY, FUEL (BLACK) E33

€ 0.00

2-1

4410041F30FH9
ref: 2-1

TANK ASSY,FUEL

€ 0.00

2-2

4410041F30HE6
ref: 2-2

TANK ASSY,FUEL

€ 0.00

2-3

4410041F40FH9
ref: 2-3

TANK ASSY,FUEL

€ 0.00

2-4

4410041F40HE6
ref: 2-4

TANK ASSY,FUEL

€ 0.00

3-1

6811041F01HJ1
ref: 3-1

TAPE SET,FUEL TANK

€ 164.00

3-2

6811041F01HE6
ref: 3-2

TAPESET,FUEL T

€ 190.00

4

6811141F00
ref: 4

EMBLEM,FUEL TANK,R

€ 50.00

5

6812141F00
ref: 5

EMBLEM,FUEL TANK,L

€ 50.00

6-1

4420041810
ref: 6-1

CAP SET,FUEL TANK

€ 153.00

6-2

4420041820
ref: 6-2

CAP SET,FUEL TANK

€ 131.50

7

0932910007
ref: 7

CUSHION

€ 3.00

8

4514931300
ref: 8

CUSHION,SEAT(40X20X15)

€ 2.00

9

4454541F00
ref: 9

CUSHION,FUEL TANK

€ 7.00

10

4454241F00
ref: 10

CUSHION,FUEL TANK RR LWR

€ 8.00

11

4454141F00
ref: 11
44541-41F01

CUSHION,FUEL T

€ 6.50

12

0918008057
ref: 12

SPACER (8.2X12.5X23.5)

€ 2.00

13

0916008140
ref: 13
09160-08146

WASHER (8.5X33X1.6)

€ 3.00

14

0155008353
ref: 14
01550-0835A

BOLT

€ 3.50
