FUEL TANK (MODEL K4)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

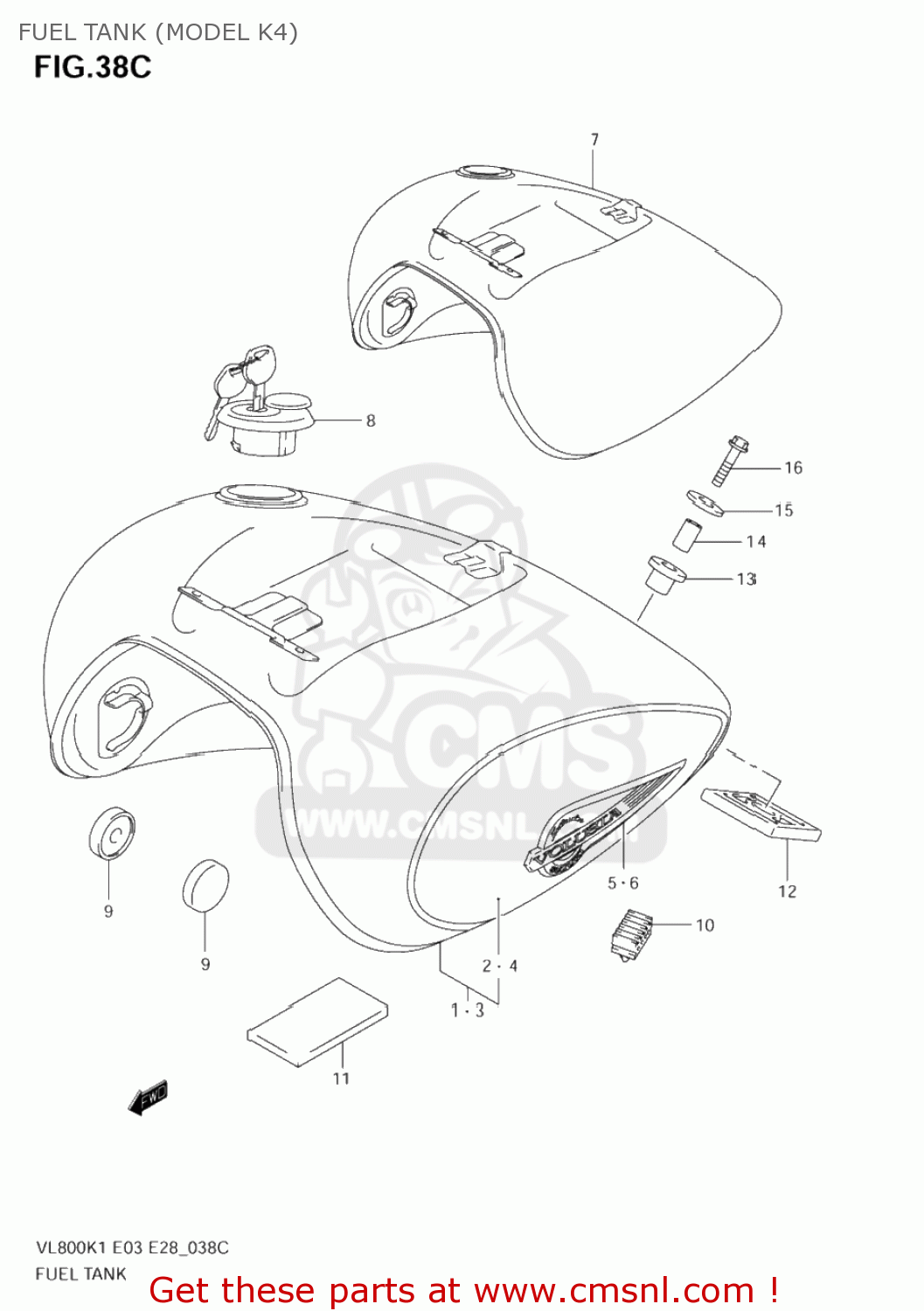

Fuel tank (model k4) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FUEL TANK (MODEL K4) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FUEL TANK (MODEL K4) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4410041F70YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410041F80YAY
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 0.00

2

6811041F10ADK
ref: 2

TAPE SET,FUEL TANK

€ 199.50

3-1

4410041F60AAV
ref: 3-1

TANK ASSY,FUEL

€ 0.00

3-2

4410041F60AAW
ref: 3-2

TANK ASSY,FUEL

€ 0.00

3-3

4410041FB0AAV
ref: 3-3

TANK ASSY,FUEL

€ 0.00

3-4

4410041FB0AAW
ref: 3-4

TANK ASSY,FUEL

€ 0.00

4-1

6811041F20ABZ
ref: 4-1

TAPE SET, FUEL TANK

€ 227.00

4-2

6811041F20ACA
ref: 4-2

TAPE SET,FUEL TANK

€ 195.50

5

6811141F10
ref: 5

EMBLEM,FUEL TANK,R

€ 66.50

6

6812141F10
ref: 6

EMBLEM,FUEL TANK,L

€ 66.50

7-1

4410041FG0YAU
ref: 7-1

TANK ASSY,FUEL(GRAY)

€ 0.00

7-2

4410041FJ0YAU
ref: 7-2

TANK ASSY,FUEL(GRAY)

€ 0.00

8-1

4420041810
ref: 8-1

CAP SET,FUEL TANK

€ 153.00

8-2

4420041820
ref: 8-2

CAP SET,FUEL TANK

€ 131.50

9

0932910007
ref: 9

CUSHION

€ 3.00

10

4514931300
ref: 10

CUSHION,SEAT(40X20X15)

€ 2.00

11

4454541F00
ref: 11

CUSHION,FUEL TANK

€ 7.00

12

4454241F00
ref: 12

CUSHION,FUEL TANK RR LWR

€ 8.00

13

4454141F00
ref: 13
44541-41F01

CUSHION,FUEL T

€ 6.50

14

0918008057
ref: 14

SPACER (8.2X12.5X23.5)

€ 2.00

15

0916008140
ref: 15
09160-08146

WASHER (8.5X33X1.6)

€ 3.00

16

0155008353
ref: 16
01550-0835A

BOLT

€ 3.50
