WIRING HARNESS (VL800K3/ZK3)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

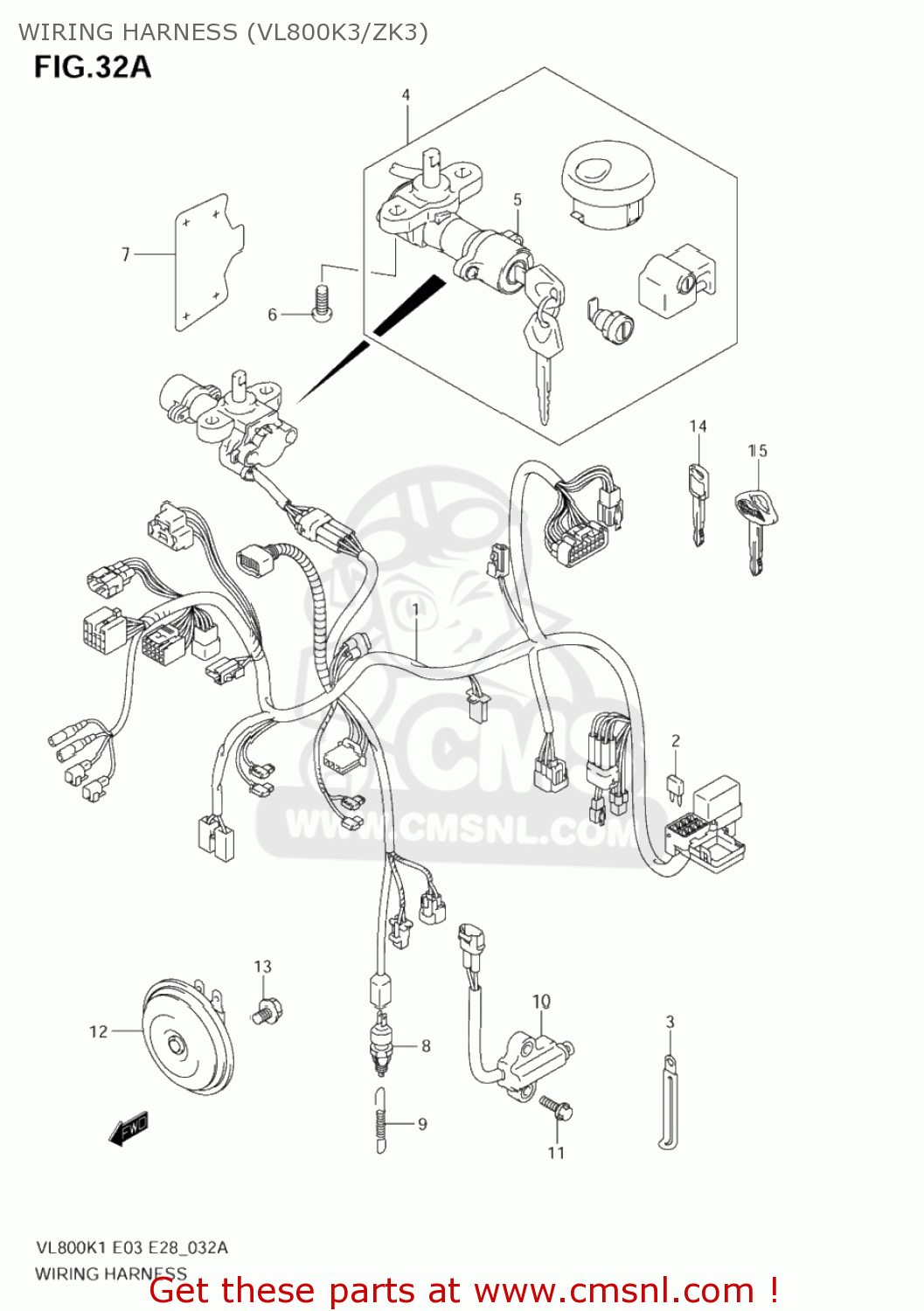

Wiring harness (vl800k3/zk3) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VL800K3/ZK3) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VL800K3/ZK3) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3661041F80
ref: 1

HARNESS,WIRING

€ 0.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

0940406433
ref: 3

CLAMP(L:80)

€ 3.00

4-1

3700041820
ref: 4-1

LOCK SET

€ 544.50

4-2

3700041880
ref: 4-2

LOCK SET

€ 317.00

4-3

3700041830
ref: 4-3

LOCK SET

€ 0.00

4-4

3700041890
ref: 4-4

LOCK SET

€ 0.00

5-1

3710041F10
ref: 5-1

LOCK ASSY,STEERING

€ 171.00

5-2

3710041F30
ref: 5-2

LOCK ASSY,STEERING

€ 171.50

6

0913908016
ref: 6

BOLT(8X20)

€ 3.50

7

3718741F00
ref: 7

PROTECTOR,IGNITION SWITCH

€ 12.00

8

3774024A00
ref: 8

SWITCH ASSY,STOP LAMP

€ 20.50

9

0944306073
ref: 9

SPRING

€ 3.00

10

3784041F00
ref: 10

SWITCH ASSY,SIDE STAND

€ 65.00

11

0155006203
ref: 11
01550-0620A

BOLT

€ 2.50

12

3850041F00
ref: 12

HORN ASSY

€ 83.50

13

0155008123
ref: 13
01550-0812A

BOLT

€ 3.50

14

3714641F10
ref: 14

KEY,BLANK

€ 26.00

15

3714641F30
ref: 15

KEY,BLANK(VOLUSIA)

€ 57.00
