EVAPO SYSTEM (MODEL K5 E33)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

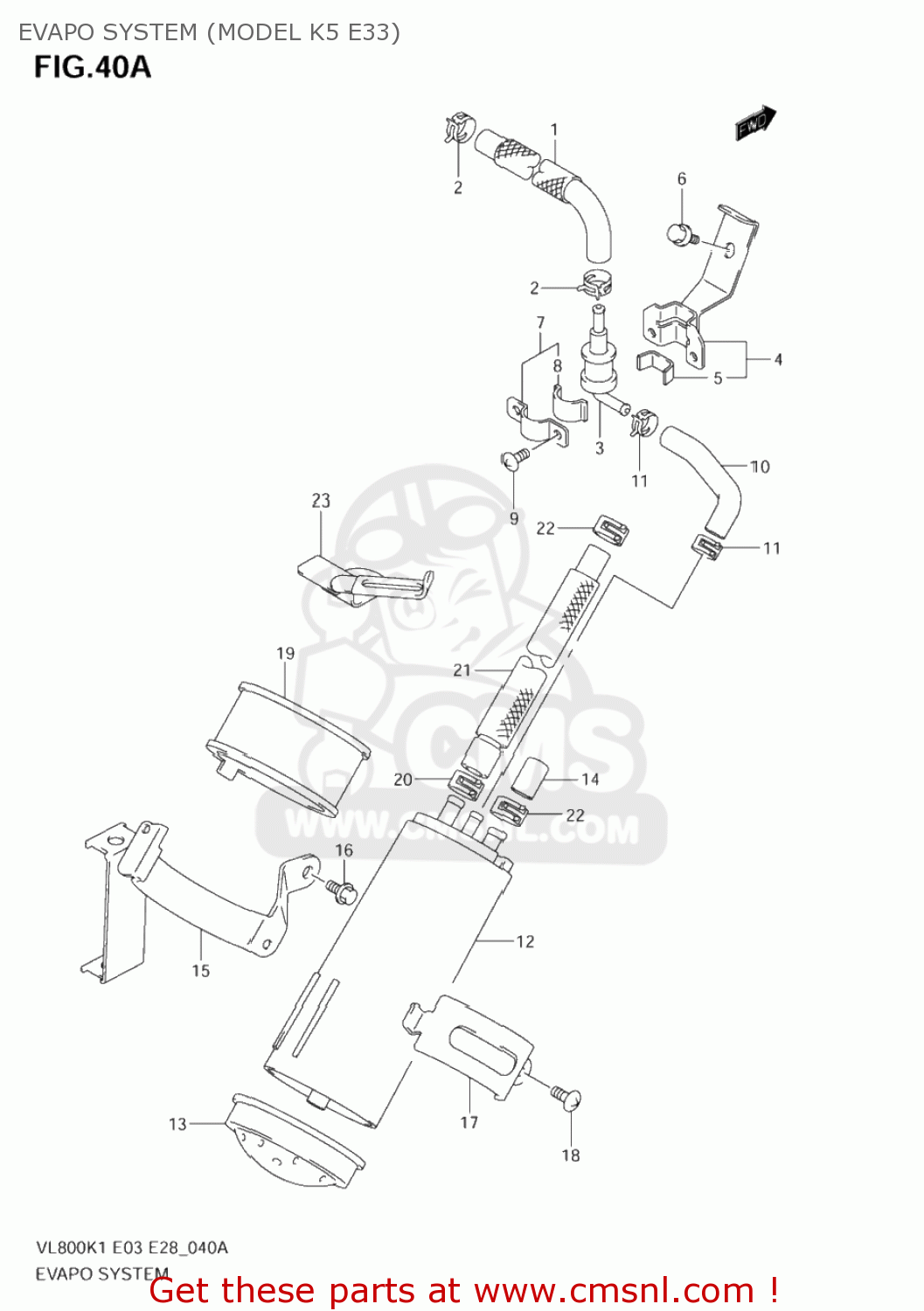

Evapo system (model k5 e33) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

EVAPO SYSTEM (MODEL K5 E33) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

EVAPO SYSTEM (MODEL K5 E33) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

4443441F20
ref: 1

HOSE,TANK & BREATHER VALVE

€ 0.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489041F00
ref: 4

BRACKET,FUEL TANK BREATHER

€ 0.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

0155006123
ref: 6
01550-0612A

BOLT

€ 2.50

7

4489224A00
ref: 7

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

8

4489424A00
ref: 8

CUSHION

€ 1.50

9

0214204083
ref: 9
02142-0408B

SCREW

€ 1.50

10

4443541F10
ref: 10

HOSE,BREATHER VALVE & CANISTER

€ 0.00

11

0940111413
ref: 11

CLIP

€ 2.50

12

1721026E00
ref: 12

CANISTER ASSY,CHARCOAL

€ 261.50

13

1721148E00
ref: 13

CAP,CANISTER

€ 14.50

14

0925107003
ref: 14

CAP,OD:11.5

€ 2.00

15

4488041F10
ref: 15

BRACKET,FI CONTROL UNIT

€ 18.00

16

0913906108
ref: 16

SCREW(6X12)

€ 3.00

17

4488226E00
ref: 17

HOLDER,CANISTER

€ 8.00

18

0214206103
ref: 18
02142-0610A

SCREW 6X10

€ 2.00

19

4488326E00
ref: 19

CUSHION,CANISTER

€ 9.00

20

0940111407
ref: 20
09401-11415

CLIP

€ 2.50

21

4443841F10
ref: 21

HOSE,CSTR & THROTTLE BODY

€ 0.00

22

0940111413
ref: 22

CLIP

€ 2.50

23

4448041F00
ref: 23

CLAMP,EVAPORATOR HOSE

€ 0.00

all assemblies
