WIRING HARNESS (VL800K1/K2)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

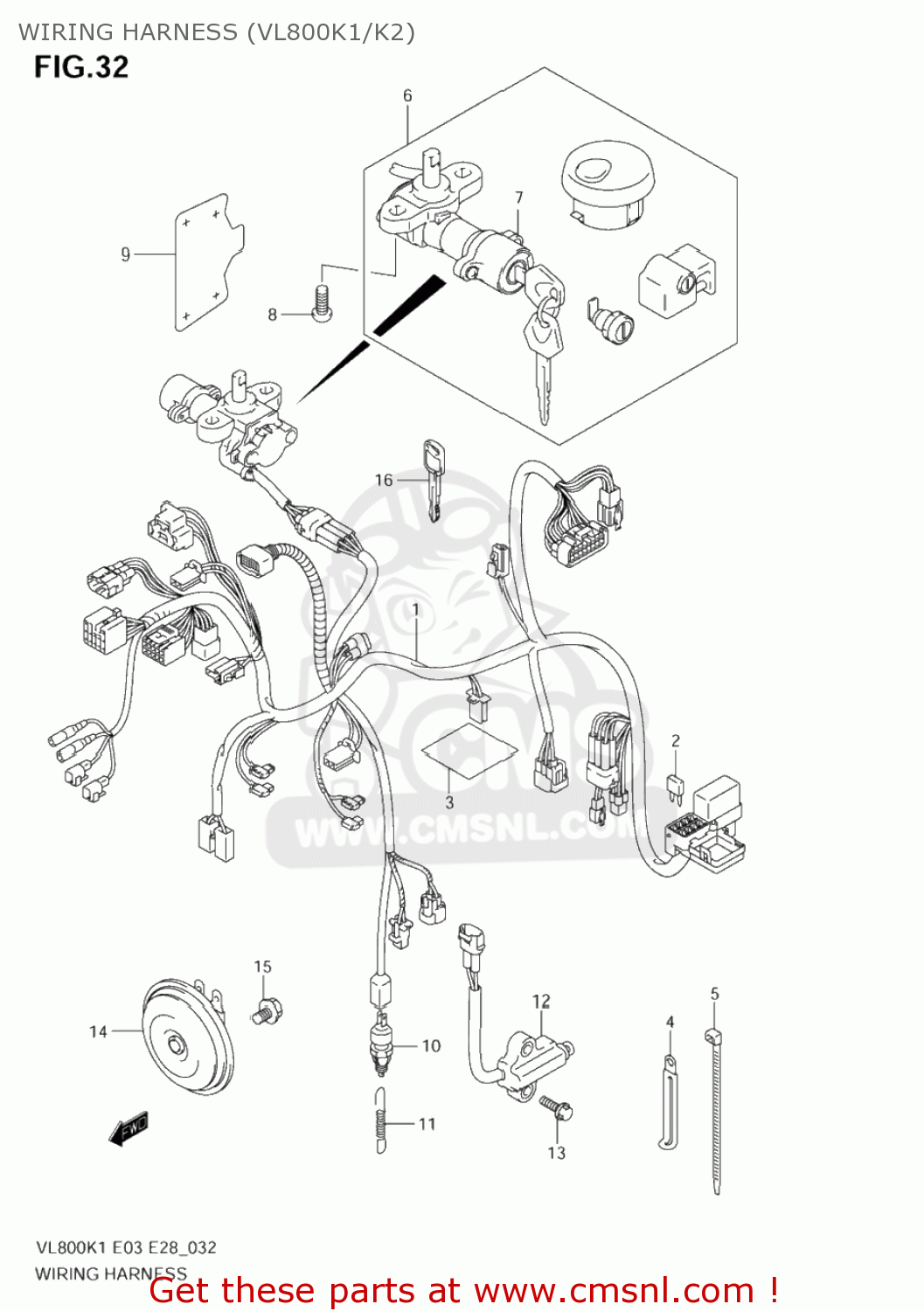

Wiring harness (vl800k1/k2) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VL800K1/K2) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

WIRING HARNESS (VL800K1/K2) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1

3661041F10
ref: 1

HARNESS,WIRING

€ 480.50

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661141F00
ref: 3

PROTECTOR,WIRING HARNESS

€ 6.00

4

0940406434
ref: 4

CLAMP(L:80 T:1.0)

€ 3.00

5-1

0940711402
ref: 5-1

CLAMP(L:90)

€ 2.50

5-2

0940714403
ref: 5-2

CLAMP(L:125)

€ 2.50

5-3

0940718402
ref: 5-3

CLAMP(L:165)

€ 2.50

5-4

0940725401
ref: 5-4

CLAMP(L:235)

€ 4.00

6-1

3700041820
ref: 6-1

LOCK SET

€ 544.50

6-2

3700041830
ref: 6-2

LOCK SET

€ 0.00

7

3710041F10
ref: 7

LOCK ASSY,STEERING

€ 171.00

8

0913908016
ref: 8

BOLT(8X20)

€ 3.50

9

3718741F00
ref: 9

PROTECTOR,IGNITION SWITCH

€ 12.00

10

3774024A00
ref: 10

SWITCH ASSY,STOP LAMP

€ 20.50

11

0944306073
ref: 11

SPRING

€ 3.00

12

3784041F00
ref: 12

SWITCH ASSY,SIDE STAND

€ 65.00

13

0155006203
ref: 13
01550-0620A

BOLT

€ 2.50

14

3850041F00
ref: 14

HORN ASSY

€ 83.50

15

0155008123
ref: 15
01550-0812A

BOLT

€ 3.50

16

3714641F10
ref: 16

KEY,BLANK

€ 26.00
