FRAME COVER (MODEL K5)

VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

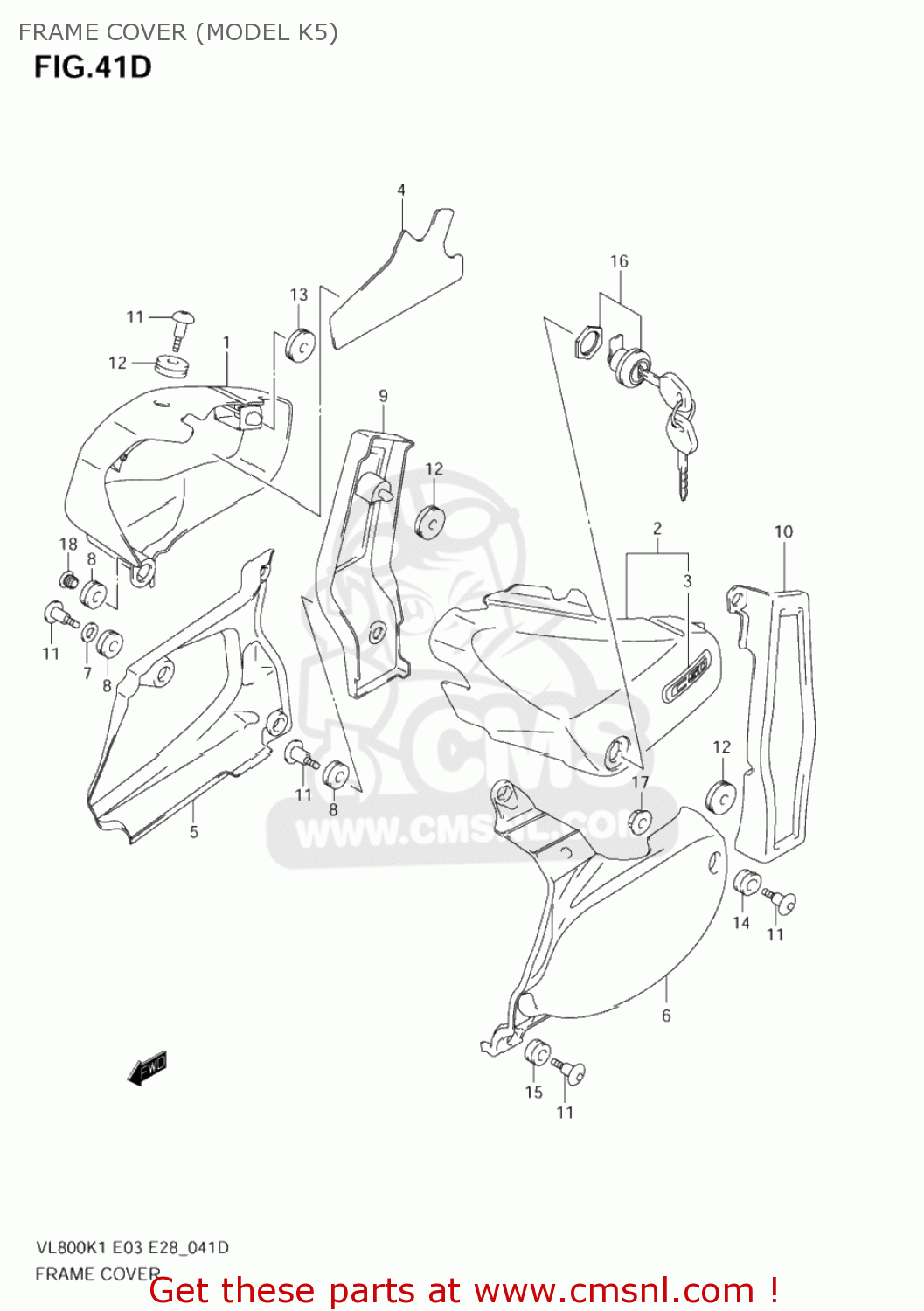

Frame cover (model k5) diagram VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FRAME COVER (MODEL K5) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

FRAME COVER (MODEL K5) VL800Z BOULEVARD C50 2005 (K5) CALIFORNIA (E33)

prices are in EUR

ref

part #

description

quantity

1-1

4711041F80YAY
ref: 1-1
47110-41F81-YAY

COVER COMP,SID

€ 188.00

1-10

4711041FF0YU7
ref: 1-10

COVER,SIDE,R(RED)

€ 174.50

1-2

4711041F80YBA
ref: 1-2
47110-41F81-YBA

COVER COMP,SID

€ 148.50

1-3

4711041F80YM6
ref: 1-3
47110-41F81-YM6

COVER COMP,SID

€ 126.50

1-4

4711041FA0YAY
ref: 1-4
47110-41FA1-YAY

COVER,SIDE,R(BLACK)

€ 92.00

1-5

4711041FE0YU7
ref: 1-5

COVER,SIDE,R(RED)

€ 0.00

1-6

4711041F90YAY
ref: 1-6
47110-41F91-YAY

COVER, FRAME RH (BLACK)

€ 0.00

1-7

4711041F90YBA
ref: 1-7

COVER,SIDE,R(BLUE)

€ 0.00

1-8

4711041F90YM6
ref: 1-8
47110-41F91-YM6

COVER, FRAME RH (SILVER)

€ 159.00

1-9

4711041FB0YAY
ref: 1-9

COVER,SIDE,R

€ 0.00

2-1

4721041F80YAY
ref: 2-1

COVER,SIDE,L(BLACK)

€ 120.50

2-2

4721041F80YBA
ref: 2-2

COVER,SIDE,L(BLUE)

€ 120.50

2-3

4721041F80YM6
ref: 2-3

COVER,SIDE,L(SILVER)

€ 131.00

2-4

4721041FA0YAY
ref: 2-4

COVER,SIDE,L(BLACK)

€ 0.00

2-5

4721041FE0YU7
ref: 2-5

COVER,SIDE,L(RED)

€ 0.00

3-1

6813141F40
ref: 3-1

EMBLEM,C50

€ 32.00

3-2

6813141F50
ref: 3-2

EMBLEM,C50T

€ 0.00

4

4716641F00
ref: 4

SHIELD,FRAME COVER

€ 7.50

5

4713041F00
ref: 5

COVER,SIDE LWR,R

€ 115.00

6

4723141F00
ref: 6

COVER,SIDE LWR,L

€ 184.00

7

0916010123
ref: 7

WASHER(10.5X20X2.3)

€ 2.00

8

0932008021
ref: 8

CUSHION

€ 4.00

9

4714141F00019
ref: 9
47141-41F01-019

COVER SIDE,REA

€ 55.50

10

4724141F00019
ref: 10

COVER,SIDE RR,L

€ 55.50

11

0913906126
ref: 11

SCREW(6X20)

€ 4.00

12

0932008018
ref: 12

CUSHION

€ 4.00

13

0932008028
ref: 13

CUSHION

€ 2.50

14

0932009501
ref: 14

CUSHION

€ 2.00

15

0932009026
ref: 15
09320-09045

CUSHION

€ 4.00

16

9570007860
ref: 16

LOCK SET,COVER

€ 76.00

17

0831610063
ref: 17
08316-1006B

NUT

€ 2.50

18

0925009001
ref: 18

CAP(OD:14)

€ 1.00
