CARBURETOR (FRONT)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

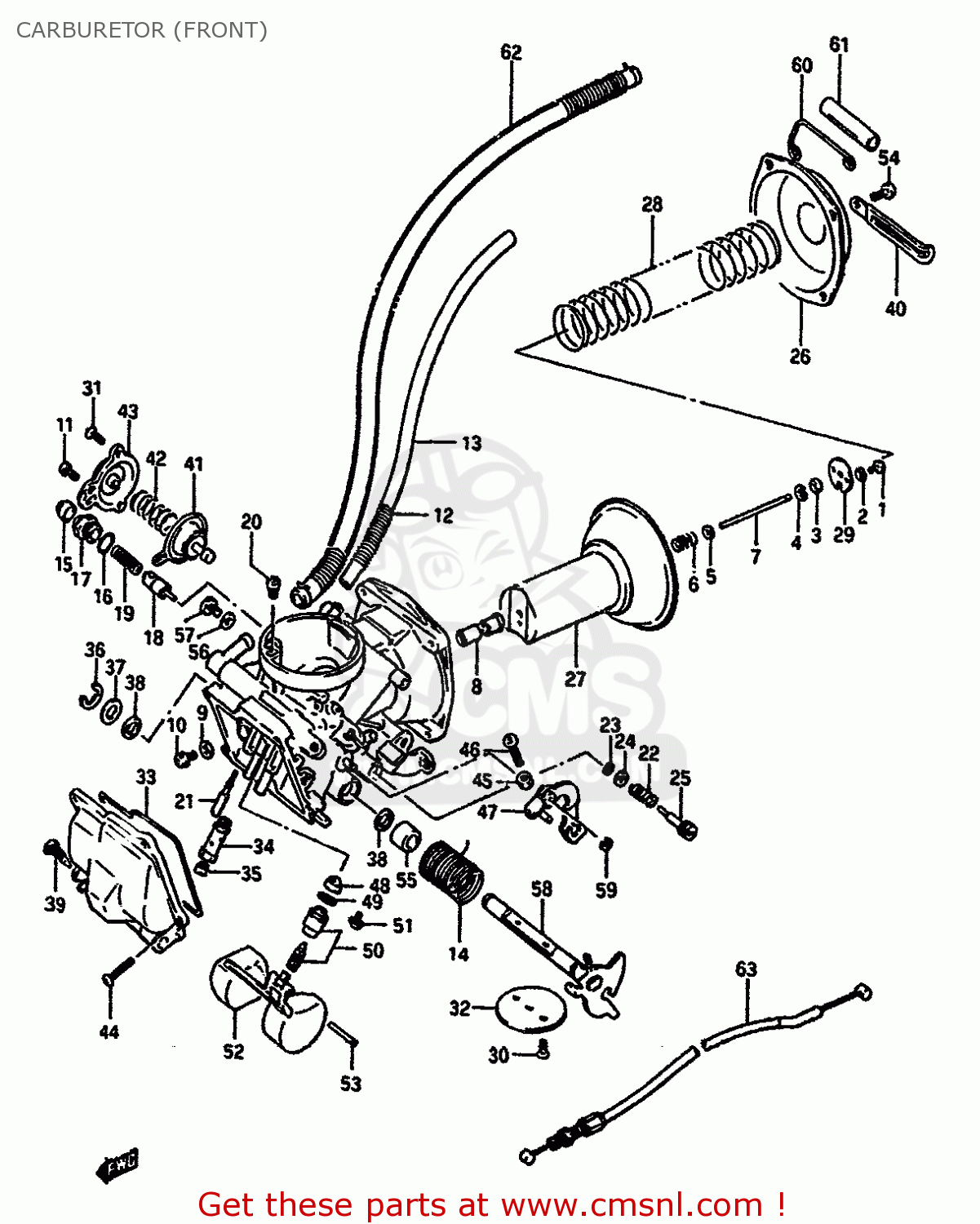

Carburetor (front) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

CARBURETOR (FRONT) VS750GLF 1990 (L) GENERAL EXPORT (E01)
CARBURETOR (FRONT) VS750GLF 1990 (L) GENERAL EXPORT (E01)
CARBURETOR (FRONT) VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
1321038A20
ref: 0
MODEL F
CARBURETOR ASSY,FRONT
€ 0.00
0
1321038A30
ref: 0
MODEL G
CARBURETOR ASSY,FRONT
€ 666.00
0
1321038A90
ref: 0
MODEL H/J/K/L/M
CARBURETOR,FR.
€ 666.00
0
1321039A20
ref: 0
MODEL J/K/L E18
CARBURETOR ASSY,FRONT
€ 0.00
0
1321039A30
ref: 0
MODEL L/M E22 MODEL
CARBURETOR ASSY,FRONT
€ 666.00
1
0211203066
ref: 1
SCREW
€ 2.00
2
0832121036
ref: 2
LOCK WASHER
0832121036
€ 1.50
3
1338747010
ref: 3
RING
1338747010
€ 7.50
4
1339410010
ref: 4
CLIP
1339410010
€ 4.50
5
1338244030
ref: 5
WASHER
1338244030
€ 3.50
6
1338844030
ref: 6
SPRING
1338844030
€ 6.00
7-1
1338338A20
ref: 7-1
MODEL F
NEEDLE,JET
1338338A20
€ 12.50
7-2
1338338A30
ref: 7-2
MODEL G/H/J/K/L/M
NEEDLE,JET
1338338A30
€ 17.50
7-3
1338339A00
ref: 7-3
MODEL J/K/L E18
NEEDLE,JET (5032-3)
€ 0.00
8-1
0949400503
ref: 8-1
MODEL F
JET,NEEDLE (P-3)
€ 26.00
8-2
0949400516
ref: 8-2
MODEL G/H/J/K/L/M-09
JET,NEEDLE (P-2)
€ 26.50
8-3
0949400588
ref: 8-3
MODEL J/K/L E18
JET,NEEDLE(P-2)
0949400588
€ 26.50
9
1333244080
ref: 9
WASHER,NEEDLE NOZZLE
€ 2.50
10
1360505A10
ref: 10
SCREW
1360505A10
€ 8.50
11
0211204106
ref: 11
SCREWM4X0.7X10
€ 1.00
12
1368938A00
ref: 12
SPRING
1368938A00
€ 8.50
13
1368438A20
ref: 13
HOSE
€ 13.00
14-1
1357338A00
ref: 14-1
MODEL F/G
SPRING
€ 0.00
14-2
1357338A01
ref: 14-2
MODEL H/J/K/L/M
SPRING,SHAFT RETURN
€ 0.00
15
1368104010
ref: 15
CAP
1368104010
€ 3.00
16
1327847090
ref: 16
O RING
1327847090
€ 2.00
17
1341838A00
ref: 17
HOLDER,GUIDE
1341838A00
€ 11.50
18
1341138400
ref: 18
PLUNGER
€ 11.50
19
1341708210
ref: 19
SPRING
1341708210
€ 4.50
20-1
0949275002
ref: 20-1
MODEL F
JET,PILOT
€ 9.00
20-2
0949265005
ref: 20-2
MODEL G/H/J/K/L/M
JET,AIR(65)
0949265005
€ 7.50
20-3
0949277002
ref: 20-3
MODEL J/K/L E18
JET,PILOT AIR,7
€ 13.50
21-1
0949232004
ref: 21-1
JET,PILOT(32.5)
0949232004
€ 13.50
21-2
0949225007
ref: 21-2
MODEL J/K/L E18
JET,PILOT(25)
0949225007
€ 8.50
22
1326847070
ref: 22
SPRING
1326847070
€ 5.00
23
1329529900
ref: 23
O RING,PILOT AIR SCREW
1329529900
€ 4.00
24
1329129900
ref: 24
WASHER
1329129900
€ 2.00
25-1
1327947080
ref: 25-1
SCREW,PILOT AIR
1327947080
€ 11.50
25-2
1327947080
ref: 25-2
MODEL L/M E22
SCREW,PILOT AIR
1327947080
€ 11.50
26
1350238A00
ref: 26
COVER,DIAPHRAGM
1350238A00
€ 34.00
27
1350005A10
ref: 27
DIAPHRAGM,CARBURETOR
1350005A10
€ 178.00
28
1350305A10
ref: 28
SPRING,DIAPHRAGM
1350305A10
€ 12.00
29
1338937400
ref: 29
PLATE
1338937400
€ 5.50
30
1360444080
ref: 30
SCREW
1360444080
€ 3.50
31
1360338A00
ref: 31
SCREW
€ 2.50
32
1355138A00
ref: 32
VALVE,THROTTLE
€ 0.00
33
1325138A00
ref: 33
O RING,FLOAT CHAMBER
1325138A00
€ 6.50
34
1338505A11
ref: 34
HOLDER,MAIN JET
1338505A11
€ 14.00
35-1
0949126013
ref: 35-1
MODEL F
JET,MAIN (132.5)
0949126013
€ 18.50
35-2
0949120010
ref: 35-2
MODEL G/H/J/K/L/M-09
JET
€ 7.50
35-3
0949120022
ref: 35-3
MODEL J/K/L E18
JET,MAIN,100
0949120022
€ 7.50
36
1361744080
ref: 36
E RING
1361744080
€ 3.50
37
1355747070
ref: 37
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
38
1355605A10
ref: 38
SEAL,THROTTLE SHAFT
1355605A10
€ 3.50
39
1324702340
ref: 39
PLUG,DRAIN
1324702340
€ 5.50
40
0940406401
ref: 40
CLAMP L:35
0940406401
€ 2.50
41
1348005A10
ref: 41
DIAPHRAGM ASSY
1348005A10
€ 54.50
42
1348105A10
ref: 42
SPRING
€ 5.50
43
1348438A00
ref: 43
COVER
1348438A00
€ 20.50
44
1360104148
ref: 44
SCREW
1360104148
€ 2.50
45
1360705A10
ref: 45
NUT
€ 2.00
46
0211204306
ref: 46
SCREW
€ 2.00
47-1
1355438A00
ref: 47-1
MODEL F/G
LEVER,ASSY
€ 15.00
47-2
1355438B10
ref: 47-2
MODEL H/J/K/L/M
LEVER,ASSEMBLY
€ 38.50
48
1337684110
ref: 48
FILTER
€ 6.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
1337444080
€ 6.00
50
1337001401
ref: 50
VALVE ASSY,NEEDLE
1337001401
€ 57.50
51
1360205A10
ref: 51
SCREW
1360205A10
€ 4.00
52
1325005A10
ref: 52
FLOAT
1325005A10
€ 34.00
53
1325420010
ref: 53
PIN,FLOAT
1325420010
€ 3.00
54
0211205106
ref: 54
SCREW 5X10
€ 2.00
55
1357401400
ref: 55
RING,THROTTLE VALVE
€ 0.00
56
1353138A00
ref: 56
WASHER
€ 2.00
57
1360573000
ref: 57
SCREW
1360573000
€ 10.50
58
1355038A00
ref: 58
SHAFT ASSEMBLY,THROTTLE
€ 0.00
59
1329849000
ref: 59
E-RING
€ 2.00
60
1367138A00
ref: 60
CLIP
1367138A00
€ 10.50
61
1368438A00
ref: 61
HOSE
€ 18.00
62-1
1368338A10
ref: 62-1
MODEL F/G
HOSE
€ 70.00
62-2
1368338A20
ref: 62-2
MODEL H/J/K/L/M
HOSE ASSEMBLY
1368338A20
€ 70.00
63
1364138A00
ref: 63
CABLE,IDLE SYNCRO
1364138A00
€ 16.50
