CRANKSHAFT
VS750GLF 1990 (L) GENERAL EXPORT (E01)

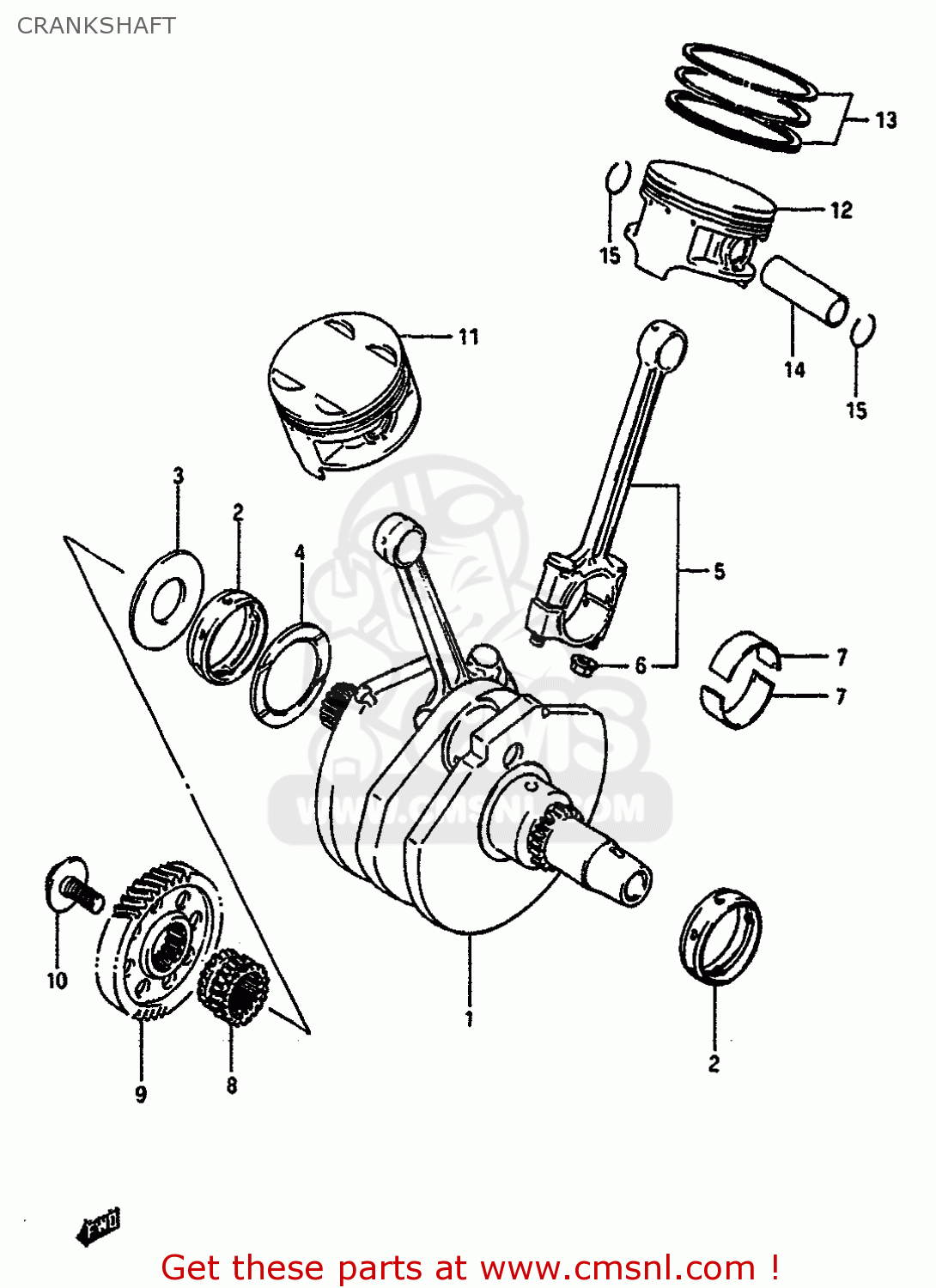

Crankshaft diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)
CRANKSHAFT VS750GLF 1990 (L) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1222038A11
ref: 1-1
MODEL F/G/H/J-12220-
CRANKSHAFT
€ 1,417.50
1-2
1222038A12
ref: 1-2
MODEL K/L/M
CRANKSHAFT
€ 1,417.50
2
1222938A00
ref: 2
INCLUDED CRANKCASE S
METAL,CRANKSHAFT
€ 22.50
3
1265238A00
ref: 3
WASHER,CRANK THRUST
€ 47.00
4-1
0916048001
ref: 4-1
WASHER(48.1X64X1.94)
€ 18.50
4-2
0916048002
ref: 4-2
WASHER(48.1X64X1.96)
€ 17.00
4-3
0916048003
ref: 4-3
WASHER(48.1X64X1.99)
€ 17.00
4-4
0916048004
ref: 4-4
WASHER(48.1X64X2.01)
€ 17.00
4-5
0916048005
ref: 4-5
WASHER(48.1X64X2.04)
€ 17.00
4-6
0916048006
ref: 4-6
WASHER(48.1X64X2.06)
€ 17.00
4-7
0916048007
ref: 4-7
WASHER(48.1X64X2.09)
€ 17.00
4-8
0916048008
ref: 4-8
WASHER(48.1X64X2.11)
€ 17.00
4-9
0916048009
ref: 4-9
WASHER(48.1X64X2.14)
€ 17.00
4-10
0916048010
ref: 4-10
WASHER(48.1X64X2.16)
€ 17.00
5
1216038A13
ref: 5
CONNECTING ROD ASSEMBLY
€ 118.50
6
0915909001
ref: 6
NUT
€ 4.50
7-1
1216438A010A0
ref: 7-1
BEARING,CRANK PIN
€ 11.50
7-2
1216438A010B0
ref: 7-2
BEARING,CRANK PIN
€ 12.50
7-3
1216438A010C0
ref: 7-3
BEARING,CRANK PIN
€ 12.50
7-4
1216438A010D0
ref: 7-4
BEARING,CRANK PIN
€ 14.00
7-5
1216438A010E0
ref: 7-5
BEARING,CRANK PIN
€ 12.50
8
1273138A00
ref: 8
SPROCKET,CAM CHAIN DRIVE,R
€ 34.00
9
2111138A00
ref: 9
GEAR,PRIMARY DRIVE
€ 99.50
10
0910312013
ref: 10
BOLT(12X28)
€ 6.00
11-1
1211138A12
ref: 11-1
PISTON,FR
€ 73.50
11-2
1211138A12050
ref: 11-2
OPT
PISTON,FRONT (OS:0.5)
€ 102.00
11-3
1211138A12100
ref: 11-3
OPT
PISTON
€ 123.00
12-1
1211238A12
ref: 12-1
PISTON,REAR
€ 81.50
12-2
1211238A12050
ref: 12-2
OPT
PISTON
€ 107.00
12-3
1211238A12100
ref: 12-3
OPT
PISTON
€ 127.00
13-1
1214038A20
ref: 13-1
RING SET,PISTON
€ 59.00
13-2
1214038A20050
ref: 13-2
OPT
RING SET,PISTON (OS:0.5)
€ 36.00
13-3
1214038A20100
ref: 13-3
OPT
RING SET,PISTON (OS:1.0)
€ 0.00
14
1215124A00
ref: 14
PIN,PISTON
€ 18.50
15
0938120004
ref: 15
CIRCLIP,PISTON PIN
€ 2.00
