CRANKCASE COVER

VS750GLF 1990 (L) GENERAL EXPORT (E01)

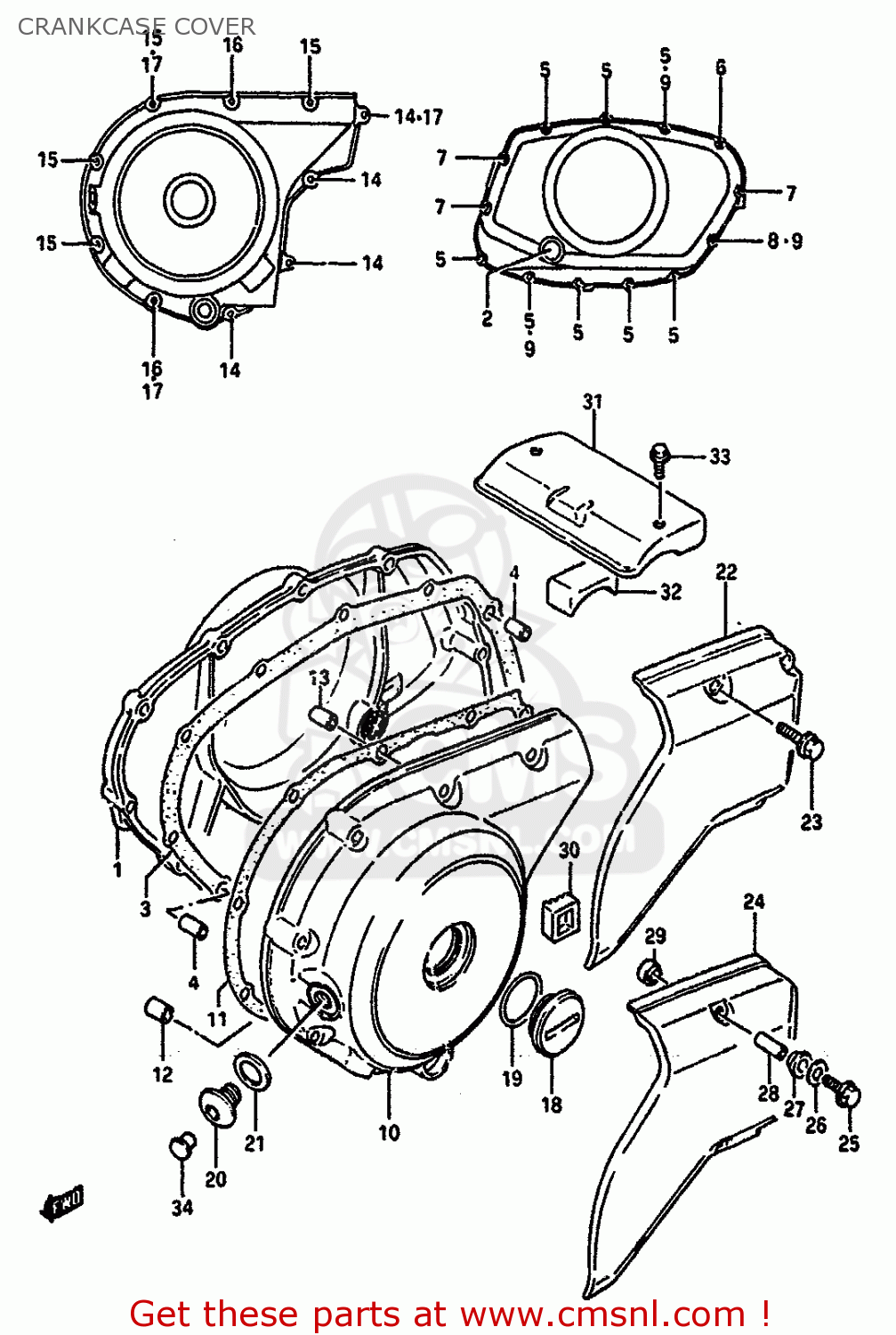

Crankcase cover diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

CRANKCASE COVER VS750GLF 1990 (L) GENERAL EXPORT (E01)
CRANKCASE COVER VS750GLF 1990 (L) GENERAL EXPORT (E01)
CRANKCASE COVER VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1134038A00
ref: 1
COVER,CLUTCH
1134038A00
€ 308.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3-1
1148238A00
ref: 3-1
GASKET,CLUTCH COVER (NAS)
1148238A00
€ 15.50
3-2
1148238A00H17
ref: 3-2
E17,E77 (SWEDEN), E1
GASKET,CLUTCH COVER (NAS)
1148238A00H17
€ 15.50
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0154706307
ref: 5
BOLT
0154706307
€ 2.50
6
0154706357
ref: 6
BOLT
0154706357
€ 2.50
7
0154706457
ref: 7
BOLT
0154706457
€ 2.50
8
0154706607
ref: 8
BOLT
0154706607
€ 2.50
9
0916806023
ref: 9
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
10
1135138A01
ref: 10
COVER
€ 325.50
11-1
1148338A00
ref: 11-1
GASKET,MAGNETO COVER (NAS)
1148338A00
€ 11.50
11-2
1148338A00H17
ref: 11-2
E17,E77 (SWEDEN), E1
GASKET,GENERATOR COVER (NAS)
1148338A00H17
€ 11.50
12
0920611005
ref: 12
PIN (11X20)(SUS)
€ 6.50
13
0421109189
ref: 13
PIN
0421109189
€ 2.00
14
0154706307
ref: 14
BOLT
0154706307
€ 2.50
15
0154706407
ref: 15
BOLT
0154706407
€ 2.50
16
0154706507
ref: 16
BOLT
0154706507
€ 2.50
17
0916806023
ref: 17
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
18
0925936008
ref: 18
Chrome Crankshaft Plug
0925936008
€ 8.50
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
20
0924814005
ref: 20
PLUG,14X12
0924814005
€ 5.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
22
1136138A10
ref: 22
MODEL F
COVER,SECONDARY DRIVE
€ 111.50
23
0154706457
ref: 23
MODEL F
BOLT
0154706457
€ 2.50
24
1136138A50
ref: 24
MODEL G/H/J/K/L/M
COVER,SECONDARY GEAR CASE
1136138A50
€ 134.00
25
0154706457
ref: 25
MODEL G/H/J/K/L/M
BOLT
0154706457
€ 2.50
26
0916006097
ref: 26
MODEL G/H/J/K/L/M
WASHER
0916006097
€ 2.00
27
0916109006
ref: 27
MODEL G/H/J/K/L/M
WASHER(8.7X15X2.1)
0916109006
€ 2.50
28
0918006160
ref: 28
MODEL G/H/J/K/L/M
SPACER
0918006160
€ 3.50
29
0916109005
ref: 29
MODEL G/H/J/K/L/M
WASHER(8.7X16X5)
0916109005
€ 2.50
30
1136938A00
ref: 30
DAMPER,SECONDARY COVER
€ 7.50
31
3121038A00
ref: 31
COVER,STARTER MOTOR
€ 22.00
32
3121238A00
ref: 32
DAMPER,MOTOR COVER
€ 4.50
33
0154705087
ref: 33
BOLT
0154705087
€ 2.00
34
0925008014
ref: 34
CAP(OD:12)
0925008014
€ 3.50
