FUEL TANK (MODEL L/M)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

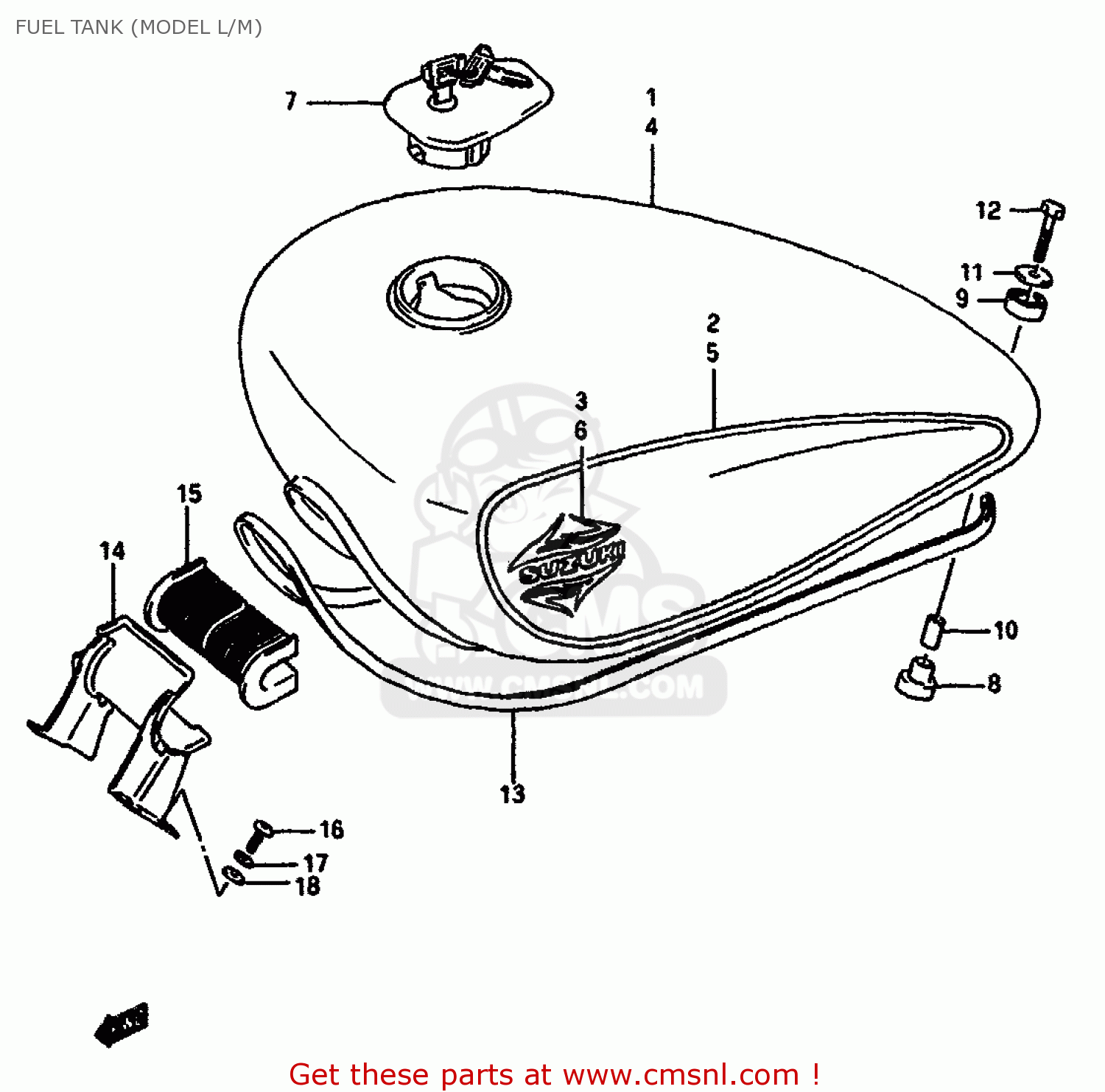

Fuel tank (model l/m) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

FUEL TANK (MODEL L/M) VS750GLF 1990 (L) GENERAL EXPORT (E01)
FUEL TANK (MODEL L/M) VS750GLF 1990 (L) GENERAL EXPORT (E01)
FUEL TANK (MODEL L/M) VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
4410038A6020U
ref: 1-1
MODEL L
TANK ASSEMBLY,FUEL
€ 800.00
1-2
4410038A6033J
ref: 1-2
MODEL L
TANK ASSEMBLY,FUEL
€ 933.50
1-3
4410038A7020U
ref: 1-3
MODEL L E22
TANK ASSEMBLY,FUEL
€ 800.00
1-4
4410038A7033J
ref: 1-4
MODEL L E22
TANK ASSEMBLY,FUEL
€ 933.50
2-1
6811038A103WH
ref: 2-1
MODEL L FOR 20U
TAPE SET,FUEL TANK
€ 78.50
2-2
6811038A103WJ
ref: 2-2
MDOEL L FOR 33J
TAPE SET,FUEL TANK
€ 75.50
3-1
6811138A200PD
ref: 3-1
MODEL L FOR 20U
EMBLEM
€ 39.00
3-2
6811138A200PE
ref: 3-2
MODEL L FOR 33J
EMBLEM
6811138A200PE
€ 33.00
4-1
4410038A9014W
ref: 4-1
MODEL M
TANK ASSEMBLY,FUEL
€ 405.00
4-2
4410038A9019A
ref: 4-2
MODEL M
TANK ASSEMBLY,FUEL
€ 869.00
4-3
4410039A0014W
ref: 4-3
MODEL M E22
TANK ASSEMBLY,FUEL
€ 405.00
4-4
4410039A0019A
ref: 4-4
MODEL M E22
TANK ASSEMBLY,FUEL
€ 869.00
5-1
6811038A10F63
ref: 5-1
MODEL M FOR 14W
TAPE SET,FUEL TANK
€ 85.00
5-2
6811038A10F64
ref: 5-2
MODEL M FOR 19A
TAPE SET,FUEL TANK
6811038A10F64
€ 97.50
6-1
6811138A300YR
ref: 6-1
MODEL M FOR 14W
EMBLEM,FUEL TANK
€ 23.50
6-2
6811138A300YS
ref: 6-2
MODEL M FOR 19A
EMBLEM,FUEL TANK
€ 22.50
7-1
4420038A00KEY
ref: 7-1
MODEL L
CAP SET,FUEL TANK
4420038A00KEY
€ 107.50
7-2
4420038820
ref: 7-2
MODEL M
CAP SET,FUEL TANK
4420038820
€ 107.50
8
0932010020
ref: 8
CUSHION
0932010020
€ 4.00
9
0932014013
ref: 9
CUSHION
0932014013
€ 3.00
10
0918006091
ref: 10
SPACER (6.4X9X21.5)
0918006091
€ 5.50
11
0916006072
ref: 11
WASHER (6.5X24X1.6)
0916006072
€ 2.00
12
0912806055
ref: 12
SCREW
0912806055
€ 2.50
13
6824127A00
ref: 13
MOLDING,FUEL TANK
6824127A00
€ 23.00
14-1
4425038A01019
ref: 14-1
MODEL L
BRACKET,FUEL TANK FR
4425038A01019
€ 56.00
14-2
4425038A0120U
ref: 14-2
MODEL L
BRACKET COMP,FUEL TANK
€ 56.00
14-3
4425038A0114W
ref: 14-3
MODEL M
BRACKET COMP,FUEL TANK
€ 56.00
14-4
4425038A0119A
ref: 14-4
MODEL M
BRACKET COMP,FUEL TANK
€ 56.00
15
4451138A01
ref: 15
CUSHION,FUEL TANK FR
4451138A01
€ 10.50
16
0214206164
ref: 16
SCREW
0214206164
€ 2.50
17
0832121064
ref: 17
WASHER,LOCK
0832121064
€ 2.00
18
0832221064
ref: 18
WASHER
0832221064
€ 2.00
15
0832121064
ref: 15
WASHER,LOCK
0832121064
€ 2.00
16
0832221064
ref: 16
WASHER
0832221064
€ 2.00
17
8693273060
ref: 17
E24,E75 (AUSTRALIA)
LABEL,FUEL CAUTION
8693273060
€ 4.00
