REAR WHEEL (VS750GLEFH/GLEPH)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

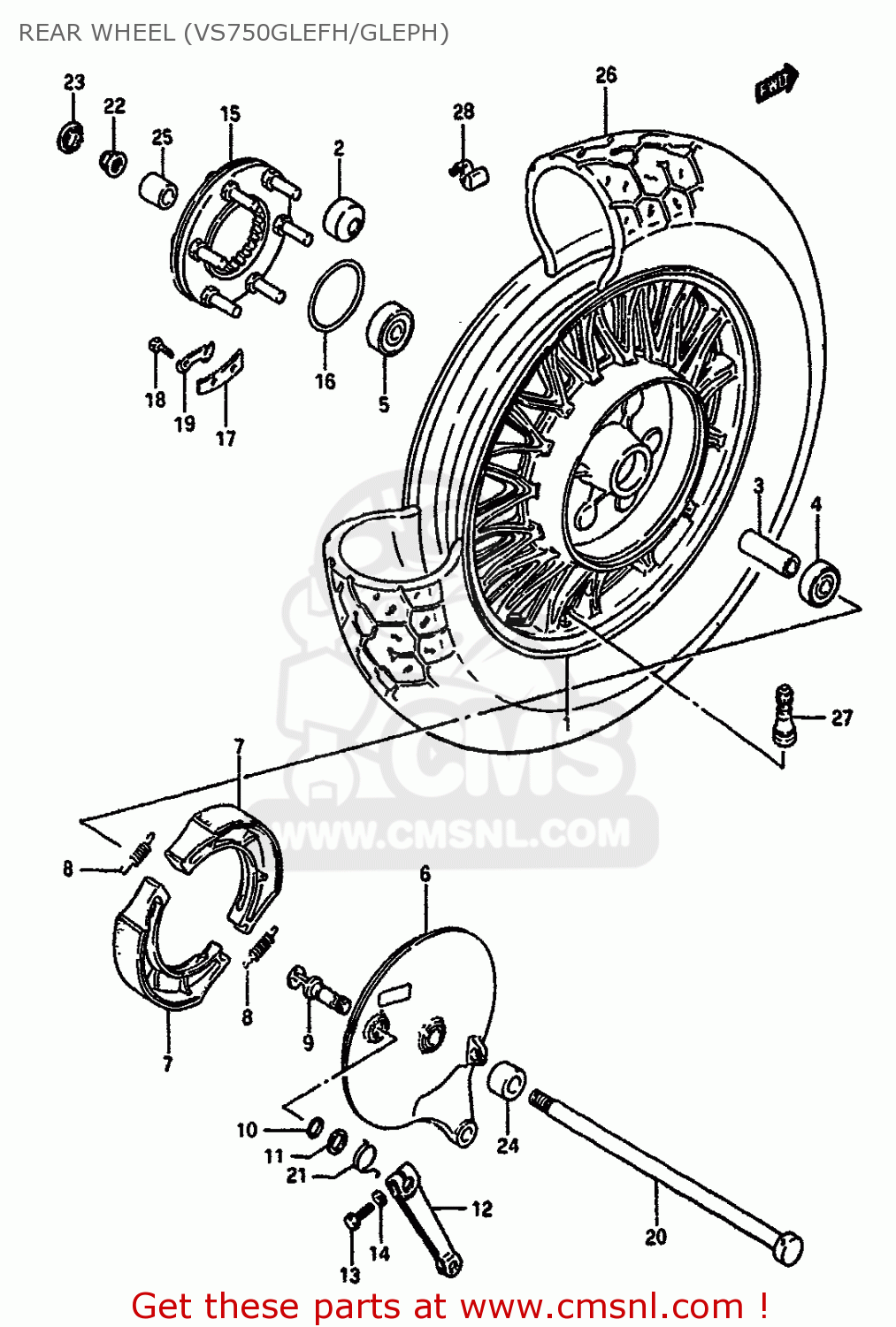

Rear wheel (vs750glefh/gleph) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

REAR WHEEL (VS750GLEFH/GLEPH) VS750GLF 1990 (L) GENERAL EXPORT (E01)
REAR WHEEL (VS750GLEFH/GLEPH) VS750GLF 1990 (L) GENERAL EXPORT (E01)
REAR WHEEL (VS750GLEFH/GLEPH) VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
641003883023W
ref: 1
SILVER
WHEEL SET,REAR (3.00-15)
€ 358.50
2
0931912019
ref: 2
BUSH
0931912019
€ 10.50
3
6473137200
ref: 3
SPACER,REAR HUB BEARING
€ 19.00
4
0813362037
ref: 4
BEARING
0813362037
€ 24.50
5
0814363037
ref: 5
BEARING
0814363037
€ 23.00
6
6421038A20
ref: 6
PANEL,REAR BRAKE ANCHOR
€ 253.00
7
6441007A01
ref: 7
SHOE SET,BRAKE (MCA)
6441007A01
€ 56.50
8
5542030000
ref: 8
SPRING,BRAKE SHOE
5542030000
€ 3.50
9
6444038A00
ref: 9
CAM,RR BRAKE
6444038A00
€ 43.00
10
0928015001
ref: 10
O-RING,BOSS
0928015001
€ 2.00
11
0916015001
ref: 11
WASHER (15X24X1.6)
0916015001
€ 2.50
12
6445138A01
ref: 12
LEVER,RR BRAKE CAM
6445138A01
€ 33.00
13
0110706257
ref: 13
BOLT
€ 2.00
14
0832121067
ref: 14
WASHER,LOCK
0832121067
€ 2.50
15
6468007A01
ref: 15
JOINT ASSEMBLY,REAR HUB DRUM
€ 181.50
16
0928065003
ref: 16
O RING(D:2.1,ID:65)
0928065003
€ 2.50
17
6467745110
ref: 17
WASHER,THRUST(T:1.6)
6467745110
€ 2.50
18
0911906049
ref: 18
BOLT(6X16)
0911906049
€ 1.50
19
0916906030
ref: 19
WASHER
0916906030
€ 2.00
20
6471138A10
ref: 20
AXLE,REAR
€ 65.50
21
0944833006
ref: 21
SPRING
0944833006
€ 11.00
22
0831931148
ref: 22
NUT
0831931148
€ 9.00
23
6479138B00
ref: 23
CAP,RR AXLE,R
6479138B00
€ 83.50
24
6474138A21
ref: 24
SPACER,REAR AXLE,RIGHT
€ 20.00
25
6477234200
ref: 25
SPACER,REAR AXLE,LEFT
6477234200
€ 14.50
26
6510038A50
ref: 26
BRIDGESTONE
TIRE
€ 151.00
27
4313038A20
ref: 27
VALVE ASSEMBLY,WHEEL RIM,P
€ 0.00
28-1
5541100A00
ref: 28-1
BALANCER,WHEEL (10G)
€ 6.50
28-2
5541200A00
ref: 28-2
BALANCER,WHEEL
€ 7.00
28-3
5541300A00
ref: 28-3
BALANCER,WHEEL
€ 4.00
