STARTING MOTOR (MODEL M)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

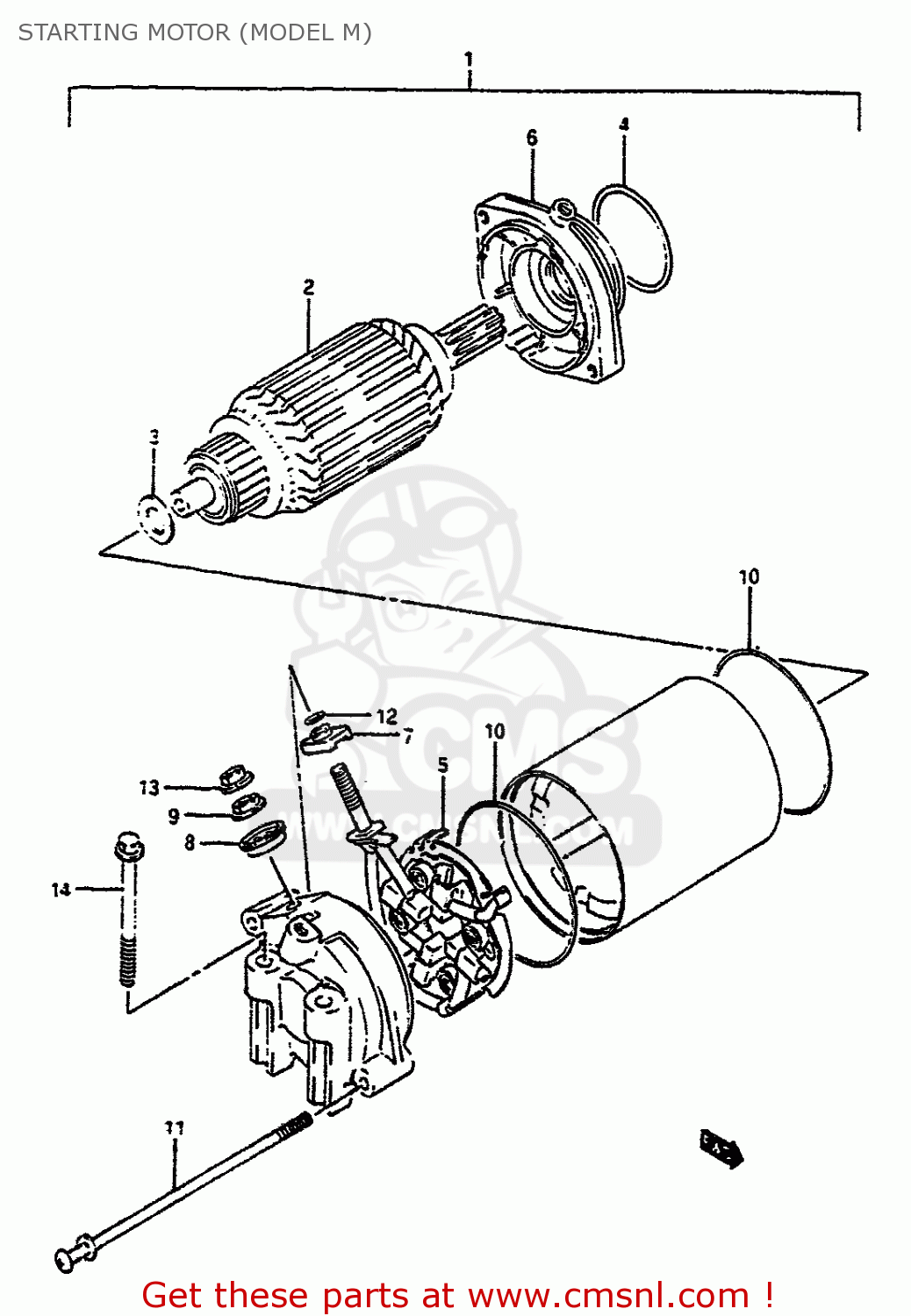

Starting motor (model m) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

STARTING MOTOR (MODEL M) VS750GLF 1990 (L) GENERAL EXPORT (E01)
STARTING MOTOR (MODEL M) VS750GLF 1990 (L) GENERAL EXPORT (E01)
STARTING MOTOR (MODEL M) VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
3110045C00
ref: 1
MOTOR ASSEMBLY,STARTING
€ 472.00
2
3131045C00
ref: 2
ARMATURE
€ 127.00
3
3136147010
ref: 3
SHIM,ARMATURE
€ 3.50
4
3114338300
ref: 4
O RING
3114338300
€ 3.50
5
3113245C00
ref: 5
HOLDER SET,BRUSH
3113245C00
€ 46.00
6
3115038A00
ref: 6
BRACKET SET
3115038A00
€ 79.50
7
3117238300
ref: 7
BUSHING
3117238300
€ 4.00
8
3117388C00
ref: 8
BUSHING
3117388C00
€ 6.00
9
0831032068
ref: 9
NUT
€ 2.50
10
3126444110
ref: 10
O RING
3126444110
€ 8.00
11
3128138A00
ref: 11
BOLT
€ 5.00
12
3115638A00
ref: 12
O RING
3115638A00
€ 8.00
13
0836135066
ref: 13
NUT
€ 2.00
14
0154706607
ref: 14
BOLT
0154706607
€ 2.50
10-1
3113038A00
ref: 10-1
MODEL F/G
TERMINAL SET,BRUSH
€ 6.00
10-2
3113048B00
ref: 10-2
MODEL H/J/K/L
BOLT
€ 4.50
11-1
0831022067
ref: 11-1
MODEL F/G
NUT 6MM
0831022067
€ 2.50
11-2
3114548B00
ref: 11-2
MODEL H/J/K/L
NUT
€ 1.50
12
3126444110
ref: 12
O RING
3126444110
€ 8.00
13
3128138A00
ref: 13
BOLT
€ 5.00
14
3115638A00
ref: 14
O RING
3115638A00
€ 8.00
15
0831012066
ref: 15
NUT
0831012066
€ 2.00
15A
0836135066
ref: 15A
NUT
€ 2.00
16
0832121066
ref: 16
WASHER,LOCK
0832121066
€ 2.00
17
0154706607
ref: 17
BOLT
0154706607
€ 2.50
