STEERING STEM (MODEL J/K/L/M)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

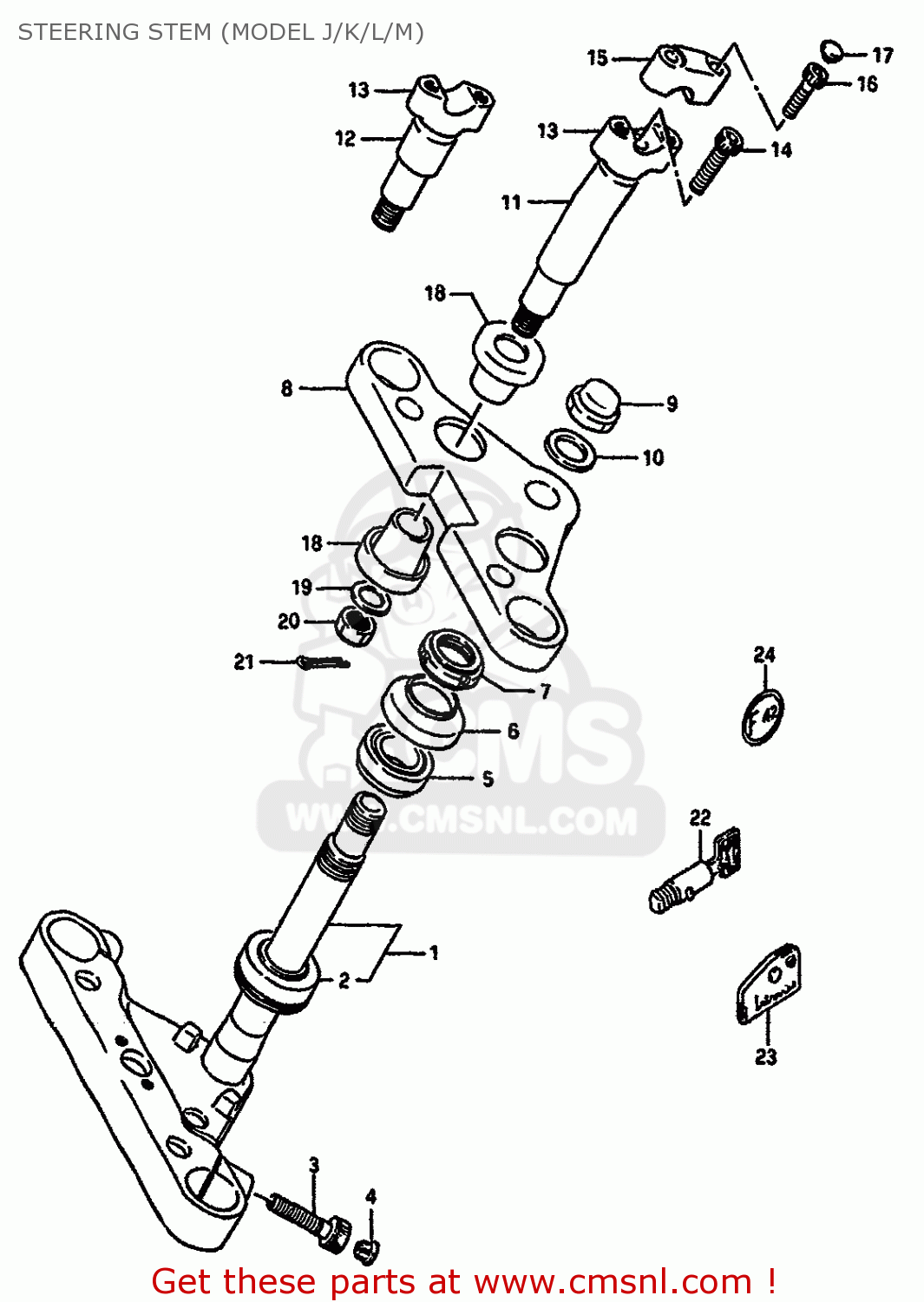

Steering stem (model j/k/l/m) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

STEERING STEM (MODEL J/K/L/M) VS750GLF 1990 (L) GENERAL EXPORT (E01)

STEERING STEM (MODEL J/K/L/M) VS750GLF 1990 (L) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

5141039A00
ref: 1-1

STEM,STEERING

€ 594.00

1-2

5141039A20
ref: 1-2
E2,E4,E15,E16,E17,E1

STEM,STEERING

€ 594.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

5135238A00
ref: 3

BOLT,STEERING STEM HEAD

€ 4.50

4

0925008014
ref: 4

CAP(OD:12)

€ 3.50

5

0926525008
ref: 5

TAPER,ROLLER BEARING

€ 48.50

6

5164349001
ref: 6

DUST SEAL,STEERING,UPPER

€ 7.50

7

5163128000
ref: 7

NUT,STEERING STEM(25X44X10)

€ 12.50

8

5131139A00
ref: 8

BRACKET,UPR

€ 446.50

9

5135338A01
ref: 9

NUT,CAP

€ 21.50

10

5135438A01
ref: 10

WASHER

€ 3.00

11

5623138A40
ref: 11
VS750GLFJ/GLFK

STAY,HANDLE

€ 41.50

12

5623138A50
ref: 12
VS750GLPJ/GLPK/GLPL/

STAY,HANDLE

€ 49.50

13

5622138A01
ref: 13

HOLDER,HANDLE LWR

€ 65.00

14

0711010257
ref: 14

BOLT

€ 3.00

15

5621138A01
ref: 15

HOLDER,HANDLE UPR

€ 45.00

16

0711008305
ref: 16

BOLT, REAR (8X30)

€ 3.00

17

0925006009
ref: 17

CAP(OD:14.5)

€ 3.50

18

5624038A40
ref: 18

CUSHION

€ 31.50

19

5135438A40
ref: 19

WASHER

€ 9.00

20

0915910027
ref: 20

NUT

€ 3.00

21

5118839A00
ref: 21

PIN

€ 4.50

22

5190038810
ref: 22

LOCK SET,STEERING

€ 168.50

23

5192038A00
ref: 23

CASE,STEERING KEY

€ 10.50

24

5191545000
ref: 24
E17,E77

LABEL,STEERING LOCK

€ 1.50
