OIL PUMP-FUEL PUMP

VS750GLF 1990 (L) GENERAL EXPORT (E01)

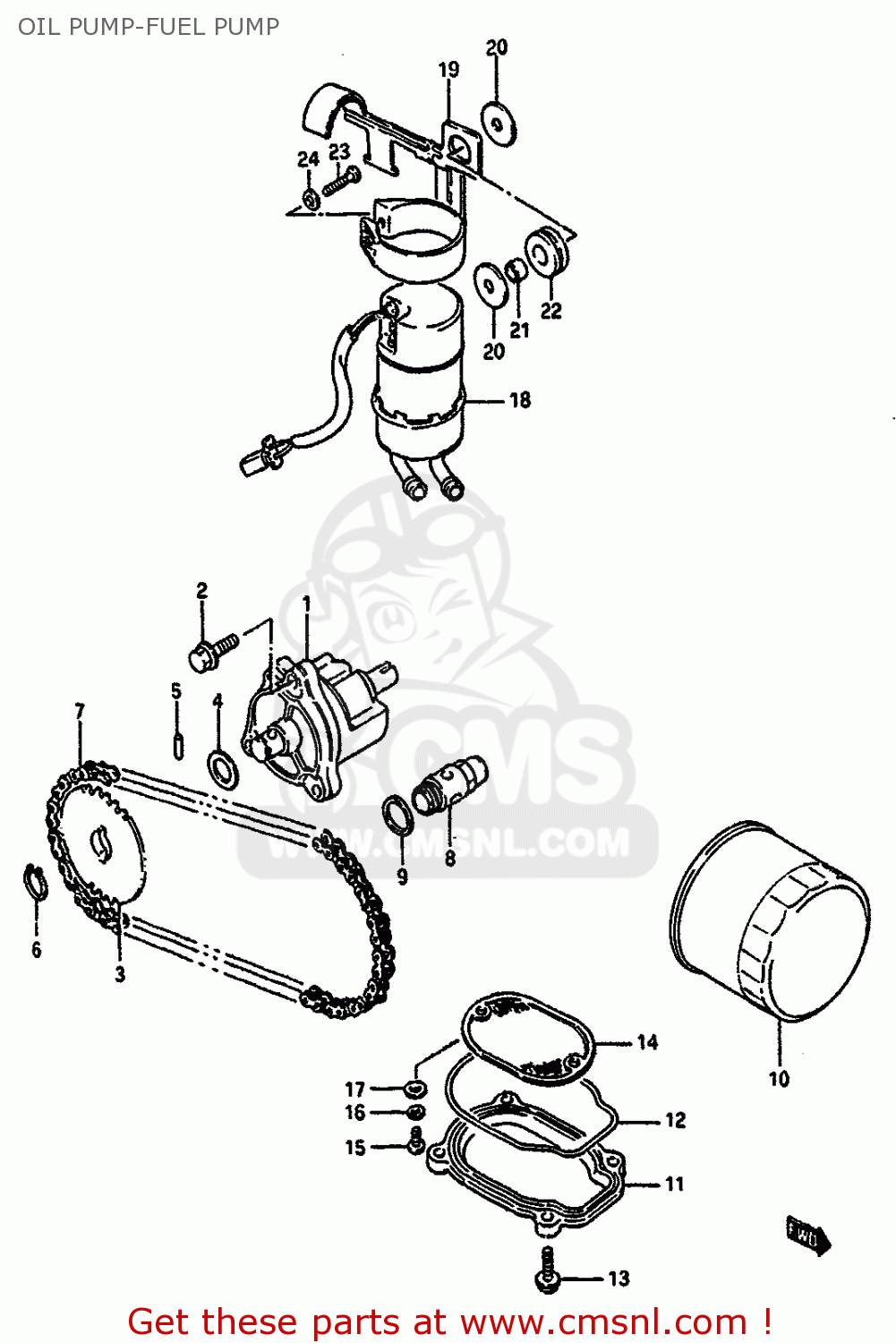

Oil pump-fuel pump diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

OIL PUMP-FUEL PUMP VS750GLF 1990 (L) GENERAL EXPORT (E01)
OIL PUMP-FUEL PUMP VS750GLF 1990 (L) GENERAL EXPORT (E01)
OIL PUMP-FUEL PUMP VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1640038A01
ref: 1
PUMP ASSY,ENGINE OIL
1640038A01
€ 148.00
2
0151706257
ref: 2
BOLT 6X25
€ 2.50
3
1633138A00
ref: 3
SPROCKET,OIL PUMP DRIVEN
1633138A00
€ 21.00
4
0822112205
ref: 4
SHIM
0822112205
€ 1.50
5
0926105006
ref: 5
PIN(5X18)
0926105006
€ 1.50
6
0833131128
ref: 6
CIRCLIP
0833131128
€ 2.00
7
1631038A00
ref: 7
CHAIN,OIL PUMP DRIVE
1631038A00
€ 19.50
8
1644024A01
ref: 8
VALVE ASSY,OIL RELIEF
1644024A01
€ 52.00
9
0916816002
ref: 9
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
10-1
1651005A00
ref: 10-1
MODEL F/G
FILTER ASSY,ENGINE OIL
1651005A00
€ 8.50
10-2
1651006B01
ref: 10-2
MODEL H/J/K/L/M-1651
FILTER ASSEMBLY,ENGINE OIL
1651006B01
€ 12.50
11
1652338A00
ref: 11
CAP,OIL STRAINER
1652338A00
€ 19.50
12
1652838A00
ref: 12
O RING,OIL STRAINER CAP
1652838A00
€ 8.00
13
0151706207
ref: 13
BOLT 6X20
€ 2.50
14
1652038A00
ref: 14
STRAINER,ENGINE OIL
1652038A00
€ 7.50
15
0211205126
ref: 15
SCREW 5X12
€ 1.50
16
0832121056
ref: 16
LOCK WASHER
0832121056
€ 3.00
17
0832221056
ref: 17
WASHER
€ 2.50
18-1
1510038A00
ref: 18-1
MODEL F/G
PUMP ASSY,FUEL
1510038A00
€ 238.50
18-2
1510038A10
ref: 18-2
MODEL H/J/K/L/M
PUMP ASSY,FUEL
1510038A10
€ 364.50
19-1
1511038A02
ref: 19-1
MODEL F/G
BRACKET,FUEL PUMP
€ 4.00
19-2
1511038A10
ref: 19-2
MODEL H/J/K/L/M
BRACKET,FUEL PUMP
1511038A10
€ 13.00
20
0916006004
ref: 20
WASHER (6.5X24X1.6)
0916006004
€ 1.50
21
0918006082
ref: 21
SPACER(6.5X10.5X6.5)
0918006082
€ 2.50
22
0932010014
ref: 22
CUSHION
0932010014
€ 4.00
23
0211204208
ref: 23
SCREW
0211204208
€ 1.00
24
0832221047
ref: 24
WASHER 4MM
0832221047
€ 2.00
