CARBURETOR (REAR)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

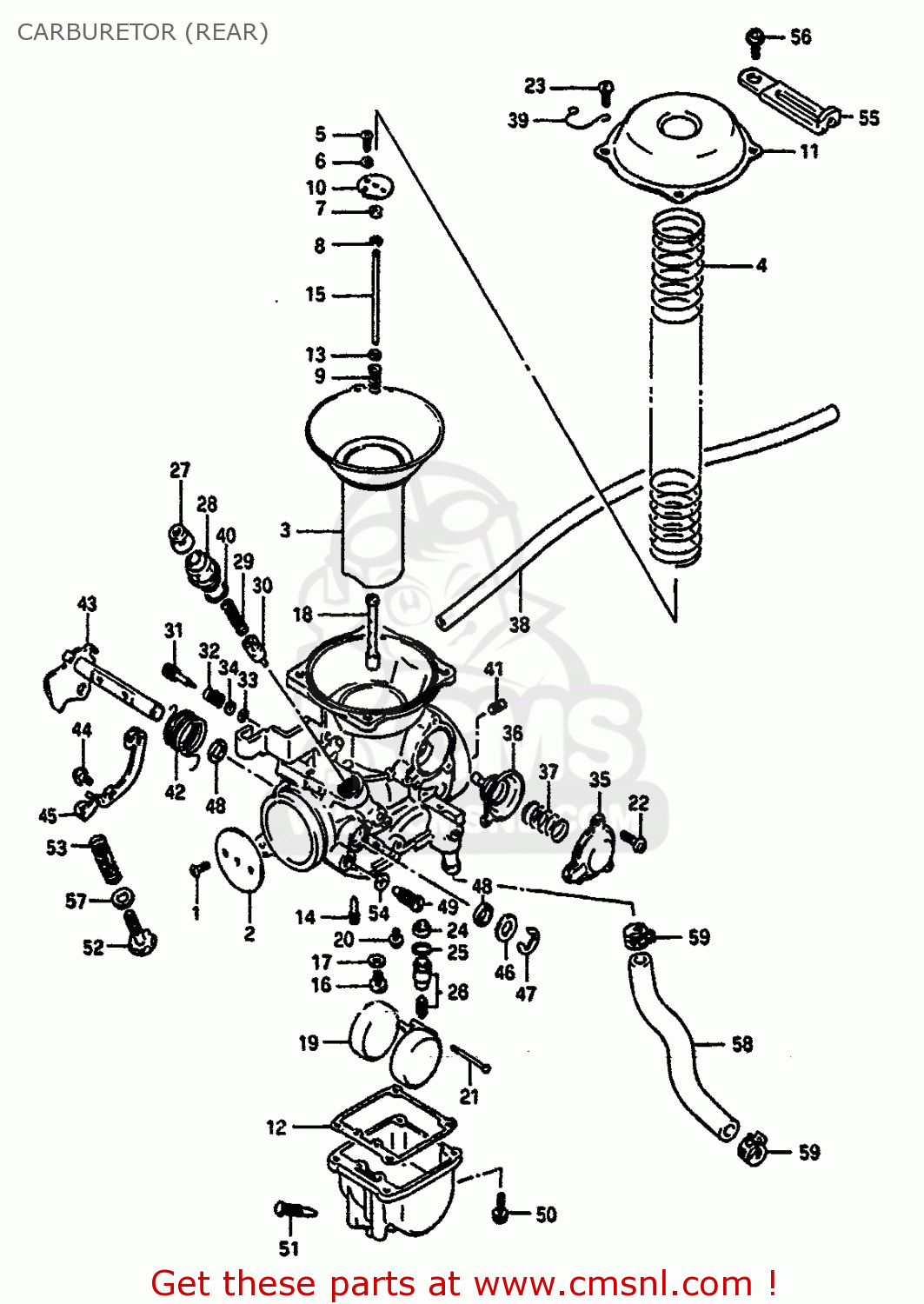

Carburetor (rear) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

CARBURETOR (REAR) VS750GLF 1990 (L) GENERAL EXPORT (E01)
CARBURETOR (REAR) VS750GLF 1990 (L) GENERAL EXPORT (E01)
CARBURETOR (REAR) VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
1322038A20
ref: 0
MODEL F
CARBURETOR ASSY,REAR
€ 0.00
0
1322038A30
ref: 0
MODEL G
CARBURETOR ASSY,REAR
€ 762.00
0
1322038A90
ref: 0
MODEL H/J/K/L/M
CARBURETOR,RR.
€ 762.00
0
1322039A20
ref: 0
MODEL J/K/L E18
CARBURETOR ASSY,REAR
€ 0.00
0
1322039A30
ref: 0
MODEL L/M E22 MODEL
CARBURETOR ASSY,REAR
€ 762.00
1
1360444080
ref: 1
SCREW
1360444080
€ 3.50
2
1355138A00
ref: 2
VALVE,THROTTLE
€ 0.00
3
1350038A10
ref: 3
DIAPHRAGM,CARBURETOR
1350038A10
€ 222.50
4
1350305A10
ref: 4
SPRING,DIAPHRAGM
1350305A10
€ 12.00
5
0211203066
ref: 5
SCREW
€ 2.00
6
0832121036
ref: 6
LOCK WASHER
0832121036
€ 1.50
7
1338747010
ref: 7
RING
1338747010
€ 7.50
8
1339410010
ref: 8
CLIP
1339410010
€ 4.50
9
1338844030
ref: 9
SPRING
1338844030
€ 6.00
10
1338937400
ref: 10
PLATE
1338937400
€ 5.50
11
1350238A10
ref: 11
COVER,DIAPHRAGM
€ 37.50
12
1325138A10
ref: 12
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
13
1338244030
ref: 13
WASHER
1338244030
€ 3.50
14-1
0949240014
ref: 14-1
MODEL F
JET(40)
0949240014
€ 8.50
14-2
0949235010
ref: 14-2
MODEL G/H/J/K/L/M
JET,PILOT(37.5)
0949235010
€ 10.50
14-3
0949235008
ref: 14-3
MODEL J/K/L E18
JET,PILOT(35)
0949235008
€ 7.50
15-1
1338338A20
ref: 15-1
MODEL F
NEEDLE,JET
1338338A20
€ 12.50
15-2
1338338A30
ref: 15-2
MODEL G/H/J/K/L/M
NEEDLE,JET
1338338A30
€ 17.50
15-3
1338339A10
ref: 15-3
MODEL J/K/L E18
NEEDLE,JET (5033-3)
€ 13.00
16-1
0949126012
ref: 16-1
MODEL F
JET,MAIN(132.5)
0949126012
€ 11.50
16-2
0949122016
ref: 16-2
MODEL G/H/J/K/L/M
JET,MAIN(110)
0949122016
€ 7.00
17
1333244080
ref: 17
WASHER,NEEDLE NOZZLE
€ 2.50
18-1
0949400504
ref: 18-1
JET,NEEDLE (P-4)
0949400504
€ 19.00
18-2
0949400502
ref: 18-2
MODEL J/K/L E18
JET,NEEDLE
€ 18.00
19
1325223010
ref: 19
FLOAT
1325223010
€ 19.00
20
1360205A10
ref: 20
SCREW
1360205A10
€ 4.00
21
1325492311
ref: 21
PIN,FLOAT
1325492311
€ 2.00
22
0211204106
ref: 22
SCREWM4X0.7X10
€ 1.00
23
0211204086
ref: 23
SCREW
€ 2.00
24
1337684110
ref: 24
FILTER
€ 6.50
25
1337444080
ref: 25
O-RING,NEEDLE VALVE
1337444080
€ 6.00
26
1337001401
ref: 26
VALVE ASSY,NEEDLE
1337001401
€ 57.50
27
1368104010
ref: 27
CAP
1368104010
€ 3.00
28
1341843410
ref: 28
HOLDER,GUIDE
1341843410
€ 6.50
29
1341722010
ref: 29
SPRING
1341722010
€ 3.00
30
1341138400
ref: 30
PLUNGER
€ 11.50
31-1
1327947080
ref: 31-1
SCREW,PILOT AIR
1327947080
€ 11.50
31-2
1327947080
ref: 31-2
MODEL L/M E22
SCREW,PILOT AIR
1327947080
€ 11.50
32
1326847070
ref: 32
SPRING
1326847070
€ 5.00
33
1329529900
ref: 33
O RING,PILOT AIR SCREW
1329529900
€ 4.00
34
1329129900
ref: 34
WASHER
1329129900
€ 2.00
35
1348438A10
ref: 35
COVER
€ 16.00
36
1348005A10
ref: 36
DIAPHRAGM ASSY
1348005A10
€ 54.50
37
1348105A10
ref: 37
SPRING
€ 5.50
38
1368438A20
ref: 38
HOSE
€ 13.00
39
1369202500
ref: 39
CLIP
€ 7.00
40
1327847090
ref: 40
O RING
1327847090
€ 2.00
41-1
0949275002
ref: 41-1
MODEL F
JET,PILOT
€ 9.00
41-2
0949260010
ref: 41-2
MODEL G/H/J/K/L/M
JET
0949260010
€ 7.50
42-1
1357338A10
ref: 42-1
MODEL F/G
SPRING
€ 0.00
42-2
1357338A11
ref: 42-2
MODEL H/J/K/L/M
SPRING,SHAFT RETURN
€ 0.00
43
1355038A10
ref: 43
SHAFT ASSEMBLY
€ 0.00
44
1360205A30
ref: 44
SCREW
1360205A30
€ 4.50
45
1355438A10
ref: 45
LEVER,ASSY
1355438A10
€ 25.00
46
1355747070
ref: 46
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
47
1361744080
ref: 47
E RING
1361744080
€ 3.50
48
1355605A10
ref: 48
SEAL,THROTTLE SHAFT
1355605A10
€ 3.50
49
1360573000
ref: 49
SCREW
1360573000
€ 10.50
50
1360104148
ref: 50
SCREW
1360104148
€ 2.50
51
1324702340
ref: 51
PLUG,DRAIN
1324702340
€ 5.50
52
1326738A10
ref: 52
ADJUSTER
1326738A10
€ 13.00
53
1327193011
ref: 53
SPRING
1327193011
€ 4.50
54
1353138A00
ref: 54
WASHER
€ 2.00
55
1367105A20
ref: 55
CLIP
€ 3.00
56
1360238A20
ref: 56
SCREW
€ 1.50
57
1327737100
ref: 57
MODEL H/J/K/L/M
WASHER
1327737100
€ 2.00
58
1368338A01
ref: 58
HOSE
€ 21.50
59
0940113408
ref: 59
CLIP
€ 2.50
