HANDLEBAR-CONTROL CABLE (VS750GLFG/GLFH/GLFJ/GLFK/GLFL/GLFM)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

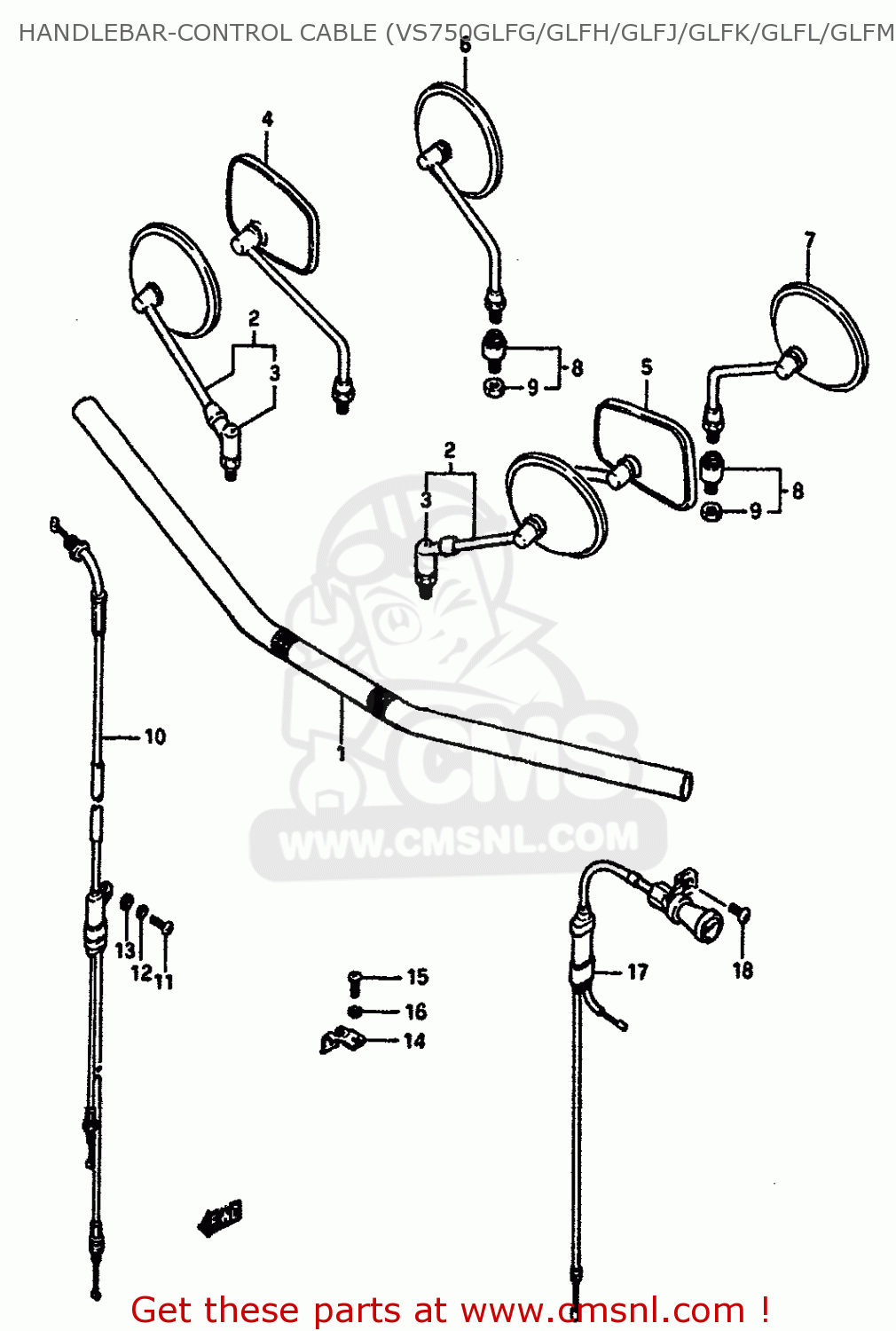

Handlebar-control cable (vs750glfg/glfh/glfj/glfk/glfl/glfm) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

HANDLEBAR-CONTROL CABLE (VS750GLFG/GLFH/GLFJ/GLFK/GLFL/GLFM) VS750GLF 1990 (L) GENERAL EXPORT (E01)
HANDLEBAR-CONTROL CABLE (VS750GLFG/GLFH/GLFJ/GLFK/GLFL/GLFM) VS750GLF 1990 (L) GENERAL EXPORT (E01)
HANDLEBAR-CONTROL CABLE (VS750GLFG/GLFH/GLFJ/GLFK/GLFL/GLFM) VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
5611138A00
ref: 1-1
MODEL G/H
HANDLEBAR,RIGHT
€ 70.50
1-2
5611138A20
ref: 1-2
MODEL G/H E22
HANDLEBAR
5611138A20
€ 70.50
1-3
5611138A40
ref: 1-3
MODEL J/K/L/M
HANDLEBAR
€ 135.00
2
5650038A50
ref: 2
E2,E4,E21,E22,E24,E7
MIRROR ASSY,R.
5650038A50
€ 356.00
3
5652428600
ref: 3
CAP
5652428600
€ 4.00
4
5650038A30
ref: 4
E1,E15,E18,E25,E39 M
MIRROR ASSY,RR VIEW,R
5650038A30
€ 75.00
5
5660038A30
ref: 5
E1,E15,E18,E25,E39 M
MIRROR ASSY,RR VIEW,L
5660038A30
€ 75.50
6
5650045121
ref: 6
E16
MIRROR ASSY RH
5650045121
€ 209.00
7
5660045121
ref: 7
E16
MIRROR ASSY
5660045121
€ 209.00
8
5670031001
ref: 8
E16
CUSHION,REAR VIEW MIRROR
5670031001
€ 18.00
9
0831022107
ref: 9
E16
NUT
0831022107
€ 2.50
10
5830038A00
ref: 10
CABLE ASSEMBLY,THROTTLE
5830038A00
€ 60.00
11-1
0211205128
ref: 11-1
MODEL G/H/J/K/L
SCREW
€ 2.50
11-2
0211275128
ref: 11-2
MODEL M
SCREW,THROTTLE CABLE
€ 2.50
12
0832121057
ref: 12
MODEL G/H/J/K/L
LOCK WASHER
0832121057
€ 2.00
13
0832221057
ref: 13
MODEL G/H/J/K/L
WASHER
0832221057
€ 2.50
14
5862138A00
ref: 14
CLAMP,THROTTLE CABLE
5862138A00
€ 6.00
15
0211205107
ref: 15
SCREW
0211205107
€ 2.00
16
0832121057
ref: 16
LOCK WASHER
0832121057
€ 2.00
17-1
5840038A00
ref: 17-1
MODEL G/H/J
CABLE ASSEMBLY,STARTER
€ 54.00
17-2
5840038A10
ref: 17-2
MODEL K/L/M
CABLE ASSEMBLY,STARTER
5840038A10
€ 65.50
18
0214206104
ref: 18
SCREW
0214206104
€ 2.00
