FOOTREST (MODEL F/G)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

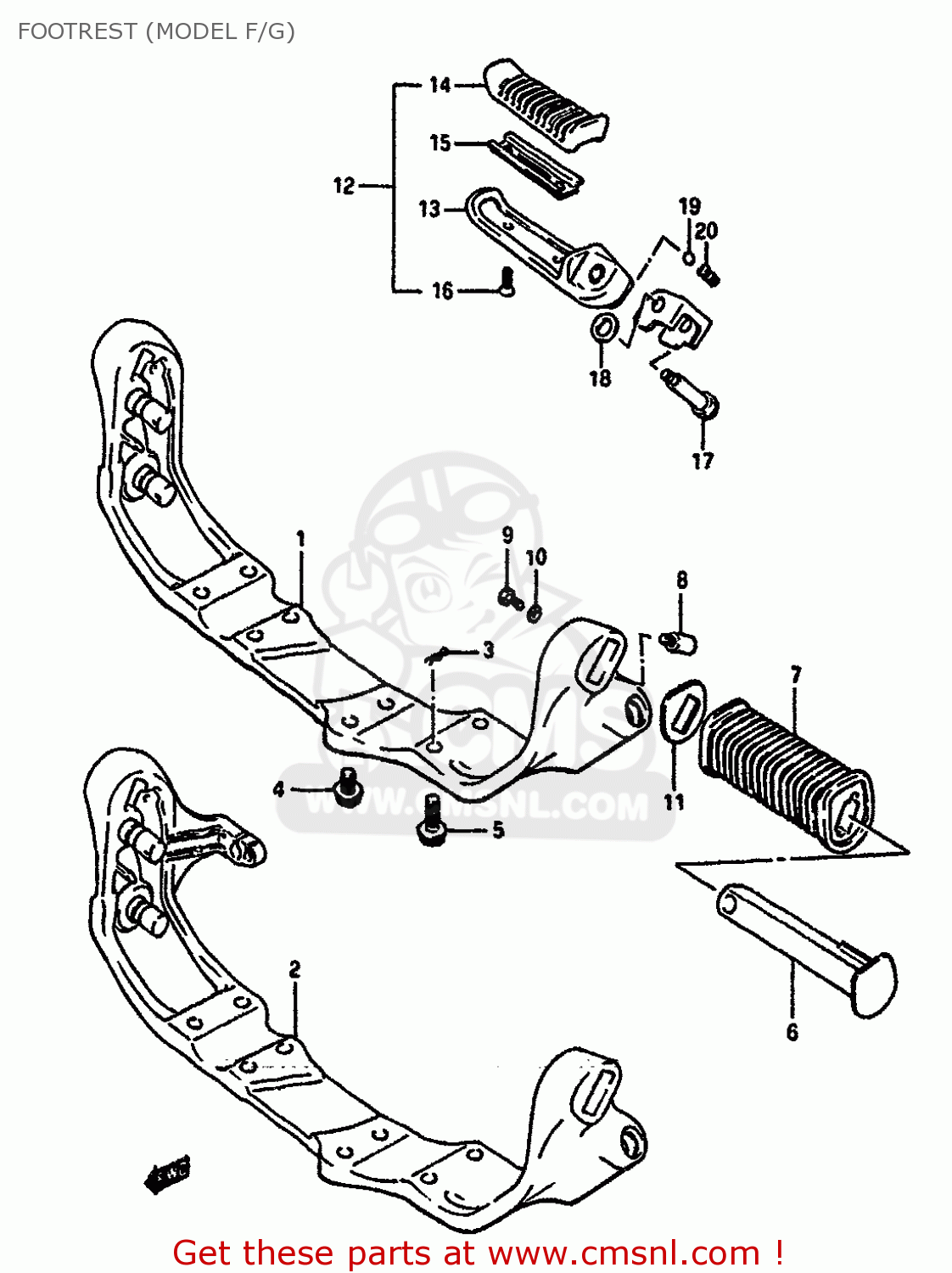

Footrest (model f/g) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

FOOTREST (MODEL F/G) VS750GLF 1990 (L) GENERAL EXPORT (E01)

FOOTREST (MODEL F/G) VS750GLF 1990 (L) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

4351038A00
ref: 1
MODEL F/G

BRACKET,FRONT FOOTREST

€ 394.50

2-1

4351038A30
ref: 2-1
MODEL G

BRACKET,FRONT FOOTREST

€ 0.00

2-2

4351038A20
ref: 2-2
MODEL G,FOR E4,E17,E

BRACKET COMP,FRONT FOOTREST

€ 410.50

3

0938508002
ref: 3

PIN,SNAP

€ 1.50

4

0712008208
ref: 4

BOLT

€ 3.00

5

0910608064
ref: 5

BOLT(8X25)

€ 4.50

6-1

4353038A00
ref: 6-1

BAR,FR FOOTREST,R

€ 38.00

6-2

4354038A00
ref: 6-2

BAR,FR FOOTREST,L

€ 30.00

7

4355138A00
ref: 7

RUBBER,FR FOOTREST

€ 9.00

8

4364138A00
ref: 8

BOLT,FRONT FOOTREST RUBBER

€ 5.00

9

0110705127
ref: 9

BOLT 5X12

€ 2.00

10

0832121057
ref: 10

LOCK WASHER

€ 2.00

11-1

4357038A00
ref: 11-1

WASHER,FR FOOTREST,R

€ 5.00

11-2

4358038A00
ref: 11-2

WASHER,FR FOOTREST,L

€ 8.50

12-1

4360038A00
ref: 12-1

FOOTREST ASSEMBLY,REAR

€ 39.50

12-2

4370038A00
ref: 12-2

FOOTREST ASSEMBLY,PILLION

€ 35.50

13-1

4361038A00
ref: 13-1

BAR COMP,PILLION FOOTREST

€ 39.50

13-2

4371038A00
ref: 13-2

BAR COMP,PILLION FOOTREST

€ 35.50

14

4361238A00
ref: 14

RUBBER,PILLION FOOTREST

€ 12.00

15

4363238A00
ref: 15

PLATE,RUBBER STOPPER

€ 4.00

16

0213205167
ref: 16

SCREW 5X16

€ 2.00

17

0911106050
ref: 17

BOLT(6X34.5)

€ 5.00

18

0822108164
ref: 18

SHIM

€ 1.50

19

0611107004
ref: 19

BALL

€ 1.50

20

0944005031
ref: 20

SPRING

€ 1.50
