CLUTCH MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM)

VS750GLF 1990 (L) GENERAL EXPORT (E01)

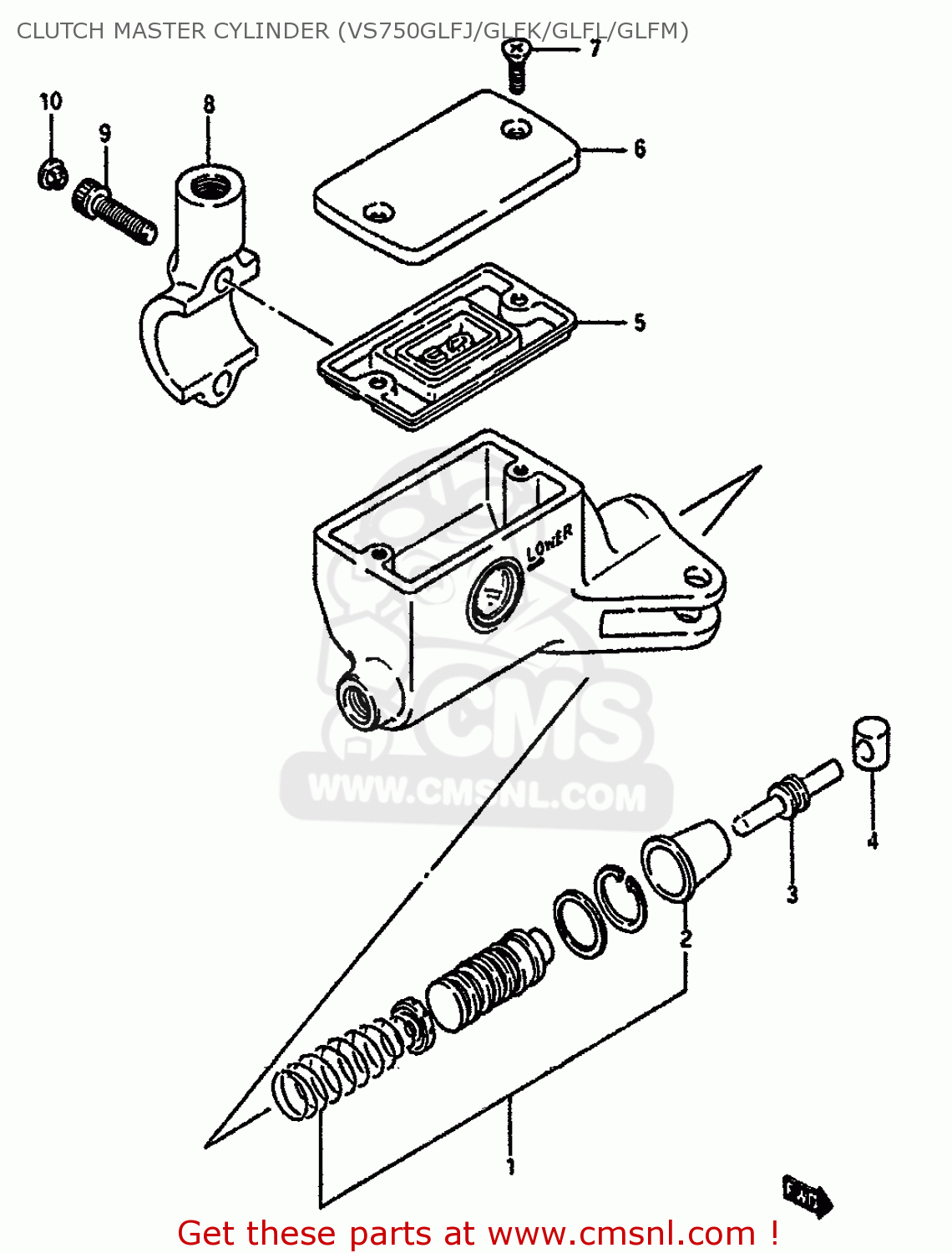

Clutch master cylinder (vs750glfj/glfk/glfl/glfm) diagram VS750GLF 1990 (L) GENERAL EXPORT (E01)

CLUTCH MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM) VS750GLF 1990 (L) GENERAL EXPORT (E01)
CLUTCH MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM) VS750GLF 1990 (L) GENERAL EXPORT (E01)
CLUTCH MASTER CYLINDER (VS750GLFJ/GLFK/GLFL/GLFM) VS750GLF 1990 (L) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
0
5980038A40
ref: 0
VS750GLFJ
CYLINDER ASSY,CLUTCH MASTER (FLAT TYPE)
€ 365.50
0
5980039A10
ref: 0
VS750GLFK/GLFL/GLFM
CYLINDER ASSY, CLUTCH MASTER
€ 428.00
1
5980008810
ref: 1
PISTON & CUP SET
5980008810
€ 36.50
2
5966644300
ref: 2
BOOT
5966644300
€ 6.00
3
5987138A00
ref: 3
PUSH ROD
5987138A00
€ 6.50
4
5989208A00
ref: 4
BUSH
5989208A00
€ 5.50
5
5966749460
ref: 5
5966749460
6-1
5966938A30
ref: 6-1
VS750GLFJ
CAP
5966938A30
€ 45.50
6-2
5966924B00
ref: 6-2
VS750GLFK/GLFL/GLFM
CAP
5966924B00
€ 59.00
7
5969138A00
ref: 7
SCREW,RESERVOIR CAP
5969138A00
€ 2.00
8
5967138A00
ref: 8
HOLDER
5967138A00
€ 37.50
9
0711006200
ref: 9
BOLT
€ 0.00
10
0925005008
ref: 10
CAP(OD:10)
0925005008
€ 5.00
