CARBURETOR (FRONT)
VX800 1992 (N) USA (E03)

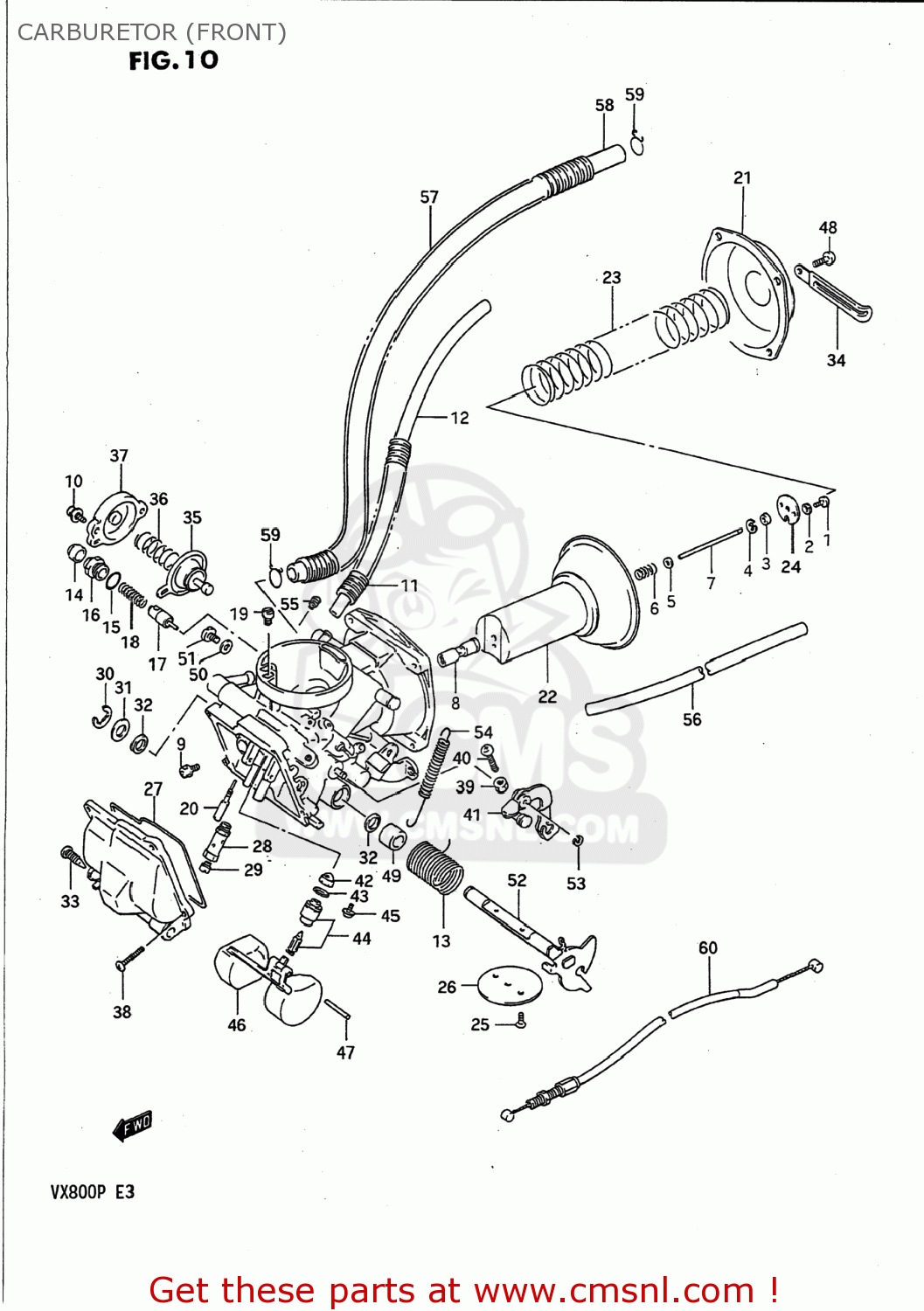

Carburetor (front) diagram VX800 1992 (N) USA (E03)
CARBURETOR (FRONT) VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1321045C10
ref:
CARBURETOR ASSEMBLY,FRONT
€ 398.50
1321045C20
ref:
CARBURETOR ASSEMBLY,FRONT
€ 281.00
1
0211203066
ref: 1
02112-0306B
SCREW
€ 2.00
2
0832121036
ref: 2
08321-2103B
LOCK WASHER
€ 1.50
3
1338747010
ref: 3
RING
€ 7.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7
1338345C20
ref: 7
NEEDLE,JET
€ 10.00
8
0949400588
ref: 8
JET,NEEDLE(P-2)
€ 26.50
9
1360538B00
ref: 9
SCREW
€ 7.50
10
1360219B50
ref: 10
SCREW
€ 3.00
11
1368445C20
ref: 11
13684-19C00
HOSE
€ 8.00
12
1368438A20
ref: 12
44420-44AR0
HOSE
€ 13.00
13
1357338B00
ref: 13
SPRING,SHAFT RETURN
€ 7.50
14
1368104010
ref: 14
CAP
€ 3.00
15
1327847090
ref: 15
O RING
€ 2.00
16
1341843410
ref: 16
HOLDER,GUIDE
€ 6.50
17
1341101400
ref: 17
PLUNGER,STARTER
€ 11.50
18
1341722010
ref: 18
SPRING
€ 3.00
19
0949265005
ref: 19
JET,AIR(65)
€ 7.50
20-1
0949240020
ref: 20-1
09492-40021
JET
€ 17.50
20-2
0949240021
ref: 20-2
JET,PILOT(40)
€ 17.50
21
1350245C10
ref: 21
13502-38A00
COVER
€ 34.00
22
1350005A10
ref: 22
DIAPHRAGM,CARBURETOR
€ 178.00
23
1350338B00
ref: 23
SPRING,DIAPHRAGM
€ 12.00
24
1338937400
ref: 24
PLATE
€ 5.50
25
1360444080
ref: 25
SCREW
€ 3.50
26
1355138B00
ref: 26
VALVE,THROTTLE
€ 19.50
27
1325138A00
ref: 27
O RING,FLOAT CHAMBER
€ 6.50
28
1338505A11
ref: 28
HOLDER,MAIN JET
€ 14.00
29
0949124023
ref: 29
JET,MAIN(122.5)
€ 14.00
30
1361744080
ref: 30
E RING
€ 3.50
31
1355747070
ref: 31
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
32
1355605A10
ref: 32
SEAL,THROTTLE SHAFT
€ 3.50
33
1324738B00
ref: 33
13247-02340
PLUG
€ 5.50
34
1367105A20
ref: 34
09404-06433
CLIP
€ 3.00
35
1348005A10
ref: 35
DIAPHRAGM ASSY
€ 54.50
36
1348145C10
ref: 36
SPRING
€ 5.50
37
1348445C00
ref: 37
COVER
€ 15.50
38
1360104148
ref: 38
SCREW
€ 2.50
39
1360705A10
ref: 39
08310-00047
NUT
€ 2.00
40
0211204306
ref: 40
02112-0430B
SCREW
€ 2.00
41
1355445C10
ref: 41
13554-45C20
LEVER,ASSEMBLY
€ 38.50
42
1337684110
ref: 42
13376-19F00
FILTER
€ 6.50
43
1337444080
ref: 43
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
44
1337038B00
ref: 44
VALVE ASSY,NEEDLE
€ 64.50
45
1360205A10
ref: 45
SCREW
€ 4.00
46
1325038B00
ref: 46
FLOAT
€ 32.00
47
1325420010
ref: 47
PIN,FLOAT
€ 3.00
48
0211205126
ref: 48
02112-0512A
SCREW 5X12
€ 1.50
49
1357445C00
ref: 49
RING
€ 3.50
50
1352346110
ref: 50
GASKET,DRAIN PLUG (NAS)
€ 3.00
51
0211205066
ref: 51
02112-0506B
SCREW
€ 2.00
52
1355045C10
ref: 52
13550-38B00
SHAFT ASSEMBLY,THROTTLE
€ 26.50
53
1329849000
ref: 53
13415-38300
E-RING
€ 2.00
54
1357338B30
ref: 54
SPRING
€ 7.50
55
0949324007
ref: 55
JET,AIR(1.2)
€ 13.50
56
1368338B00
ref: 56
13683-38B01
(CA) HOSE SET,FUEL
€ 19.50
57
1368445C00
ref: 57
13684-38B00
HOSE
€ 21.50
58
0935465113600
ref: 58
HOSE(6.5X11.5X600)
€ 26.00
59
1367138B00
ref: 59
09401-11403
CLIP
€ 3.00
60-1
1364138B00
ref: 60-1
13641-38B03
CABLE,IDLE SYNCRO
€ 17.50
60-2
1364138B01
ref: 60-2
13641-38B03
CABLE,IDLE SYNCRO
€ 17.50
