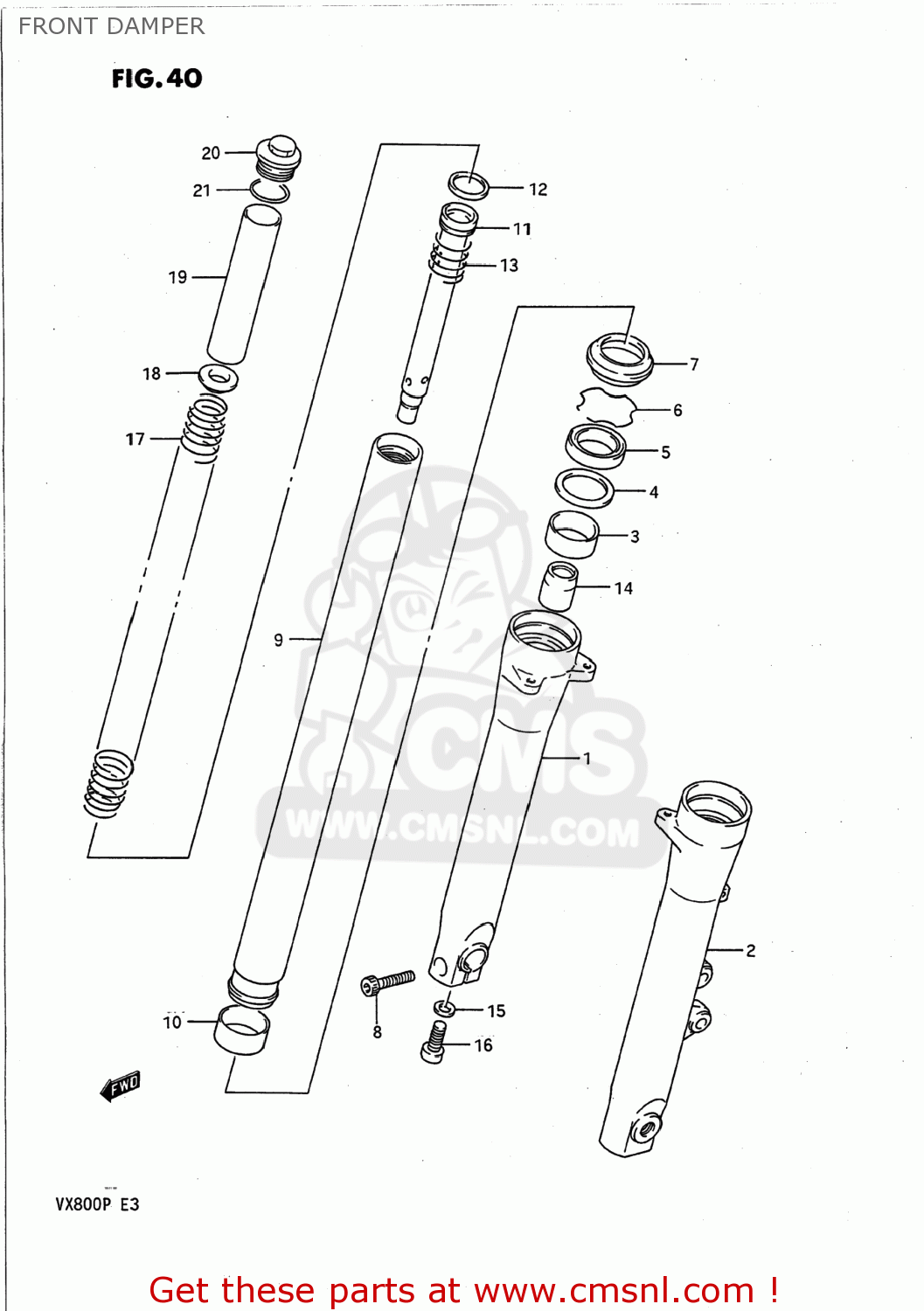

FRONT DAMPER

ref

part #

description

quantity

5110345C20
ref:

DAMPER ASSEMBLY,RIGHT

€ 658.50

5110445C21
ref:

DAMPER ASSEMBLY,LEFT

€ 552.50

1

5113045C00
ref: 1

TUBE,OUTER,RIGHT

€ 350.00

2

5114045C01
ref: 2

TUBE,OUTER,LEFT

€ 354.00

3

5116728C00
ref: 3
51167-26E10

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115306C00
ref: 5
51153-27C20

OIL SEAL,FRONT FORK

€ 22.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7

5117306C00
ref: 7
51173-46E00

DUST SEAL,FRONT FORK

€ 20.00

8

0711008407
ref: 8
07130-08407

BOLT

€ 3.50

9

5111045C00
ref: 9

TUBE,INNER

€ 313.00

10

5112128C00
ref: 10
51121-26E10

PISTON

€ 23.00

11

5114645C20
ref: 11

CYLINDER

€ 66.00

12

5119605A00
ref: 12

RING,PISTON

€ 7.50

13

5117745C00
ref: 13

SPRING,REBOUND

€ 6.00

14

5119505C20
ref: 14

PIECE,OIL LOCK

€ 13.00

15

5114841310
ref: 15

GASKET (NAS)

€ 2.50

16

5114716510
ref: 16

BOLT,FORK CYLINDER(10X25)

€ 3.50

17

5117145C20
ref: 17

SPRING,MAIN

€ 83.50

18

5117224A00
ref: 18
51356-24B01

GUIDE,SPRING

€ 3.00

19

5117645C20
ref: 19

SPACER,SPRING

€ 8.00

20

5135145C00
ref: 20

CAP,FORK

€ 35.50

21

5111740300
ref: 21

O RING

€ 2.50

all assemblies
