TURN SIGNAL LAMP
VX800 1992 (N) USA (E03)

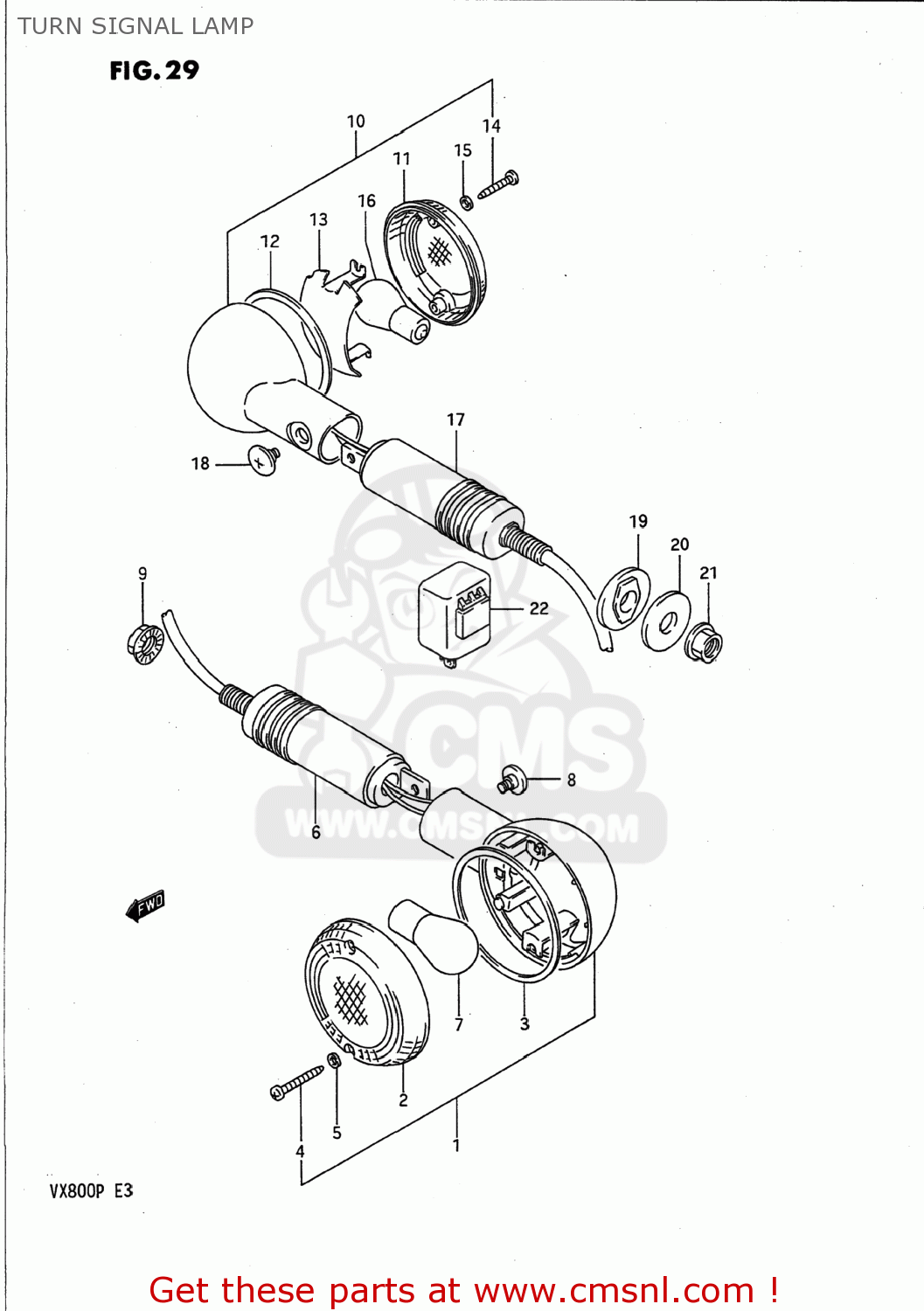

Turn signal lamp diagram VX800 1992 (N) USA (E03)
TURN SIGNAL LAMP VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3560145C00
ref: 1-1
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 27.00
1-2
3560245C00
ref: 1-2
35601-45C00
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 27.00
2
3561238A01
ref: 2
LENS
€ 10.50
3
3561338A00
ref: 3
GASKET (NAS)
€ 11.50
4
0321104256
ref: 4
03211-0425B
SCREW ,4X25
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
3561945C00
ref: 6
STAY,TURN SIGNAL,FRONT
€ 97.50
7
0947112045
ref: 7
BULB(12V21W)
€ 5.00
8
3562338A01
ref: 8
SCREW
€ 5.50
9
0831626105
ref: 9
08316-2010B
NUT
€ 3.50
10-1
3560345C30
ref: 10-1
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 37.50
10-2
3560445C30
ref: 10-2
35603-45C30
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 37.50
11
3565238A21
ref: 11
LENS
€ 16.50
12
3561338A00
ref: 12
GASKET (NAS)
€ 11.50
13
3565438A20
ref: 13
REFLECTOR
€ 83.50
14
0321104256
ref: 14
03211-0425B
SCREW ,4X25
€ 2.00
15
3562743010
ref: 15
GASKET (NAS)
€ 2.00
16
0947112045
ref: 16
BULB(12V21W)
€ 5.00
17
3565945C00
ref: 17
STAY,TURN SIGNAL,REAR
€ 27.50
18
3562338A01
ref: 18
SCREW
€ 5.50
19
3569517C00
ref: 19
SPACER,RR TURNSIGNAL
€ 3.00
20
0916010094
ref: 20
WASHER(10.5X30X3.2)
€ 3.50
21-1
0831626105
ref: 21-1
08316-2010B
NUT
€ 3.50
21-2
0831012108
ref: 21-2
08310-00107
NUT
€ 2.50
22-1
3861031310
ref: 22-1
38610-31X50
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
22-2
3861045D01
ref: 22-2
RELAY ASSY,TURNSIGNAL LAMP
€ 68.50
