HEADLAMP (MODEL L/M/N)
VX800 1992 (N) USA (E03)

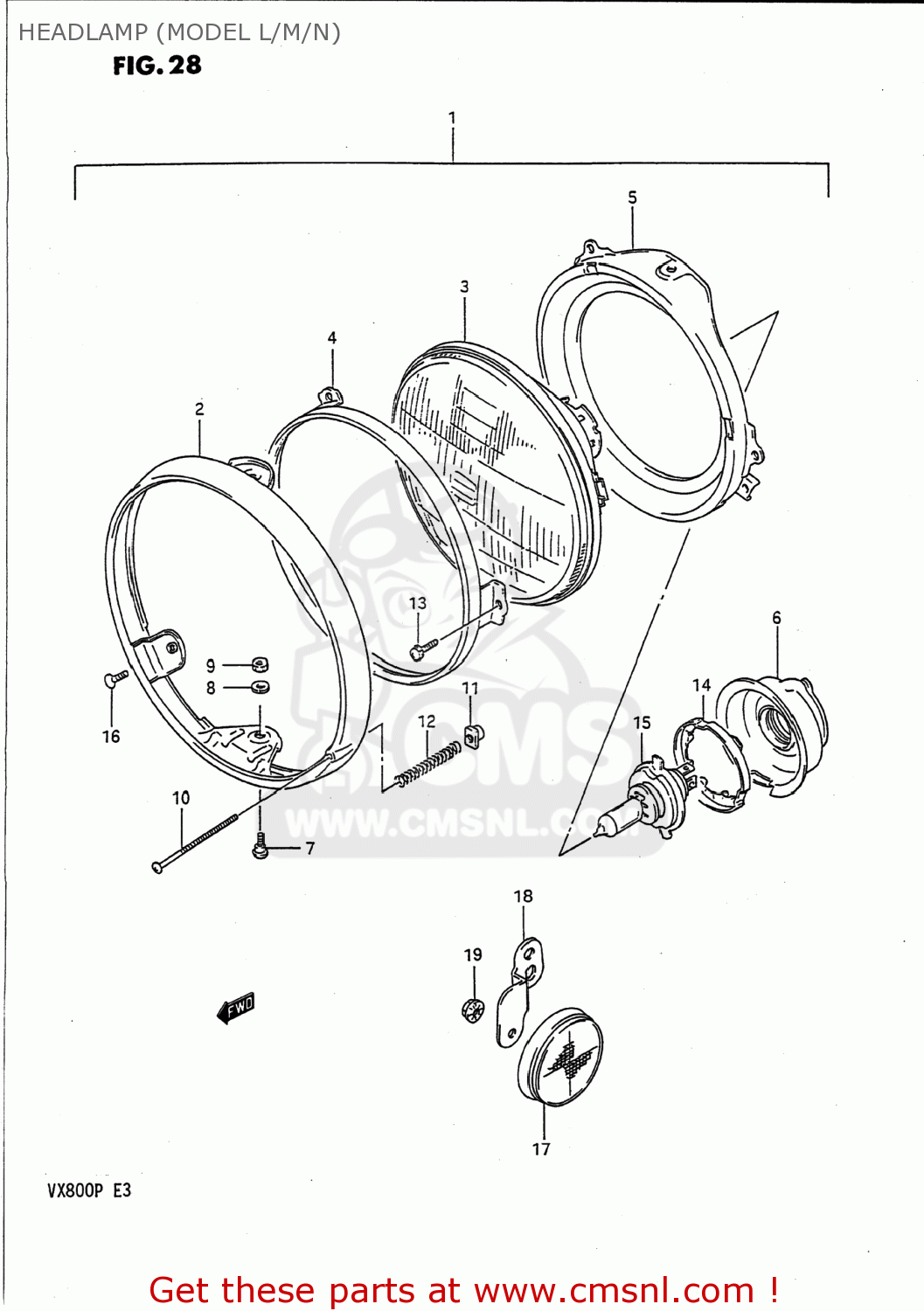

Headlamp (model l/m/n) diagram VX800 1992 (N) USA (E03)
HEADLAMP (MODEL L/M/N) VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510001D30
ref: 1
HEADLAMP ASSY
€ 244.50
2
3511101D20
ref: 2
RIM,HEADLAMP
€ 55.50
3
3512134430
ref: 3
LAMP UNIT
€ 100.00
4
3512745030
ref: 4
RETAINING RING
€ 19.50
5
3513045030
ref: 5
RING
€ 29.50
6
3517345000
ref: 6
35173-20A01
COVER,HEADLAMP SOCKET
€ 14.50
7
3518115611
ref: 7
H/LAMP LENS UNIT FITING SCRE
€ 3.00
8
0832121057
ref: 8
08321-0105A
LOCK WASHER
€ 2.00
9
0831011056
ref: 9
08310-0005A
NUT
€ 2.50
10
3515145030
ref: 10
35151-45900
SCREW,HEADLAMP ADJUST
€ 4.00
11
3515215611
ref: 11
NUT
€ 3.50
12
3515431900
ref: 12
SPRING,ADJUSTING
€ 3.50
13
0211204106
ref: 13
02112-0410A
SCREWM4X0.7X10
€ 1.00
14
3513634400
ref: 14
SETTING,BULB
€ 4.50
15
0947112060
ref: 15
BULB(12V60/55W,H4)
€ 8.00
16
0213205127
ref: 16
02122-05127
SCREW 5X12
€ 2.50
17
3595014A00
ref: 17
REFLECTOR,REFLEX FR
€ 15.00
18-1
3595645C00
ref: 18-1
35956-45C01
BRACKET,FRONT SIDE,REAR
€ 0.00
18-2
3595645C01
ref: 18-2
BRACKET,SIDE REFLECTOR
€ 0.00
18-3
3595745C00
ref: 18-3
35957-45C01
BRACKET,FRONT SIDE,REAR
€ 0.00
18-4
3595745C01
ref: 18-4
BRACKET,SIDE REFLECTOR
€ 0.00
19
0831626055
ref: 19
08316-2005A
NUT
€ 2.00
19
0831626055
ref: 19
08316-2005A
NUT
€ 2.00
