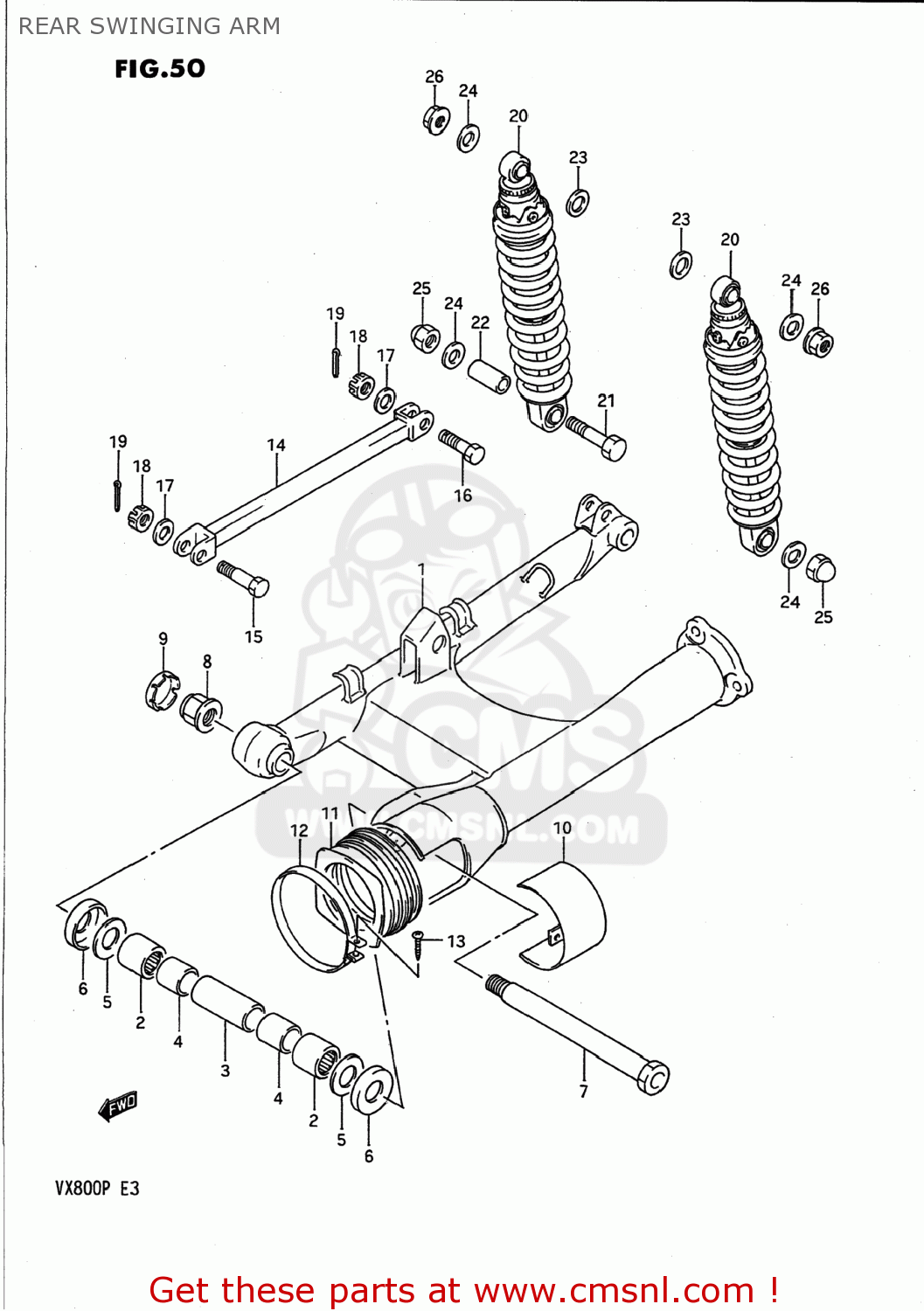

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6110045C0313L
ref: 1-1
61100-45C04-0FP

SWING ARM,REAR

€ 561.50

1-2

6110045C0323W
ref: 1-2

SWING ARM ASSEMBLY,REAR

€ 560.00

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

6128245C01
ref: 3

SPACER,REAR SWING ARM PIVOT

€ 11.50

4

6125117C00
ref: 4

SPACER,RR SWGARM PIVOT BERRING

€ 36.00

5

0821120381
ref: 5

WASHER

€ 3.00

6

6126210D00
ref: 6

COVER,RR SWGARM PIVOT SEAL

€ 9.00

7

6121145C01
ref: 7

SHAFT,RR SWINGINGARM PIVOT

€ 54.50

8

0831931188
ref: 8
08319-3118A

NUT ,18MM

€ 17.50

9

6122248B00
ref: 9

CAP,RR SWINGING ARM PIVOT

€ 4.00

10-1

6123238A0013L
ref: 10-1

COVER,SWGARM PIVOT,L

€ 25.50

10-2

6123238A0023W
ref: 10-2

COVER,REAR SWING ARM PIVOT

€ 25.50

11

6137238A00
ref: 11

BOOT,PROPELLER SHAFT

€ 16.50

12

0940292306
ref: 12
09402-92306-XC0

CLAMP

€ 8.50

13

0321104255
ref: 13
03211-0425B

SCREW 4X25

€ 2.00

14-1

6431045C0013L
ref: 14-1
64310-45C00-019

TORQUE LINK,REAR

€ 30.00

14-2

6431045C0023W
ref: 14-2
64310-45C00-019

TORQUE LINK,REAR

€ 30.00

14-3

6431045C00019
ref: 14-3

TORQUE LINK,REAR (BLACK)

€ 30.00

15

0911110016
ref: 15

BOLT(10X41)

€ 6.50

16

0910110036
ref: 16

BOLT(10X35)

€ 4.50

17

0916010069
ref: 17
09160-10005

WASHER (10X18X3.2)

€ 2.00

18

0831441108
ref: 18
08314-4010B

NUT

€ 2.50

19

0411120208
ref: 19
04111-2020A

PIN 20X20

€ 1.50

20

6210045C20
ref: 20

ABSORBER ASSEMBLY,REAR SHOCK

€ 514.00

21

0910010247
ref: 21

BOLT(10X39)

€ 4.00

22

0918010104
ref: 22
09180-10139

SPACER (10.2X14X20.7)

€ 6.00

23

0832211148
ref: 23
08322-01147

WASHER

€ 2.00

24

0916010001
ref: 24
09160-10093

WASHER

€ 2.00

25

0831311107
ref: 25
08313-10107

NUT

€ 2.50

26

0831616108
ref: 26
08316-10107

NUT

€ 2.00
