STAND - REAR BRAKE
VX800 1992 (N) USA (E03)

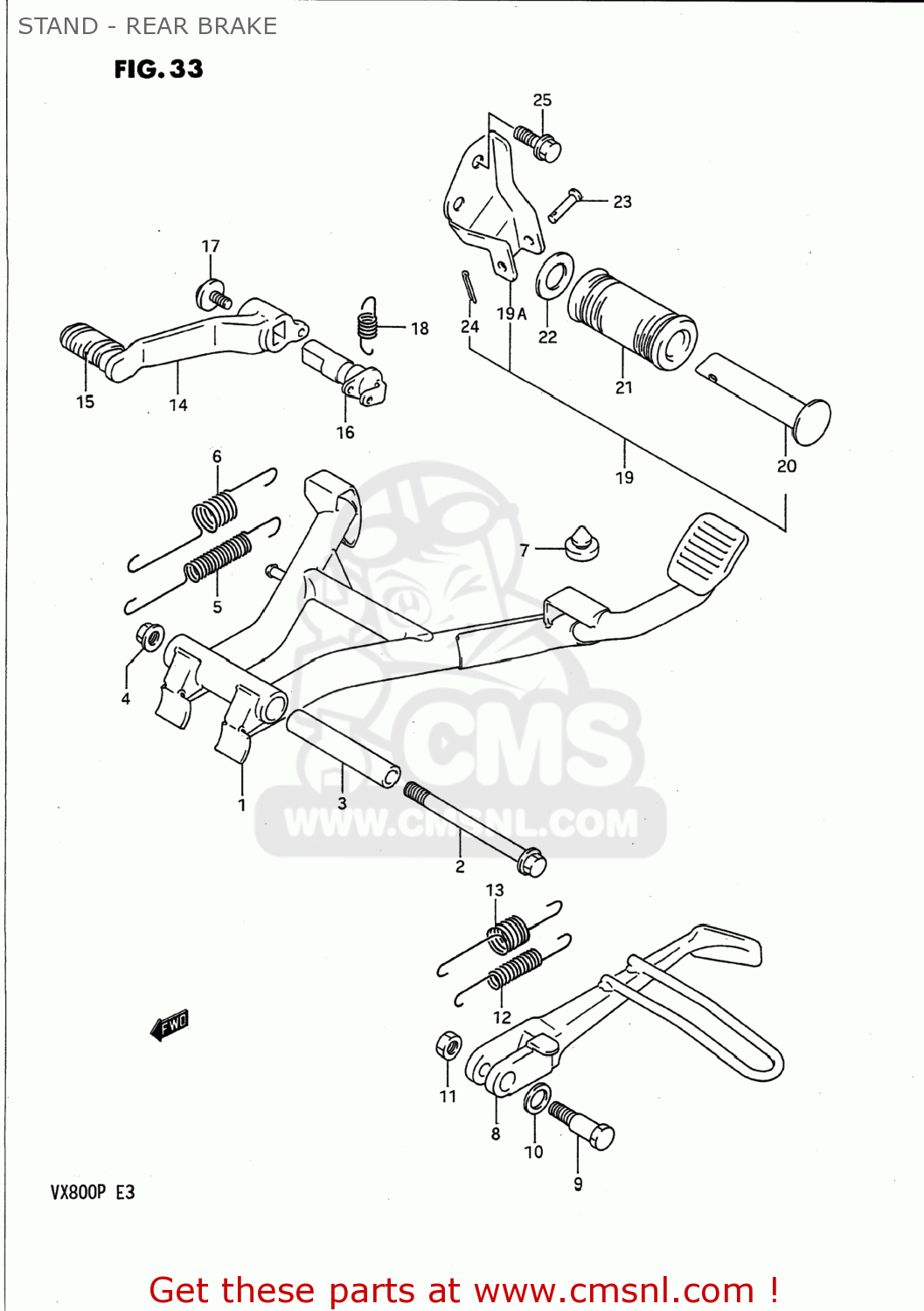

Stand - rear brake diagram VX800 1992 (N) USA (E03)
STAND - REAR BRAKE VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210045C00
ref: 1
STAND,CTR
€ 171.00
2
0910310063
ref: 2
BOLT(10X115)
€ 5.00
3-1
4219145C00
ref: 3-1
09180-10064
SPACER,CENTER STAND
€ 11.50
3-2
4219145C01
ref: 3-2
09180-10064
SPACER,CENTER STAND
€ 11.50
4
0915910060
ref: 4
NUT
€ 2.00
5
0944315045
ref: 5
SPRING,CENTER STAND,INNER
€ 6.00
6
0944322016
ref: 6
SPRING,CENTER STAND,OUTER
€ 6.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8-1
4231045C00
ref: 8-1
42310-45C20
STAND,SIDE
€ 94.50
8-2
4231045C01
ref: 8-2
42310-45C20
STAND,SIDE
€ 94.50
8-3
4231045C20
ref: 8-3
STAND COMP,PROP
€ 94.50
9
0911110036
ref: 9
BOLT(10X38)
€ 5.50
10
0822112224
ref: 10
SHIM
€ 2.00
11
0831022105
ref: 11
09140-10043
NUT
€ 2.00
12
0944315044
ref: 12
SPRING,PROP STAND,INNER
€ 6.50
13
0944322015
ref: 13
SPRING
€ 18.00
14
4311045C00
ref: 14
PEDAL,BRAKE
€ 69.00
15
2565249300
ref: 15
RUBBER,PEDAL
€ 5.50
16
4312045C00
ref: 16
ARM,BRAKE PEDAL
€ 39.50
17
0910608098
ref: 17
BOLT(8X14)
€ 6.50
18
0944315043
ref: 18
SPRING,BRAKE PEDAL
€ 3.00
19
4390045810
ref: 19
GRIP SET,CTR STAND
€ 76.50
19A
4399045C00
ref: 19A
HOLDER COMP,CENTER STAND
€ 46.50
20
4361044000
ref: 20
BAR,PILLION FOOTREST
€ 14.50
21
4399545C00
ref: 21
RUBBER,STAND GRIOP (OPT)
€ 21.00
22
0916019006
ref: 22
09160-19024
WASHER (19.5X32X2)
€ 2.00
23
0920006010
ref: 23
PIN
€ 2.50
24
0411120158
ref: 24
04111-2015A
PIN
€ 1.50
25
0151708165
ref: 25
01550-0816A
BOLT, LOWER
€ 3.00
