RADIATOR
VX800 1992 (N) USA (E03)

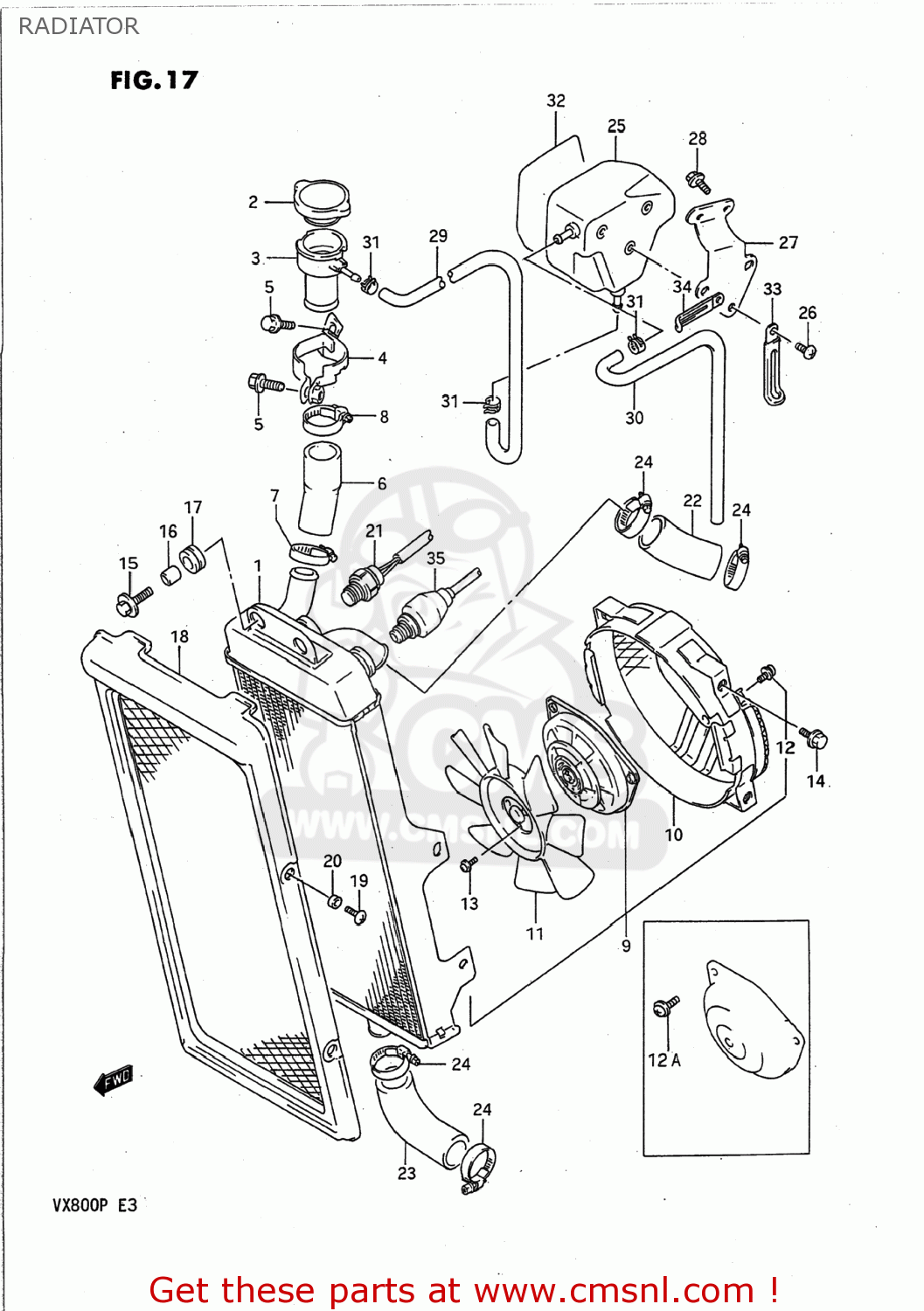

Radiator diagram VX800 1992 (N) USA (E03)
RADIATOR VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1771045C00
ref: 1
17710-45C10
RADIATOR ASSEMBLY,WATER
€ 761.00
2
1773020930
ref: 2
17730-08J00
CAP,RADIATOR 1.1
€ 40.00
3
1779145C00
ref: 3
CONDUCTION,RADIATOR
€ 28.50
4
1779345C00
ref: 4
BRACKET,CONDUCTION
€ 8.50
5
0151706164
ref: 5
01550-0616A
BOLT
€ 2.50
6
1785945C00
ref: 6
HOSE,CONDUCTION
€ 9.00
7
0940230502
ref: 7
09402-32511
CLAMP
€ 11.50
8
0940232502
ref: 8
CLAMP
€ 11.50
9-1
1780045C00
ref: 9-1
17800-45C01
FAN ASSEMBLY,RADIATOR
€ 474.50
9-2
1780045C01
ref: 9-2
FAN ASSEMBLY,RADIATOR
€ 474.50
10-1
1776045C00
ref: 10-1
17760-45C01
COVER,RADIATOR
€ 78.50
10-2
1776045C01
ref: 10-2
SHROUD
€ 78.50
11
1782045C00
ref: 11
FAN
€ 51.50
12
0211275105
ref: 12
SCREW
€ 1.50
12A
1780145C00
ref: 12A
BOLT
€ 2.00
13
1780105A00
ref: 13
02112-0406B
BOLT
€ 2.00
14
0151706108
ref: 14
01550-06107
BOLT
€ 2.50
15
0911606131
ref: 15
BOLT(6X25)
€ 2.00
16
0918006030
ref: 16
09180-06310
SPACER (6.8X10X10)
€ 2.00
17
0932010015
ref: 17
CUSHION
€ 2.50
18
1776145C00
ref: 18
COVER COMP,RADIATOR
€ 73.50
19-1
0913906078
ref: 19-1
SCREW(6X10)
€ 3.00
19-2
0913906055
ref: 19-2
SCREW(6X10)
€ 2.50
19-3
0214206108
ref: 19-3
02142-06107
SCREW
€ 2.00
20
0918006102
ref: 20
SPACER (6.4X9X3.5)
€ 1.50
21
1768045C00
ref: 21
SWITCH,RADIATOR FAN
€ 80.00
22
1785145C00
ref: 22
HOSE,RADIATOR INLET
€ 9.50
23
1785245C00
ref: 23
HOSE,RADIATOR OUT
€ 11.50
24
0940230502
ref: 24
09402-32511
CLAMP
€ 11.50
25
1791145C00
ref: 25
17911-45C10
TANK,RESERVOIR
€ 88.50
26
0214206086
ref: 26
02142-0608A
SCREW
€ 1.50
27
1792045C00
ref: 27
BRACKET,RESERVOIR TANK
€ 6.00
28
0151706204
ref: 28
01550-0620A
BOLT 6X20
€ 2.50
29
1798145C00
ref: 29
HOSE,RESERVOIR TANK INLET
€ 19.50
30
1798245C00
ref: 30
17981-21810
HOSE,RESERVOIR TANK OVERFLOW
€ 19.50
31-1
0940108407
ref: 31-1
09401-08411
CLIP
€ 3.00
31-2
0940108405
ref: 31-2
09401-08411
CLIP
€ 2.50
32
1793045C00
ref: 32
EMBLEM,RESERVOIR TANK
€ 27.50
33
0940406403
ref: 33
09404-06432
CLAMP
€ 2.50
34
0940406401
ref: 34
09404-06432
CLAMP L:35
€ 2.50
35
3485003D00
ref: 35
SWITCH ASSY,WATER TEMP
€ 85.00
