VX800 1992 (N) USA (E03)

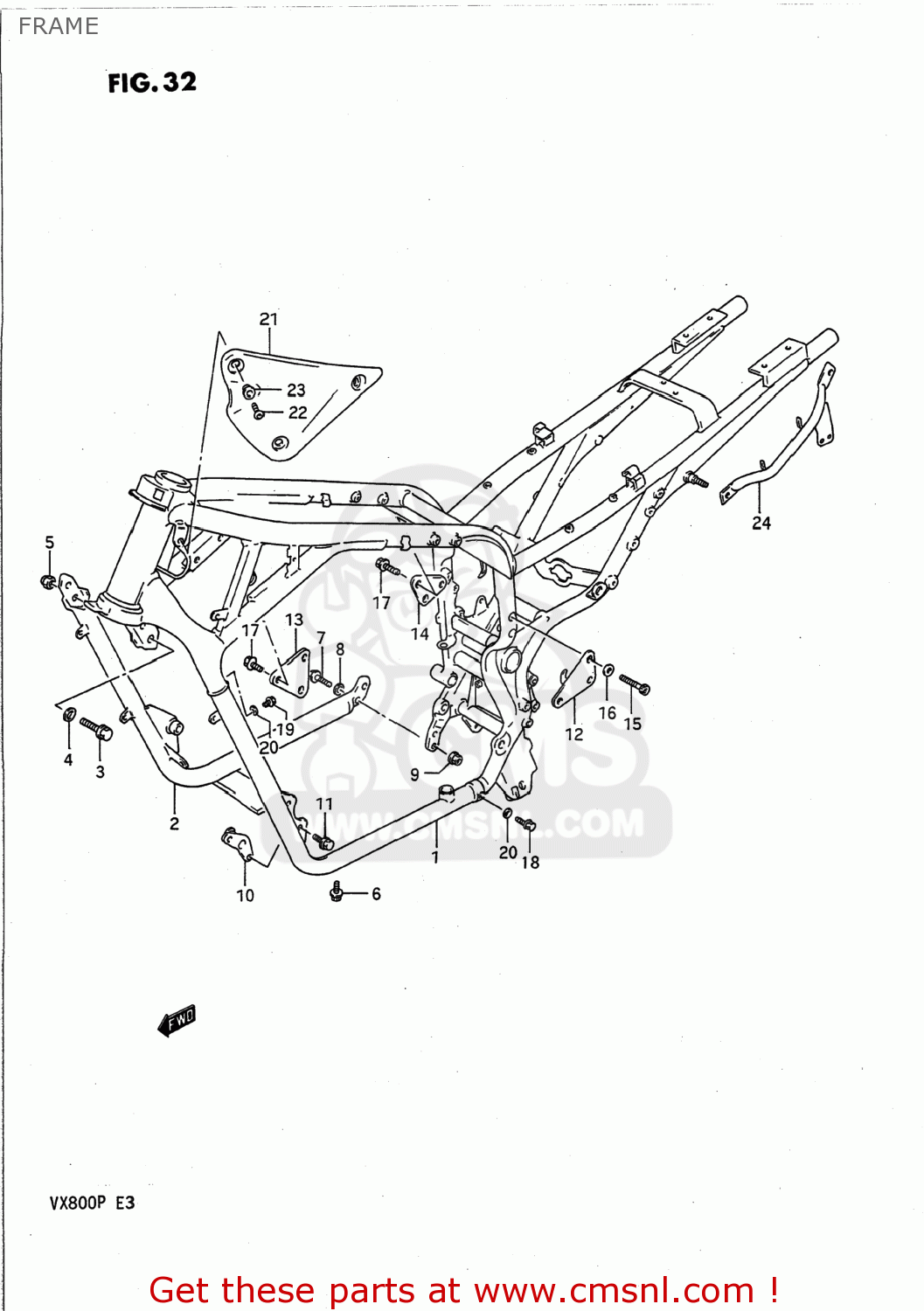

Frame diagram VX800 1992 (N) USA (E03)
FRAME VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
411004582015T
ref: 1-1
41100-45841-15T
FRAME
€ 1,271.50
1-2
411004584015T
ref: 1-2
41100-45841-15T
FRAME
€ 1,271.50
1-3
411004584115T
ref: 1-3
FRAME SET
€ 1,271.50
2
4114045C0015T
ref: 2
TUBE COMP,FRAME DOWN,LEFT
€ 186.00
3
0910310229
ref: 3
BOLT(10X32)
€ 4.50
4
0916410005
ref: 4
09164-10010
WASHER
€ 6.50
5
0915910093
ref: 5
NUT
€ 8.50
6
0712008165
ref: 6
07120-0816A
BOLT
€ 3.00
7
0910610019
ref: 7
BOLT(10X33)
€ 4.00
8
0916410005
ref: 8
09164-10010
WASHER
€ 6.50
9
0831931105
ref: 9
08319-3110A
NUT 10MM
€ 3.00
10-1
4192045C0115T
ref: 10-1
41920-45C02
PLATE,ENGINE MOUNTING
€ 26.00
10-2
4192045C02
ref: 10-2
PLATE,ENGINE MOUNTING NO
€ 26.00
11
0151708205
ref: 11
01550-0820A
BOLT
€ 3.00
12-1
4195045C0015T
ref: 12-1
41950-45C01
PLATE,ENGINE MOUNTING
€ 27.50
12-2
4195045C01
ref: 12-2
PLATE,ENGINE MOUNTING NO
€ 27.50
12-3
4195045C1015T
ref: 12-3
41950-45C11
PLATE COMP,ENGINE MOUNTING
€ 27.50
12-4
4195045C11
ref: 12-4
PLATE,ENGINE MOUNTING NO
€ 27.50
12-5
4196045C0015T
ref: 12-5
41960-45C01
PLATE,ENGINE MOUNTING
€ 17.50
12-6
4196045C01
ref: 12-6
PLATE,ENGINE MOUNTING NO
€ 17.50
13-1
4197045C0015T
ref: 13-1
41970-45C01
PLATE,ENGINE MOUNTING
€ 22.50
13-2
4197045C01
ref: 13-2
PLATE,ENGINE MOUNTING NO
€ 22.50
13-3
4198045C0015T
ref: 13-3
41980-45C01
PLATE,ENGINE MOUNTING
€ 21.00
13-4
4198045C01
ref: 13-4
PLATE,ENGINE MOUNTING NO
€ 21.00
14-1
4189045C0015T
ref: 14-1
41890-45C01
PLATE,ENGINE MOUNTING NO
€ 22.00
14-2
4189045C01
ref: 14-2
PLATE,ENGINE MOUNTING NO
€ 22.00
14-3
4199045C0015T
ref: 14-3
41990-45C01
PLATE,ENGINE MOUNTING
€ 22.00
14-4
4199045C01
ref: 14-4
PLATE,ENGINE MOUNTING NO
€ 22.00
15
0711008405
ref: 15
07130-0840B
BOLT
€ 3.00
16
0916408015
ref: 16
WASHER
€ 3.00
17-1
0712008165
ref: 17-1
07120-0816A
BOLT
€ 3.00
17-2
0712008166
ref: 17-2
07120-0816A
BOLT
€ 2.50
18
0151706108
ref: 18
01550-06107
BOLT
€ 2.50
19
0936006015
ref: 19
09360-06015-XC0
UNION
€ 3.00
20
0916806004
ref: 20
GASKET(6.2X11X1).2 (NAS)
€ 1.50
21-1
4751145C00
ref: 21-1
COVER,FRAME HEAD,RIGHT
€ 22.00
21-2
4752245C00
ref: 21-2
COVER,FRAME HEAD,LEFT
€ 22.00
22
0913905025
ref: 22
SCREW(5X14)
€ 2.00
23
0916105017
ref: 23
WASHER(5.2X14X1.5)
€ 3.00
24-1
4397045C10
ref: 24-1
GRIP COMP,REAR,RIGHT
€ 39.00
24-2
4398045C10
ref: 24-2
GRIP COMP,REAR,LEFT
€ 0.00
