WIRING HARNESS
VX800 1992 (N) USA (E03)

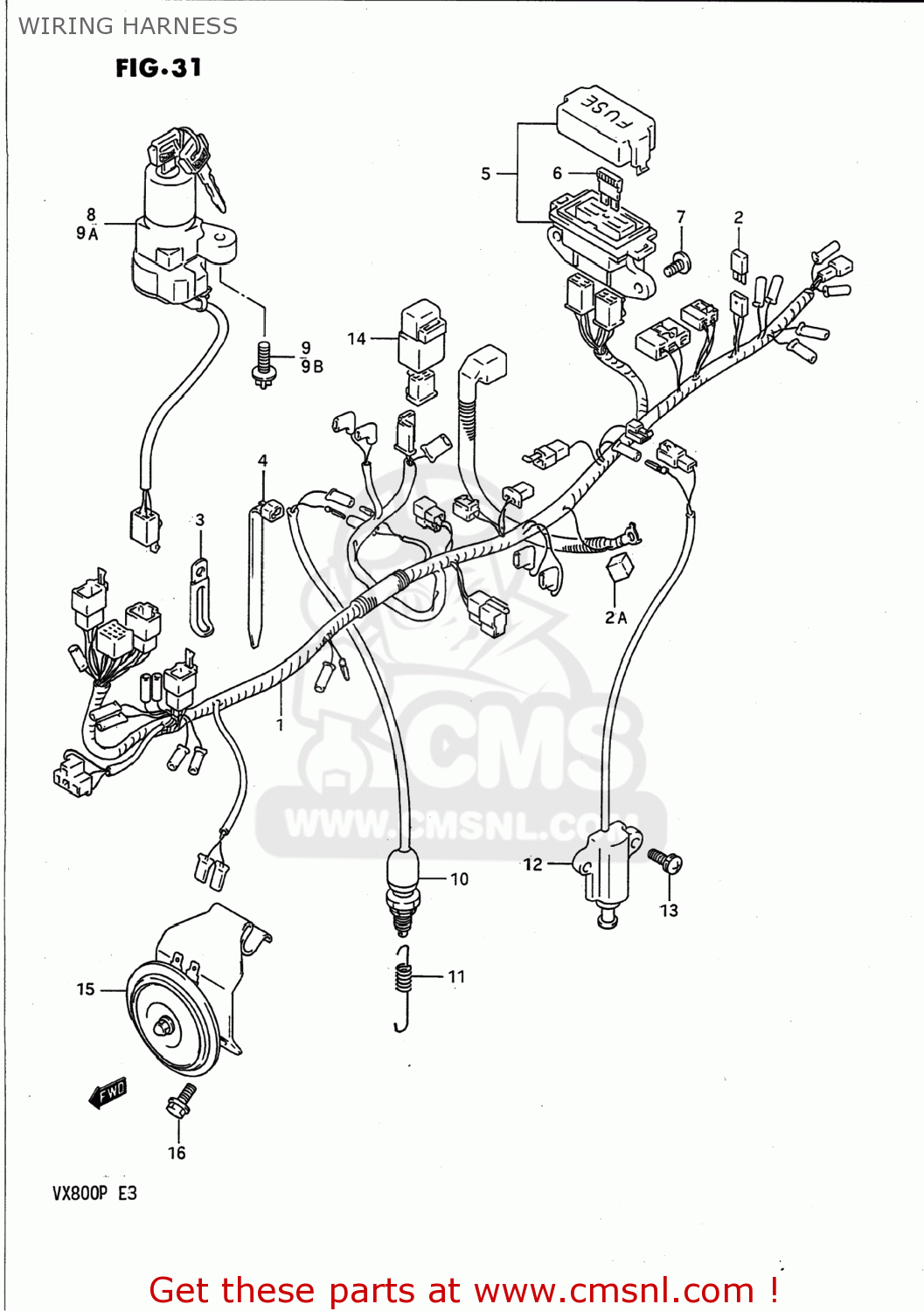

Wiring harness diagram VX800 1992 (N) USA (E03)
WIRING HARNESS VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661045C20
ref: 1-1
HARNESS,WIRING
€ 163.00
1-2
3661045C60
ref: 1-2
HARNESS,WIRING
€ 163.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
2A
3362427A00
ref: 2A
33624-43500
CAP,BATTERY PLUS
€ 3.50
3-1
0940406402
ref: 3-1
09404-06432
CLAMP
€ 2.50
3-2
0940406401
ref: 3-2
09404-06432
CLAMP L:35
€ 2.50
3-3
0940406403
ref: 3-3
09404-06432
CLAMP
€ 2.50
3-4
0940406419
ref: 3-4
09404-06435
CLAMP
€ 2.50
3-5
0940408402
ref: 3-5
09404-08420
CLAMP
€ 3.50
3-6
0940408403
ref: 3-6
09404-08420
CLAMP
€ 3.50
4-1
0940710404
ref: 4-1
CLAMP(L:100)
€ 4.00
4-2
0940714403
ref: 4-2
CLAMP(L:125)
€ 2.50
4-3
0940712402
ref: 4-3
CLAMP(L:120)
€ 3.00
4-4
0940718402
ref: 4-4
CLAMP(L:165)
€ 2.50
5
3674034C01
ref: 5
36740-10D10
BOX ASSEMBLY,FUSE
€ 58.50
6-1
0948110101
ref: 6-1
FUSE(10A)
€ 2.50
6-2
0948125101
ref: 6-2
09481-25103
FUSE (25A)
€ 2.50
7
0214206126
ref: 7
02142-0612A
SCREW
€ 2.00
8
3710017C00
ref: 8
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
9
0913906026
ref: 9
SCREW(6X18)
€ 2.50
9B
0913906026
ref: 9B
SCREW(6X18)
€ 2.50
9A-1
3710017C01
ref: 9A-1
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
9A-2
3710017C02
ref: 9A-2
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
9A-3
3710033D00
ref: 9A-3
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
10-1
3774004A10
ref: 10-1
SWITCH ASSY,STOP LAMP
€ 22.00
10-2
3774045D00
ref: 10-2
37740-31D00
SWITCH ASSY,STOP LAMP
€ 20.50
11
0944306043
ref: 11
09443-06073
SPRING
€ 2.50
12
3784020A11
ref: 12
37840-44X50
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
13
0211276165
ref: 13
02112-7616A
VIS
€ 2.00
14
3874024B10
ref: 14
38740-24X50
RELAY ASSEMBLY
€ 37.50
15
3850045C00
ref: 15
38500-45C01
HORN ASSEMBLY
€ 68.50
16-1
0151706128
ref: 16-1
01550-06127
BOLT
€ 2.50
16-2
0113406125
ref: 16-2
01570-0612A
BOLT ,6X12
€ 1.50
17
3714603A80
ref: 17
37146-26D10
KEY,BLANK
€ 41.50
