RIGHT HANDLE SWITCH
VX800 1992 (N) USA (E03)

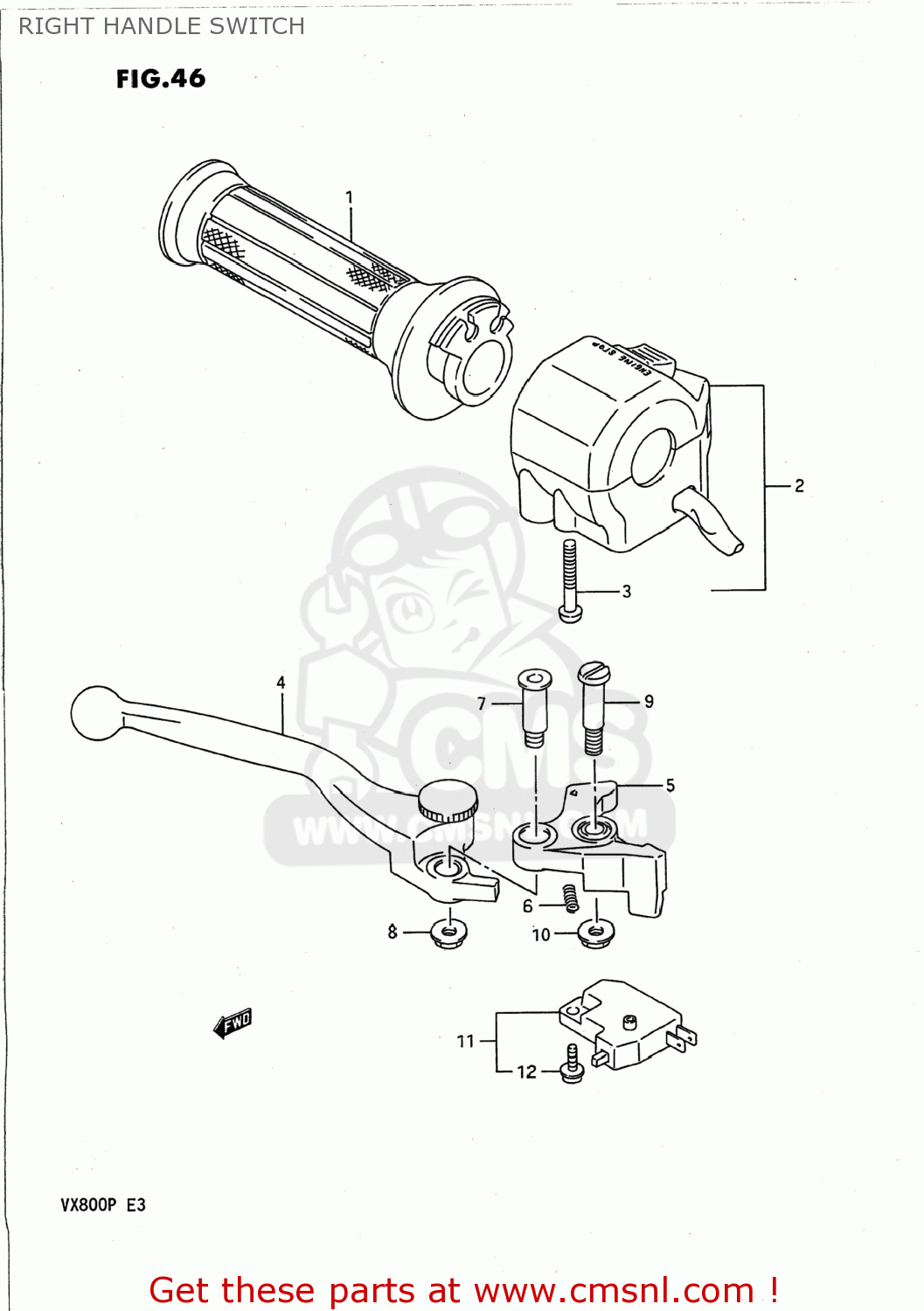

Right handle switch diagram VX800 1992 (N) USA (E03)
RIGHT HANDLE SWITCH VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711049501
ref: 1
GRIP,THROTTLE
€ 26.00
2-1
3720045C10
ref: 2-1
37200-45C12
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 92.50
2-2
3720045C20
ref: 2-2
37200-45C22
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 110.00
3
0211205455
ref: 3
02112-0545B
SCREW, 5X45
€ 4.00
4
5742032C00
ref: 4
LEVER,ADJUST
€ 39.50
5
5743040C00
ref: 5
57430-40C10
KNOCKER
€ 51.00
6
5743832C00
ref: 6
SPRING
€ 4.00
7
5743732C00
ref: 7
57437-32C01
BOLT,LEVER
€ 6.50
8
0831931065
ref: 8
08319-3106A
NUT
€ 2.50
9
5743117C00
ref: 9
BOLT,LEVER PIVOT
€ 8.00
10
0831616064
ref: 10
08316-1006B
NUT 6MM
€ 2.50
11
5746017C00
ref: 11
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
12
5746517C00
ref: 12
SCREW
€ 1.50
