CYLINDER HEAD (FRONT)
VX800 1992 (N) USA (E03)

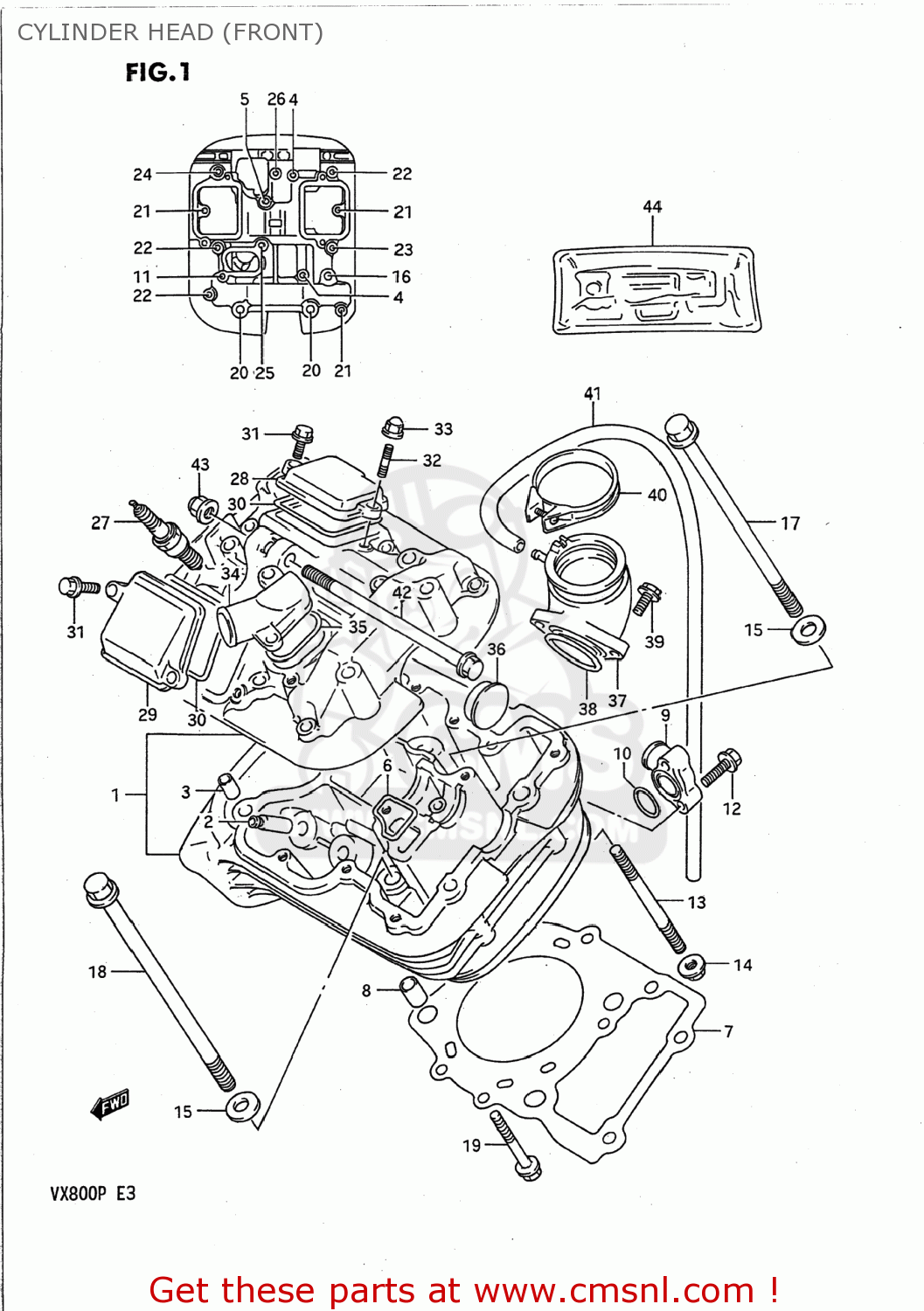

Cylinder head (front) diagram VX800 1992 (N) USA (E03)
CYLINDER HEAD (FRONT) VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110145C00
ref: 1
HEAD ASSY,CYLINDER FRONT
€ 748.00
2
1111538A71
ref: 2
11115-41F70
GUIDE,VALVE
€ 18.50
3
0920611011
ref: 3
09206-11004
PIN(11X14)
€ 6.00
4
0910306101
ref: 4
BOLT(6X50)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1112338A00
ref: 6
GASKET,CYLINDER HEAD WATER (NAS)
€ 2.50
7
1114145C00
ref: 7
GASKET,CYLINDER HEAD FR (NAS)
€ 51.50
8
0920613001
ref: 8
04211-13189
PIN
€ 2.50
9-1
1116945C00
ref: 9-1
11169-45C10
UNION,CYLINDER HEAD WATER
€ 28.50
9-2
1116945C10
ref: 9-2
UNION,CYLINDER HEAD WATER
€ 28.50
10
0928018004
ref: 10
O RING(D:2.4,ID:17.8)
€ 5.50
11
0151706207
ref: 11
01550-06207
BOLT 6X20
€ 2.50
12
0154706257
ref: 12
BOLT
€ 2.50
13
0910808144
ref: 13
BOLT,STUD
€ 4.50
14
0831616088
ref: 14
08316-10087
NUT
€ 2.50
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
€ 2.50
16
0910308040
ref: 16
BOLT(8X140)
€ 4.00
17
0910310133
ref: 17
BOLT(10X155)
€ 7.50
18
0910310134
ref: 18
BOLT(10X165)
€ 7.50
19
0151706408
ref: 19
01550-06407
BOLT
€ 2.50
20
0910308246
ref: 20
09103-08501
BOLT
€ 9.00
21
0151706257
ref: 21
01550-06257
BOLT 6X25
€ 2.50
22
0151706307
ref: 22
01550-06307
BOLT
€ 2.00
23
0712006308
ref: 23
07120-06307
BOLT
€ 2.50
24
0151706408
ref: 24
01550-06407
BOLT
€ 2.50
25
0910306102
ref: 25
BOLT(6X55)
€ 2.50
26
0910306101
ref: 26
BOLT(6X50)
€ 2.00
27-1
0948200334
ref: 27-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
27-2
0948200335111
ref: 27-2
09482-00335
SPARK PLUG X24EPR-U9
€ 4.00
27-3
0948200354
ref: 27-3
PLUG,SPARK(DPR7EA-9)
€ 4.00
27-4
0948200355111
ref: 27-4
09482-00354
SPARK PLUG X22EPR-U9
€ 4.00
27-5
0948200330
ref: 27-5
PLUG,SPARK(DPR9EA-9)
€ 4.00
27-6
0948200331111
ref: 27-6
09482-00331
SPARK PLUG X27EPR-U9
€ 4.00
28-1
1117545C00
ref: 28-1
11175-45C01
CAP,INSPECTION,INTAKE
€ 10.00
28-2
1117538A10
ref: 28-2
11175-38A11
CAP,INSP.INT
€ 14.50
29-1
1117645C00
ref: 29-1
11176-45C01
CAP,INSPECTION,EXHAUST
€ 14.50
29-2
1117638A10
ref: 29-2
11176-38A11
CAP,INSPECTION,EXHAUST
€ 14.50
30
1117738A00
ref: 30
GASKET,INSPECTION CAP (NAS)
€ 5.00
31
0154706207
ref: 31
BOLT
€ 2.50
32
0142106168
ref: 32
01421-0616A
STUD 6X16
€ 2.00
33
0831321067
ref: 33
08313-20067
NUT
€ 2.00
34-1
1118145C00
ref: 34-1
11181-45C10
UNION,WATER OUTLET
€ 33.00
34-2
1118145C10
ref: 34-2
UNION,WATER OUTLET
€ 33.00
35
1118238A00
ref: 35
GASKET,WATER OUTLET UNION (NAS)
€ 2.00
36
0924130004
ref: 36
PLUG(OD:30)
€ 6.50
37
1311045C00
ref: 37
13101-45C00
PIPE,INTAKE
€ 98.00
38
0928040003
ref: 38
09280-40010
O-RING (D:2.4 ID:39.7)
€ 3.50
39
0151706164
ref: 39
01550-0616A
BOLT
€ 2.50
40
1317005A00
ref: 40
09402-52501
CLAMP,PIPE
€ 9.00
41
093525090300A
ref: 41
HOSE
€ 28.50
42
0910308268
ref: 42
BOLT,ENGINE MOUNTING (8X150)
€ 4.50
43
0915908064
ref: 43
09159-08049
NUT (8MM)
€ 7.00
44-1
1140245810
ref: 44-1
11402-45818
GASKET SET (NAS)
€ 272.50
44-2
1140245811
ref: 44-2
11402-45818
GASKET SET (NAS)
€ 272.50
